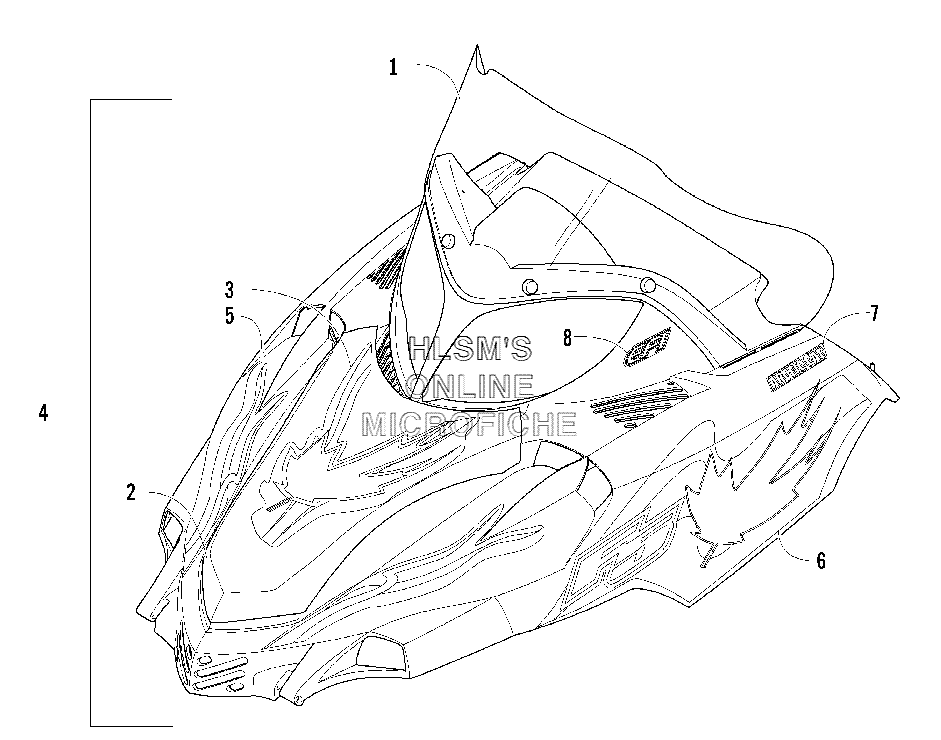

HOOD AND WINDSHIELD ASSEMBLY (CANADIAN) для Arctic Cat FIRECAT 700 EFI (RED) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    2606-834 WINDSHIELD
    WINDSHIELD
  • 2
    1718-327 COVER, HOOD (RED) (INC. 3)
    COVER, HOOD (RED) (INC. 3)
  • 3
    5611-063 DECAL, HOOD (CENTER) (RED)
    DECAL, HOOD (CENTER) (RED)
  • 4
    1718-292 HOOD W/DECALS (RED) (INC. 5, 7)
    HOOD W/DECALS (RED) (INC. 5, 7)
  • 4
    1718-295 HOOD W/DECALS (RED) (INC. 5, 8) (700 EFI RED)
    HOOD W/DECALS (RED) (INC. 5, 8) (700 EFI RED)
  • 5
    5611-054 DECAL, HOOD (FRONT) (RIGHT) (RED)
    DECAL, HOOD (FRONT) (RIGHT) (RED)
  • 5
    5611-055 DECAL, HOOD (FRONT) (LEFT) (RED)
    DECAL, HOOD (FRONT) (LEFT) (RED)
  • 6
    5611-032 DECAL, HOOD (LOWER/RIGHT)
    DECAL, HOOD (LOWER/RIGHT)
  • 6
    5611-033 DECAL, HOOD (LOWER/LEFT)
    DECAL, HOOD (LOWER/LEFT)
  • 6
    5611-030 DECAL, HOOD (LOWER/RIGHT) (700 EFI)
    DECAL, HOOD (LOWER/RIGHT) (700 EFI)
  • 6
    5611-031 DECAL, HOOD (LOWER/LEFT) (700 EFI)
    DECAL, HOOD (LOWER/LEFT) (700 EFI)
  • 7
    5611-042 DECAL, HOOD, VENT (RED)
    DECAL, HOOD, VENT (RED)
  • 8
    5611-050 DECAL, "EFI" (700 EFI RED)
    DECAL, "EFI" (700 EFI RED)
