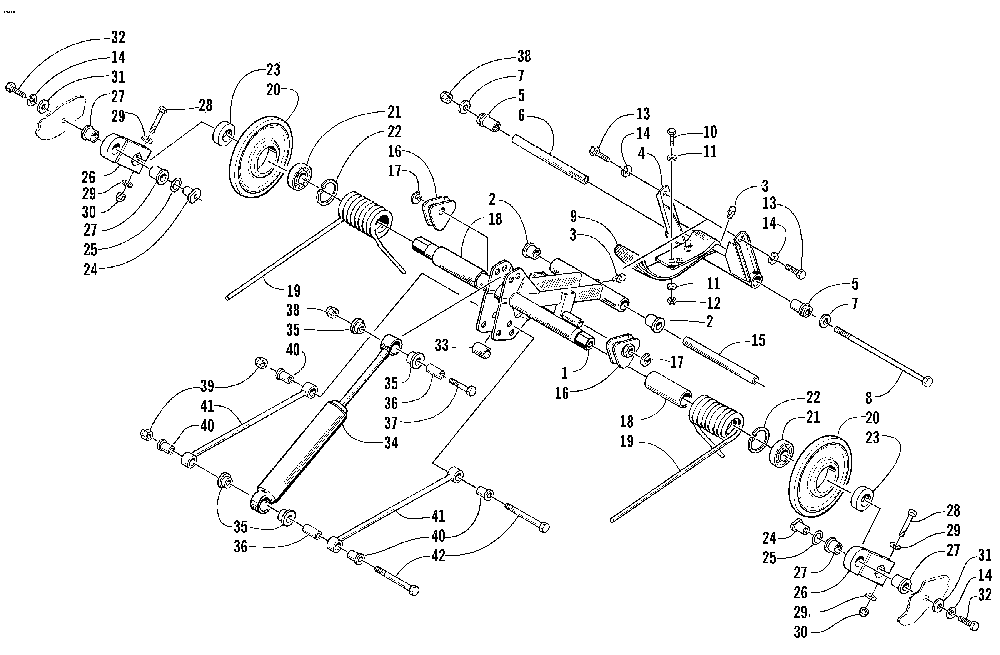

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK (INTERNATIONAL) - 2003 года выпуска
-
№АртикулНазвание
-
10704-676 ARM, IDLER (INC. 2 AND ONE NO. 3)ARM, IDLER (INC. 2 AND ONE NO. 3)
-
21604-100 BUSHING, FLAREDBUSHING, FLARED
-
30623-922 FITTING, GREASEFITTING, GREASE
-
40704-678 ARM (REAR) (INC. ONE NO. 3)ARM (REAR) (INC. ONE NO. 3)
-
51604-307 AXLE, SERRATEDAXLE, SERRATED
-
61604-974 TUBE, AXLETUBE, AXLE
-
78050-277 WASHERWASHER
-
80623-971 SCREW, CAPSCREW, CAP
-
91604-863 STRAP, LIMITERSTRAP, LIMITER
-
108002-042 SCREW, CAPSCREW, CAP
-
110623-184 WASHERWASHER
-
128040-366 NUT, LOCKNUT, LOCK
-
138002-223 SCREW, CAPSCREW, CAP
-
148051-277 WASHER, LOCKWASHER, LOCK
-
151604-975 AXLE, ALUMINUMAXLE, ALUMINUM
-
161604-204 BLOCK, SPRING ADJUSTER (RIGHT)BLOCK, SPRING ADJUSTER (RIGHT)
-
161604-205 BLOCK, SPRING ADJUSTER (LEFT)BLOCK, SPRING ADJUSTER (LEFT)
-
170623-138 RING, RETAINERRING, RETAINER
-
180114-254 SLEEVE, SPRINGSLEEVE, SPRING
-
190704-944 SPRING, SUSPENSION (RIGHT)SPRING, SUSPENSION (RIGHT)
-
190704-945 SPRING, SUSPENSION (LEFT)SPRING, SUSPENSION (LEFT)
-
200604-051 WHEEL, IDLER (INC. 21, 22)WHEEL, IDLER (INC. 21, 22)
-
210107-598 BEARINGBEARING
-
220123-798 RING, RETAININGRING, RETAINING
-
231604-507 SPACER, PIVOT IDLER ARMSPACER, PIVOT IDLER ARM
-
241604-181 AXLE (POWDER METAL)AXLE (POWDER METAL)
-
251604-187 WASHER, PIVOT IDLER ARMWASHER, PIVOT IDLER ARM
-
260704-014 ARM, PIVOT IDLER (INC. 27)ARM, PIVOT IDLER (INC. 27)
-
271604-202 BUSHING, FLAREDBUSHING, FLARED
-
288002-138 SCREW, CAPSCREW, CAP
-
298050-242 WASHERWASHER
-
308040-426 NUT, LOCKNUT, LOCK
-
310623-044 WASHERWASHER
-
328002-224 SCREW, CAPSCREW, CAP
-
330704-854 SPACER, SHOCK LINKSPACER, SHOCK LINK
-
342604-200 SHOCK ABSORBER ARM (REAR) (INC. 35, 36)SHOCK ABSORBER ARM (REAR) (INC. 35, 36)
-
342604-382 SHOCK ABSORBER ARM (REAR) (INC. 35, 36) (INTERNATIONAL)SHOCK ABSORBER ARM (REAR) (INC. 35, 36) (INTERNATIONAL)
-
350604-310 BUSHING, SHOCKBUSHING, SHOCK
-
361604-185 SLEEVE, SHOCKSLEEVE, SHOCK
-
378002-227 SCREW, CAPSCREW, CAP
-
388040-486 NUT, LOCKNUT, LOCK
-
398041-486 NUT, LOCKNUT, LOCK
-
401604-498 AXLE, LINK, FLANGEDAXLE, LINK, FLANGED
-
410704-929 LINK REAR SHOCKLINK REAR SHOCK
-
428002-233 SCREW, CAPSCREW, CAP
