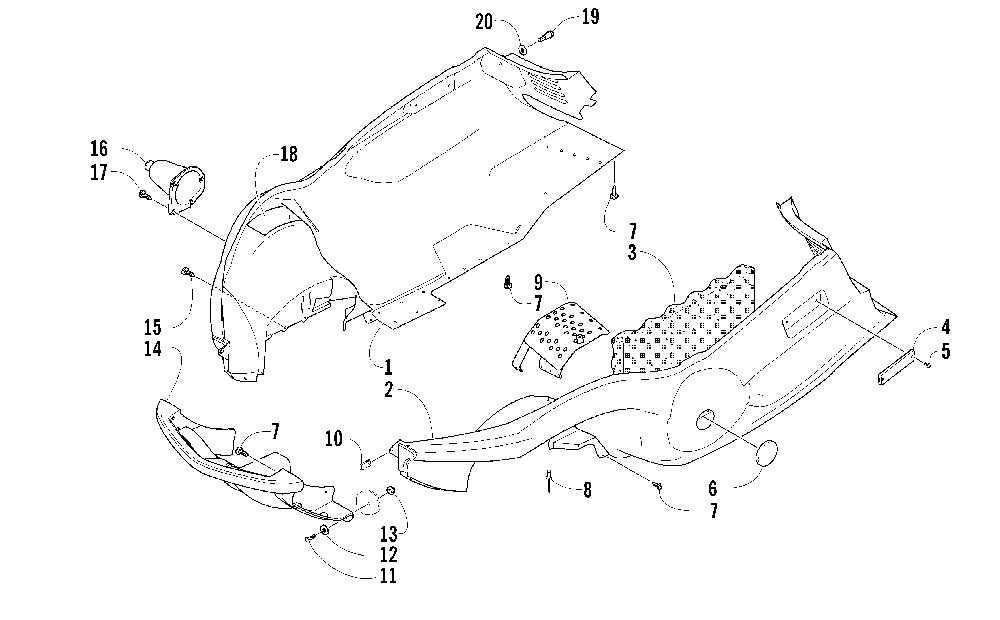

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK (INTERNATIONAL) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    2606-540 BELLY PAN (RIGHT)
    BELLY PAN (RIGHT)
  • 1
    2706-192 BELLY PAN (RIGHT) (INTERNATIONAL)
    BELLY PAN (RIGHT) (INTERNATIONAL)
  • 2
    2606-541 BELLY PAN (LEFT)
    BELLY PAN (LEFT)
  • 3
    0617-315 FOAM, BELLY PAN (LEFT)
    FOAM, BELLY PAN (LEFT)
  • 4
    0606-526 REFLECTOR (FRONT) (AMBER)
    REFLECTOR (FRONT) (AMBER)
  • 5
    0623-269 CLIP, RETAINING
    CLIP, RETAINING
  • 6
    0623-600 PLUG, BELLY PAN
    PLUG, BELLY PAN
  • 7
    0623-784 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 8
    8061-508 RIVET
    RIVET
  • 9
    0745-211 BRACKET, GUARD
    BRACKET, GUARD
  • 10
    0623-427 NUT, U
    NUT, U
  • 11
    8002-041 SCREW, CAP
    SCREW, CAP
  • 12
    8050-222 WASHER
    WASHER
  • 13
    8040-366 NUT, LOCK
    NUT, LOCK
  • 14
    1606-949 BUMPER (FRONT)
    BUMPER (FRONT)
  • 15
    0623-797 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 16
    0605-332 BOOT, STEERING (RIGHT)
    BOOT, STEERING (RIGHT)
  • 16
    0605-333 BOOT, STEERING (LEFT)
    BOOT, STEERING (LEFT)
  • 17
    0623-564 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 18
    0619-206 TAPE, FOIL
    TAPE, FOIL
  • 19
    0623-855 SCREW, SHOULDER
    SCREW, SHOULDER
  • 20
    8050-217 WASHER
    WASHER
