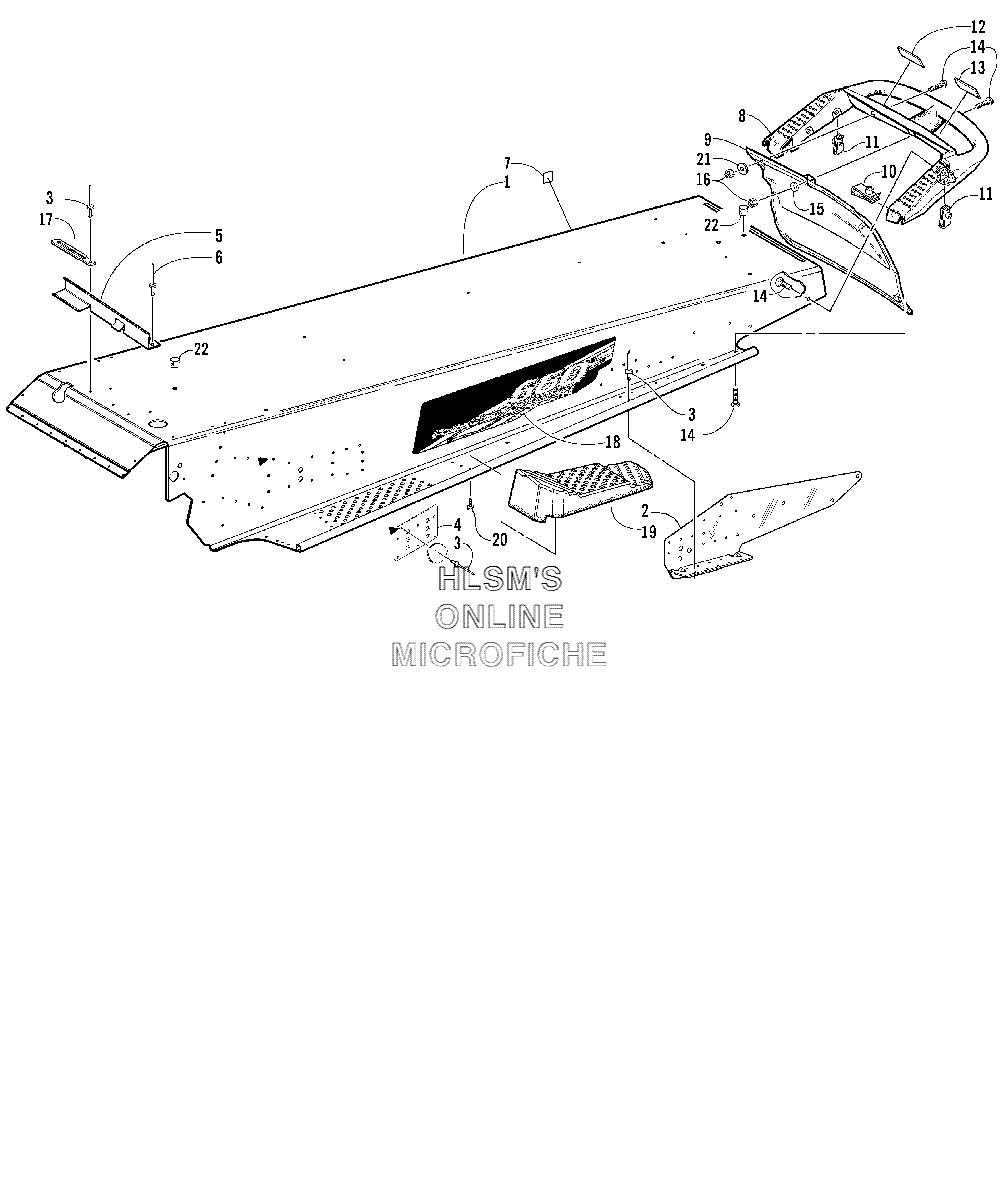

TUNNEL AND REAR BUMPER для Arctic Cat 4-STROKE TOURING - 2003 года выпуска
-
№АртикулНазвание
-
10718-950 TUNNEL ASSY (INC. 2, 3)TUNNEL ASSY (INC. 2, 3)
-
21706-032 BRACKET, SUSPENSION MOUNTING (RIGHT)BRACKET, SUSPENSION MOUNTING (RIGHT)
-
21706-033 BRACKET, SUSPENSION MOUNTING (LEFT)BRACKET, SUSPENSION MOUNTING (LEFT)
-
30623-072 RIVET, SOLIDRIVET, SOLID
-
30123-418 RIVET, SOLIDRIVET, SOLID
-
38060-506 RIVETRIVET
-
42706-116 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
50707-704 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
60623-166 RIVETRIVET
-
70411-053 DECAL, CEDECAL, CE
-
81606-200 BUMPER (REAR)BUMPER (REAR)
-
91606-507 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
100623-427 NUT, UNUT, U
-
110623-771 NUT, UNUT, U
-
121611-567 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
131611-566 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
148017-580 SCREW, MACHINESCREW, MACHINE
-
158050-217 WASHERWASHER
-
168040-366 NUT, LOCKNUT, LOCK
-
173002-964 CLAMPCLAMP
-
184611-946 DECAL, TUNNEL (RIGHT)DECAL, TUNNEL (RIGHT)
-
184611-947 DECAL, TUNNEL (LEFT)DECAL, TUNNEL (LEFT)
-
191606-478 FOOTREST (REAR) (RIGHT)FOOTREST (REAR) (RIGHT)
-
191606-479 FOOTREST (REAR) (LEFT)FOOTREST (REAR) (LEFT)
-
200623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
210623-184 WASHERWASHER
-
220623-562 PLUG, HOLEPLUG, HOLE
