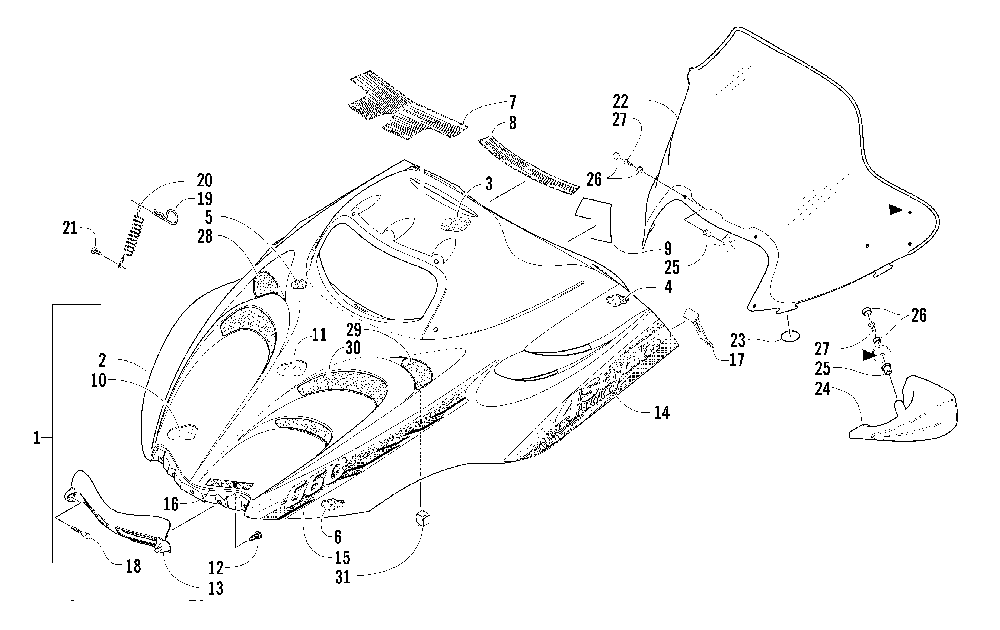

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat 4-STROKE TOURING - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    1718-244 HOOD W/DECALS (GREEN) (INC. 2, 16)
    HOOD W/DECALS (GREEN) (INC. 2, 16)
  • 2
    1718-275 HOOD W/O DECALS (GREEN) (INC. 3, 13)
    HOOD W/O DECALS (GREEN) (INC. 3, 13)
  • 3
    0717-166 FOAM, HOOD (UPPER/MIDDLE/RIGHT)
    FOAM, HOOD (UPPER/MIDDLE/RIGHT)
  • 4
    0717-140 FOAM, HOOD (REAR) (RIGHT)
    FOAM, HOOD (REAR) (RIGHT)
  • 4
    0717-141 FOAM, HOOD (REAR) (LEFT)
    FOAM, HOOD (REAR) (LEFT)
  • 5
    0717-138 FOAM, HOOD (MIDDLE)
    FOAM, HOOD (MIDDLE)
  • 6
    0717-146 FOAM, HOOD (FRONT) (RIGHT)
    FOAM, HOOD (FRONT) (RIGHT)
  • 6
    0717-147 FOAM, HOOD (FRONT) (LEFT)
    FOAM, HOOD (FRONT) (LEFT)
  • 7
    3611-485 DECAL, WARNING, GENERAL AND BRAKE
    DECAL, WARNING, GENERAL AND BRAKE
  • 8
    3611-970 DECAL, CAUTION, ENGINE/BATTERY/FUEL
    DECAL, CAUTION, ENGINE/BATTERY/FUEL
  • 9
    3611-580 DECAL REVERSE
    DECAL REVERSE
  • 10
    1606-938 FOIL, HOOD (RIGHT)
    FOIL, HOOD (RIGHT)
  • 10
    1606-939 FOIL, HOOD (LEFT)
    FOIL, HOOD (LEFT)
  • 11
    2606-935 FOIL, HOOD (CENTER)
    FOIL, HOOD (CENTER)
  • 12
    0623-797 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 13
    2606-454 HINGE, HOOD (GRAY)
    HINGE, HOOD (GRAY)
  • 14
    4611-792 DECAL, HOOD (LOWER/RIGHT)
    DECAL, HOOD (LOWER/RIGHT)
  • 14
    4611-793 DECAL, HOOD (LOWER/LEFT)
    DECAL, HOOD (LOWER/LEFT)
  • 15
    4611-794 DECAL, HOOD (FRONT) (LEFT)
    DECAL, HOOD (FRONT) (LEFT)
  • 15
    4611-795 DECAL, HOOD (FRONT) (RIGHT)
    DECAL, HOOD (FRONT) (RIGHT)
  • 16
    4611-799 DECAL, "ARCTIC CAT", HOOD
    DECAL, "ARCTIC CAT", HOOD
  • 17
    1606-067 STRAP, HOLD, DOWN
    STRAP, HOLD, DOWN
  • 18
    0623-690 SCREW, MACHINE
    SCREW, MACHINE
  • 19
    0623-805 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 20
    2606-247 CABLE, HOOD
    CABLE, HOOD
  • 21
    0623-057 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 22
    2606-366 WINDSHIELD
    WINDSHIELD
  • 23
    0616-032 O-RING
    O-RING
  • 24
    2639-477 MIRROR, KIT (INC. SIX NO. 25, 27)
    MIRROR, KIT (INC. SIX NO. 25, 27)
  • 25
    0623-845 NUT, EXPANSION
    NUT, EXPANSION
  • 26
    0124-054 SNAP CAP W/WASHER
    SNAP CAP W/WASHER
  • 27
    0623-902 SCREW, MACHINE
    SCREW, MACHINE
  • 28
    2706-194 SCREEN, HOOD (RIGHT) (SILVER) (INTERNATIONAL)
    SCREEN, HOOD (RIGHT) (SILVER) (INTERNATIONAL)
  • 29
    2706-195 SCREEN, HOOD (UPPER/LEFT) (SILVER) (INTERNATIONAL)
    SCREEN, HOOD (UPPER/LEFT) (SILVER) (INTERNATIONAL)
  • 30
    2606-325 SCREEN, HOOD (LEFT) (SILVER) (INTERNATIONAL)
    SCREEN, HOOD (LEFT) (SILVER) (INTERNATIONAL)
  • 31
    0123-394 CLIP, RETAINING (INTERNATIONAL)
    CLIP, RETAINING (INTERNATIONAL)
