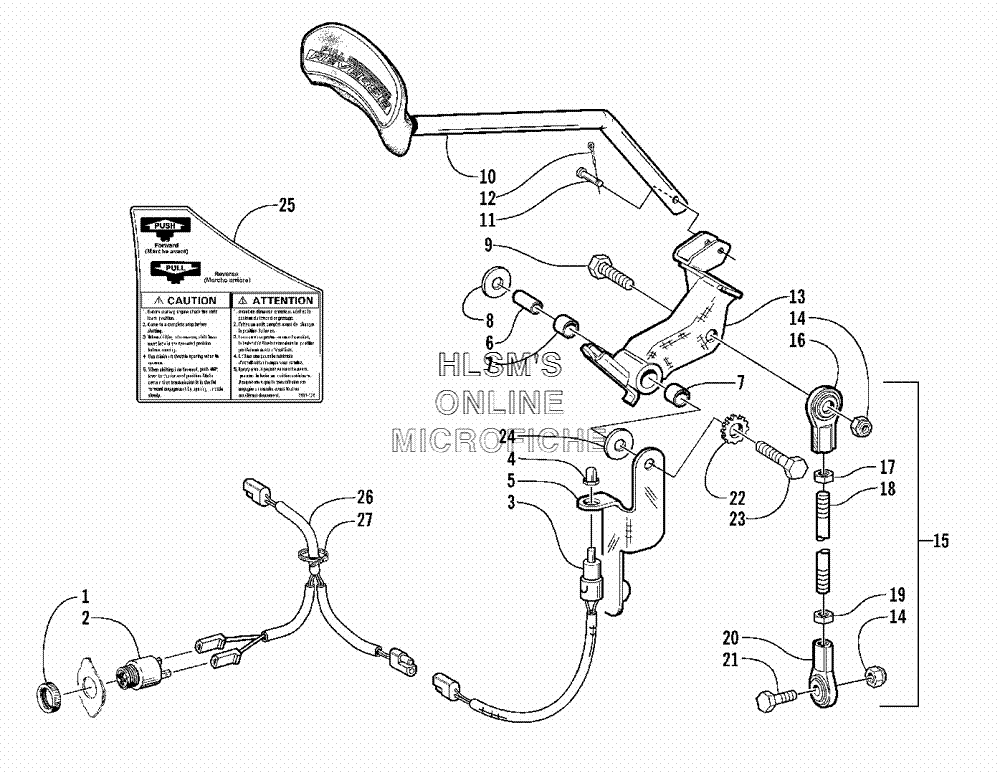

REVERSE SHIFT LEVER ASSEMBLY (OPTIONAL) для Arctic Cat ZRT 600 - 2002 года выпуска

  • №
    Артикул
    Название
  • -
    1639-005 REVERSE SHIFT OPTIONAL KIT
    REVERSE SHIFT OPTIONAL KIT
  • 1
    0630-017 RING, RETAINING
    RING, RETAINING
  • 2
    0630-010 ALARM, REVERSE
    ALARM, REVERSE
  • 3
    0630-011 SWITCH, ALARM
    SWITCH, ALARM
  • 4
    0630-013 BOOT, SWITCH
    BOOT, SWITCH
  • 5
    0602-986 BRACKET, REVERSE SWITCH
    BRACKET, REVERSE SWITCH
  • 6
    0602-853 AXLE, SHIFT PIVOT
    AXLE, SHIFT PIVOT
  • 7
    0602-844 BUSHING
    BUSHING
  • 8
    8050-252 WASHER
    WASHER
  • 9
    8002-137 SCREW, CAP
    SCREW, CAP
  • 10
    0602-978 LEVER, REVERSE
    LEVER, REVERSE
  • 11
    0623-641 PIN, CLEVIS
    PIN, CLEVIS
  • 12
    0117-868 PIN, COTTER
    PIN, COTTER
  • 13
    0702-349 SHIFT PIVOT (INC 7)
    SHIFT PIVOT (INC 7)
  • 14
    8040-426 NUT, LOCK
    NUT, LOCK
  • 15
    0702-347 LINKAGE, SHIFTING - ASSEMBLY (INC 16-20)
    LINKAGE, SHIFTING - ASSEMBLY (INC 16-20)
  • 16
    0602-305 ROD END - LEFT
    ROD END - LEFT
  • 17
    0623-260 NUT, JAM - LEFT
    NUT, JAM - LEFT
  • 18
    0602-982 ROD, LINKAGE - SHIFTING
    ROD, LINKAGE - SHIFTING
  • 19
    0123-144 NUT, JAM - RIGHT
    NUT, JAM - RIGHT
  • 20
    0602-322 ROD END - RIGHT
    ROD END - RIGHT
  • 21
    8002-132 SCREW, CAP
    SCREW, CAP
  • 22
    8053-242 WASHER, LOCK - EXTERNAL TOOTH
    WASHER, LOCK - EXTERNAL TOOTH
  • 23
    8002-140 SCREW, CAP
    SCREW, CAP
  • 24
    8050-247 WASHER
    WASHER
  • 25
    3611-026 DECAL, CAUTION - REVERSE
    DECAL, CAUTION - REVERSE
  • 25
    3611-364 DECAL, CAUTION - REVERSE
    DECAL, CAUTION - REVERSE
  • 25
    3611-580 DECAL, CAUTION - REVERSE
    DECAL, CAUTION - REVERSE
  • 26
    0686-120 HARNESS, WIRING - ALARM
    HARNESS, WIRING - ALARM
  • 27
    0123-788 CABLE TIE - 7 IN.
    CABLE TIE - 7 IN.
