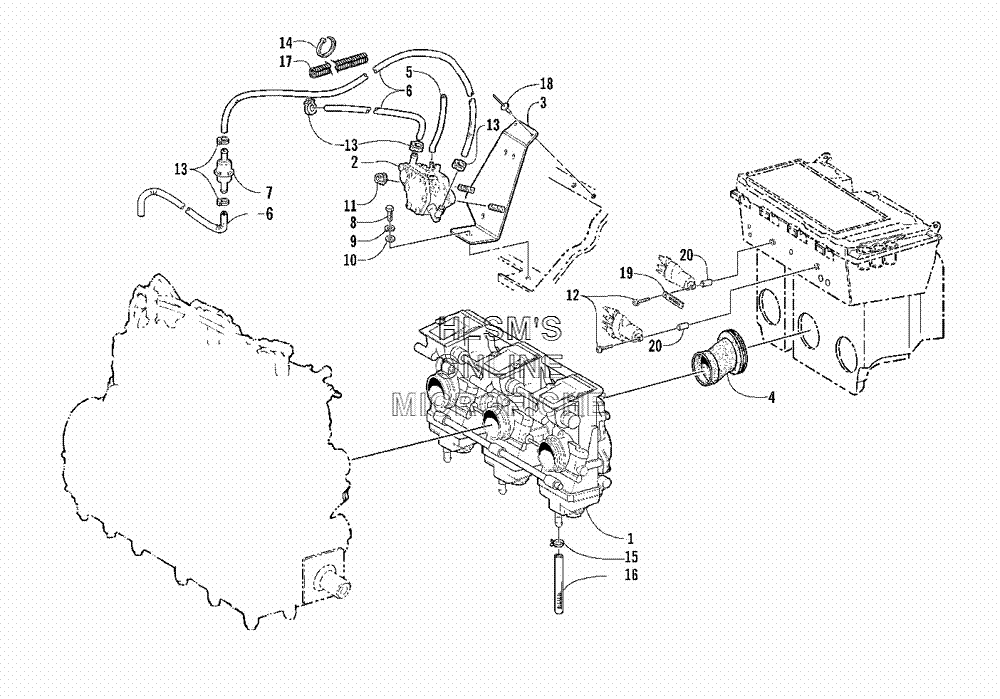

CARBURETOR AND FUEL PUMP ASSEMBLY для Arctic Cat ZRT 600 - 2002 года выпуска
-
№АртикулНазвание
-
11670-146 CARBURETOR - TM36-C60CARBURETOR - TM36-C60
-
21670-161 PUMP, FUELPUMP, FUEL
-
30770-492 PLATE, MOUNTINGPLATE, MOUNTING
-
40670-868 BOOT, CARBURETORBOOT, CARBURETOR
-
50610-007 HOSE, IMPULSE - 25 FTHOSE, IMPULSE - 25 FT
-
60610-015 HOSE, GASLINE - 100 FTHOSE, GASLINE - 100 FT
-
60610-016 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
71670-166 FILTER, FUELFILTER, FUEL
-
88002-040 SCREW, CAPSCREW, CAP
-
98051-217 WASHER, LOCKWASHER, LOCK
-
108050-217 WASHERWASHER
-
110623-877 NUT, LOCK W/WASHERNUT, LOCK W/WASHER
-
120623-835 SCREW, MACHINE W/EXTERNAL TOOTH LOCK WASHERSCREW, MACHINE W/EXTERNAL TOOTH LOCK WASHER
-
130124-045 CLAMP, HOSECLAMP, HOSE
-
140123-811 CABLE TIE - 4 IN.CABLE TIE - 4 IN.
-
150623-652 CLAMP, HOSECLAMP, HOSE
-
160610-442 HOSE, DRAINHOSE, DRAIN
-
170716-546 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
188060-704 RIVETRIVET
-
193002-964 CLAMP, WIRECLAMP, WIRE
-
200107-630 SPACERSPACER
