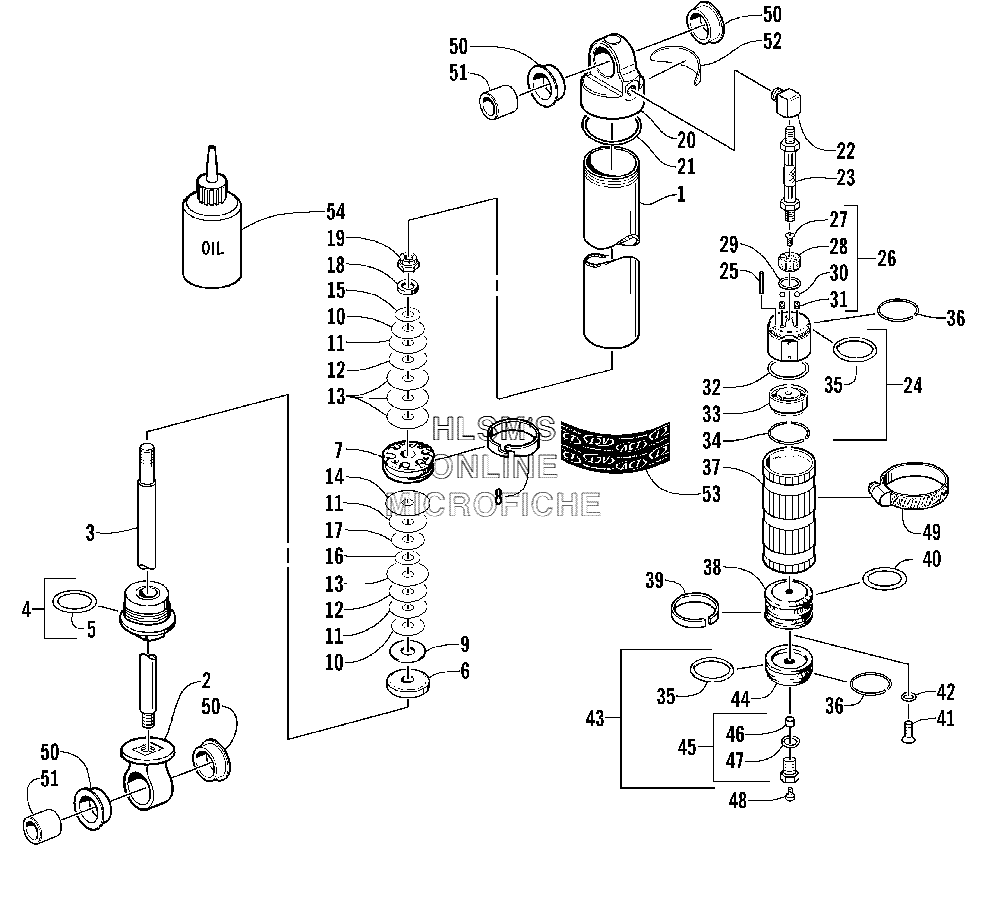

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat ZR 600 EFI CC (CC GREEN) - 2002 года выпуска`
-
№АртикулНазвание
-
-0704-743 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
12604-054 BODY, SHOCKBODY, SHOCK
-
21603-503 EYELET, SHOCKEYELET, SHOCK
-
31604-543 ROD, SHOCKROD, SHOCK
-
40704-382 END CAP, SHOCK, ASSEMBLY (INC. 5)END CAP, SHOCK, ASSEMBLY (INC. 5)
-
51604-271 O-RINGO-RING
-
61604-511 SPACER, SHAFTSPACER, SHAFT
-
71603-273 PISTON, 0.041 IN., ORIFICEPISTON, 0.041 IN., ORIFICE
-
81604-274 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
91604-272 WASHER, TOP OUTWASHER, TOP OUT
-
102603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
112603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
122603-095 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
132603-125 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
142603-134 VALVE, 1.300 X 0.008 IN.VALVE, 1.300 X 0.008 IN.
-
152603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
162603-042 VALVE, 0.700 X 0.006 IN.VALVE, 0.700 X 0.006 IN.
-
172603-064 VALVE, 0.900 X 0.008 IN.VALVE, 0.900 X 0.008 IN.
-
181604-273 WASHER, BACKUPWASHER, BACKUP
-
190623-696 NUT, FLEXNUT, FLEX
-
200603-963 END CAP, SHOCKEND CAP, SHOCK
-
211604-280 O-RINGO-RING
-
220603-964 FITTING, ELBOWFITTING, ELBOW
-
231603-317 HOSE, RESERVOIR/SHOCKHOSE, RESERVOIR/SHOCK
-
240703-541 END CAP, RESERVOIR BODY (INC. ONE NO. 25, 34 AND ONE NO. 35)END CAP, RESERVOIR BODY (INC. ONE NO. 25, 34 AND ONE NO. 35)
-
251603-406 PIN, INNERDICATOR KNOBPIN, INNERDICATOR KNOB
-
261703-001 KNOB, ADJUSTER, ASSEMBLY (INC. 27, 31)KNOB, ADJUSTER, ASSEMBLY (INC. 27, 31)
-
270603-977 SCREW, MACHINESCREW, MACHINE
-
280603-976 KNOB, ADJUSTERKNOB, ADJUSTER
-
290603-975 O-RINGO-RING
-
300603-974 BALL, DETENTBALL, DETENT
-
310603-973 SPRINGSPRING
-
320603-970 O-RINGO-RING
-
330703-542 RELIEF, OIL, 2, PORT ASSEMBLYRELIEF, OIL, 2, PORT ASSEMBLY
-
340603-984 RETAINERRETAINER
-
350603-968 O-RINGO-RING
-
360603-985 RETAINER, END CAPRETAINER, END CAP
-
371603-315 BODY, RESERVOIRBODY, RESERVOIR
-
380603-986 PISTON, RESERVOIRPISTON, RESERVOIR
-
390603-988 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
400603-987 O-RINGO-RING
-
410623-697 SCREW, MACHINE, PISTONSCREW, MACHINE, PISTON
-
420423-182 O-RINGO-RING
-
430703-540 END CAP, RESERVOIR, ASSEMBLY (INC. ONE NO. 35 AND 44, 47)END CAP, RESERVOIR, ASSEMBLY (INC. ONE NO. 35 AND 44, 47)
-
440603-989 END CAP, RESERVOIREND CAP, RESERVOIR
-
450704-383 VALVE, PRESSURE (INC. 46, 47)VALVE, PRESSURE (INC. 46, 47)
-
471604-284 O-RING, VALVEO-RING, VALVE
-
480624-433 SCREW, MACHINESCREW, MACHINE
-
491603-316 CLAMP, RESERVOIRCLAMP, RESERVOIR
-
501604-262 BUSHING, SHOCKBUSHING, SHOCK
-
511604-397 SLEEVE, EYELETSLEEVE, EYELET
-
523611-007 DECAL, WARNING, SHOCKDECAL, WARNING, SHOCK
-
534611-332 DECAL, "ACT", SHOCKDECAL, "ACT", SHOCK
-
541639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
