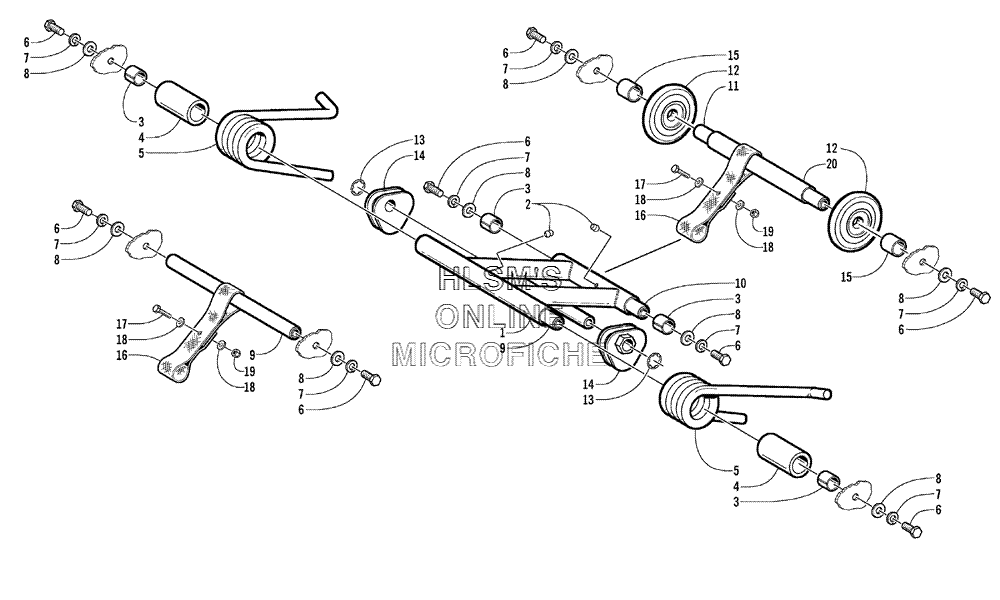

REAR SUSPENSION ARM ASSEMBLY для Arctic Cat ZR 120 - 2002 года выпуска`
-
№АртикулНазвание
-
10704-734 ARM SUSPENSION (REAR) (INC. 2, 3)ARM SUSPENSION (REAR) (INC. 2, 3)
-
20623-922 FITTING, GREASEFITTING, GREASE
-
30603-083 BEARINGBEARING
-
41604-715 SLEEVE, SPRINGSLEEVE, SPRING
-
51604-706 SPRING SUSPENSION (REAR) (RIGHT)SPRING SUSPENSION (REAR) (RIGHT)
-
51604-707 SPRING SUSPENSION (REAR) (LEFT)SPRING SUSPENSION (REAR) (LEFT)
-
68002-131 SCREW, CAPSCREW, CAP
-
78051-247 WASHER, LOCKWASHER, LOCK
-
88050-247 WASHERWASHER
-
91604-555 AXLEAXLE
-
101604-710 AXLE SUSPENSION ARM (REAR) (LOWER)AXLE SUSPENSION ARM (REAR) (LOWER)
-
111604-673 AXLEAXLE
-
120300-180 WHEEL, IDLERWHEEL, IDLER
-
130623-138 RING, RETAININGRING, RETAINING
-
141604-204 BLOCK, SPRING ADJUSTER (RIGHT)BLOCK, SPRING ADJUSTER (RIGHT)
-
141604-205 BLOCK, SPRING ADJUSTER (LEFT)BLOCK, SPRING ADJUSTER (LEFT)
-
151604-565 SPACERSPACER
-
161604-708 STRAP, LIMITERSTRAP, LIMITER
-
178002-042 SCREW, CAPSCREW, CAP
-
188050-222 WASHERWASHER
-
198040-366 NUT, LOCKNUT, LOCK
-
201604-564 SPACERSPACER
