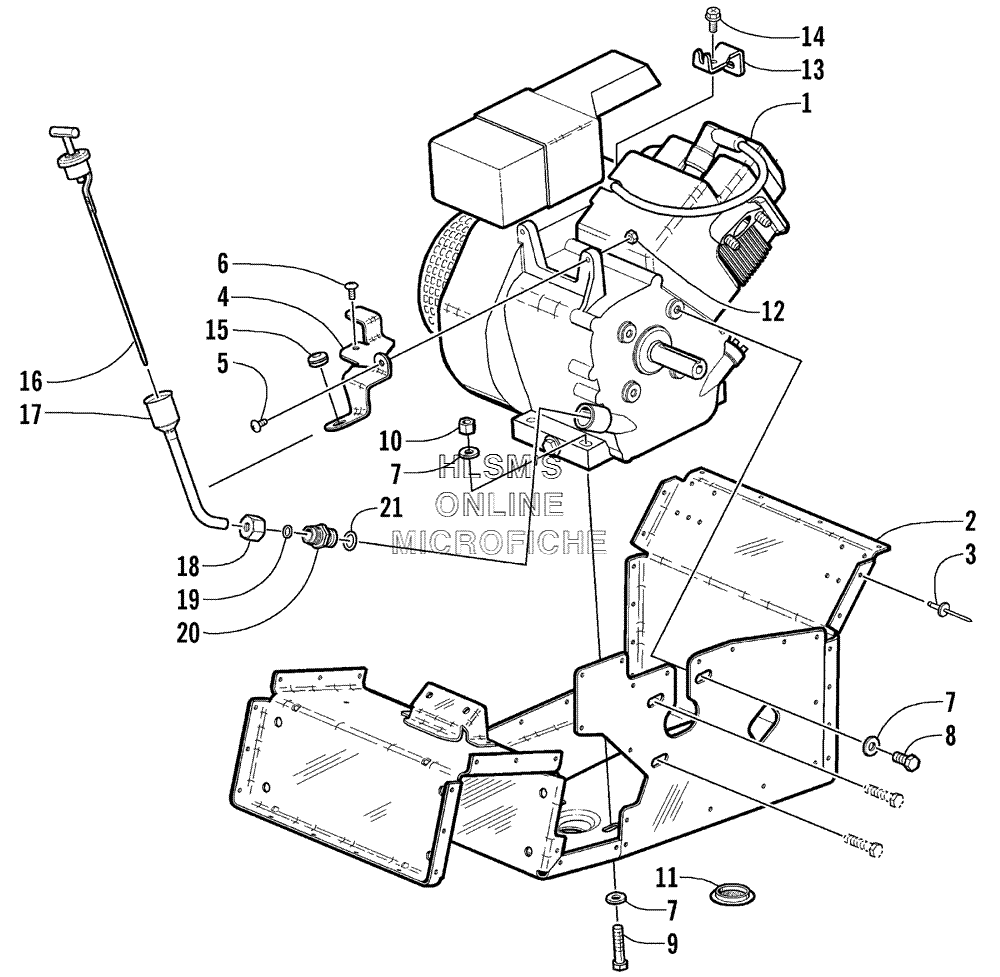

ENGINE AND RELATED PARTS для Arctic Cat ZR 120 - 2002 года выпуска`
-
№АртикулНазвание
-
10662-326 ENGINE, AA12A1ENGINE, AA12A1
-
21706-235 FRONT ENDFRONT END
-
38060-484 RIVETRIVET
-
42606-223 COVER, GOVERNORCOVER, GOVERNOR
-
58007-400 SCREW, MACHINESCREW, MACHINE
-
60623-786 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
78050-247 WASHERWASHER
-
88004-130 SCREW, CAPSCREW, CAP
-
98002-135 SCREW, CAPSCREW, CAP
-
108040-426 NUT, LOCKNUT, LOCK
-
110623-822 PLUGPLUG
-
128041-246 NUT, LOCKNUT, LOCK
-
131670-074 BRACKET, THROTTLE CABLEBRACKET, THROTTLE CABLE
-
143004-987 SCREW, CAPSCREW, CAP
-
151670-235 GROMMETGROMMET
-
161670-191 STICK, OIL LEVELSTICK, OIL LEVEL
-
171670-190 TUBE, OIL LEVEL FILLTUBE, OIL LEVEL FILL
-
180623-896 NUT, SHOULDERNUT, SHOULDER
-
190623-884 O, O-RINGIL LEVEL FILL TUBE ADAPTERO, O-RINGIL LEVEL FILL TUBE ADAPTER
-
200623-883 ADAPTER, OIL LEVEL FILL TUBEADAPTER, OIL LEVEL FILL TUBE
-
210623-903 O-RINGO-RING
