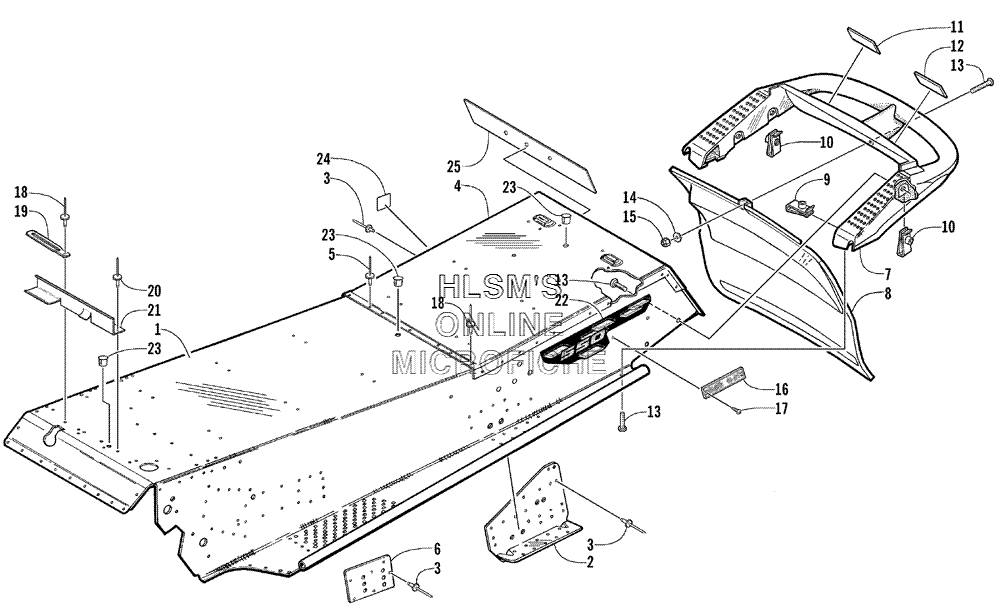

TUNNEL AND REAR BUMPER для Arctic Cat ZL 550 - 2002 года выпуска`
-
№АртикулНазвание
-
11718-124 TUNNEL ASSY. (INC. 2, 5)TUNNEL ASSY. (INC. 2, 5)
-
21706-078 BRACKET, SUSPENSION MOUNTING (RIGHT) (REAR)BRACKET, SUSPENSION MOUNTING (RIGHT) (REAR)
-
21706-079 BRACKET, SUSPENSION MOUNTING (LEFT) (REAR)BRACKET, SUSPENSION MOUNTING (LEFT) (REAR)
-
30123-418 RIVET, SOLIDRIVET, SOLID
-
30623-072 RIVET, SOLIDRIVET, SOLID
-
38060-506 RIVETRIVET
-
41606-486 PLATE, END TUNNEL (REAR)PLATE, END TUNNEL (REAR)
-
58060-704 RIVETRIVET
-
61606-161 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
71606-200 BUMPER (REAR)BUMPER (REAR)
-
81606-202 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
90623-427 NUT, UNUT, U
-
100623-771 NUT, UNUT, U
-
111611-567 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
121611-566 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
138017-580 SCREW, MACHINESCREW, MACHINE
-
148050-217 WASHERWASHER
-
158040-366 NUT, LOCKNUT, LOCK
-
160606-029 REFLECTOR (REAR) (RED)REFLECTOR (REAR) (RED)
-
170623-269 CLIP, RETAININGCLIP, RETAINING
-
188060-504 RIVETRIVET
-
193002-964 CLAMP, WIRECLAMP, WIRE
-
200623-166 RIVETRIVET
-
210607-635 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
224611-134 DECAL, TUNNEL (RIGHT)DECAL, TUNNEL (RIGHT)
-
224611-135 DECAL, TUNNEL (LEFT)DECAL, TUNNEL (LEFT)
-
230623-562 PLUG, HOLEPLUG, HOLE
-
240411-053 DECAL, CEDECAL, CE
-
254611-112 DECAL, TUNNEL (REAR)DECAL, TUNNEL (REAR)
