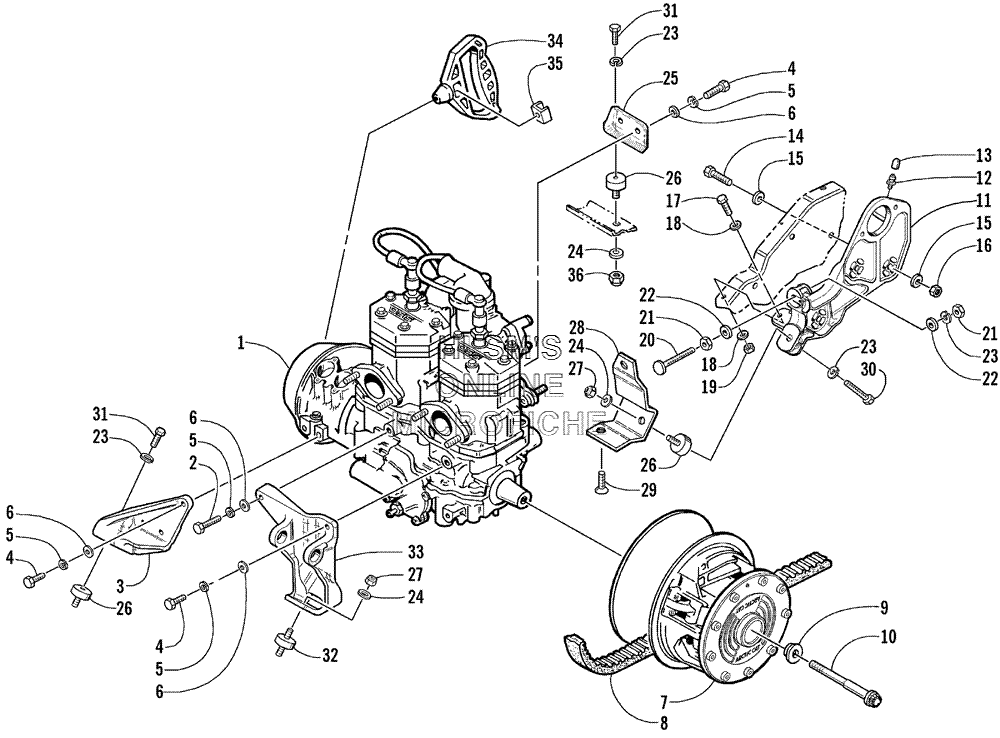

ENGINE AND RELATED PARTS для Arctic Cat ZL 550 - 2002 года выпуска
-
№АртикулНазвание
-
10662-311 ENGINE, ACB55L3ENGINE, ACB55L3
-
28002-135 SCREW, CAPSCREW, CAP
-
30708-114 BRACKET, ENGINE MOUNTING (RIGHT) FRONTBRACKET, ENGINE MOUNTING (RIGHT) FRONT
-
48013-132 SCREW, CAPSCREW, CAP
-
58051-242 WASHER, LOCKWASHER, LOCK
-
68050-242 WASHERWASHER
-
70725-301 CLUTCH, DRIVECLUTCH, DRIVE
-
80627-020 BELT, DRIVEBELT, DRIVE
-
90623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
100623-804 BOLT, CLUTCHBOLT, CLUTCH
-
110708-140 BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 12, 13)BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 12, 13)
-
120623-899 FITTING, GREASEFITTING, GREASE
-
130623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
-
148002-225 SCREW, CAPSCREW, CAP
-
150623-044 WASHERWASHER
-
160623-026 NUT, LOCKNUT, LOCK
-
178002-041 SCREW, CAPSCREW, CAP
-
188050-222 WASHERWASHER
-
198040-366 NUT, LOCKNUT, LOCK
-
200608-299 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
218042-516 NUTNUT
-
228050-282 WASHERWASHER
-
238051-277 WASHER, LOCKWASHER, LOCK
-
248050-277 WASHERWASHER
-
250708-070 BRACKET, ENGINE MOUNTING (RIGHT) REARBRACKET, ENGINE MOUNTING (RIGHT) REAR
-
260608-217 MOUNT, ENGINEMOUNT, ENGINE
-
278040-486 NUT, LOCKNUT, LOCK
-
280608-235 BRACKET, ENGINE MOUNTING (LEFT) REARBRACKET, ENGINE MOUNTING (LEFT) REAR
-
290623-095 SCREW, MACHINESCREW, MACHINE
-
308002-226 SCREW, CAPSCREW, CAP
-
318002-222 SCREW, CAPSCREW, CAP
-
320608-118 MOUNT, ENGINE, DOUBLE MALEMOUNT, ENGINE, DOUBLE MALE
-
330708-113 BRACKET, ENGINE MOUNTING (LEFT) (FRONT)BRACKET, ENGINE MOUNTING (LEFT) (FRONT)
-
340636-363 HANDLE, RECOILHANDLE, RECOIL
-
350606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
368041-486 NUT, LOCKNUT, LOCK
