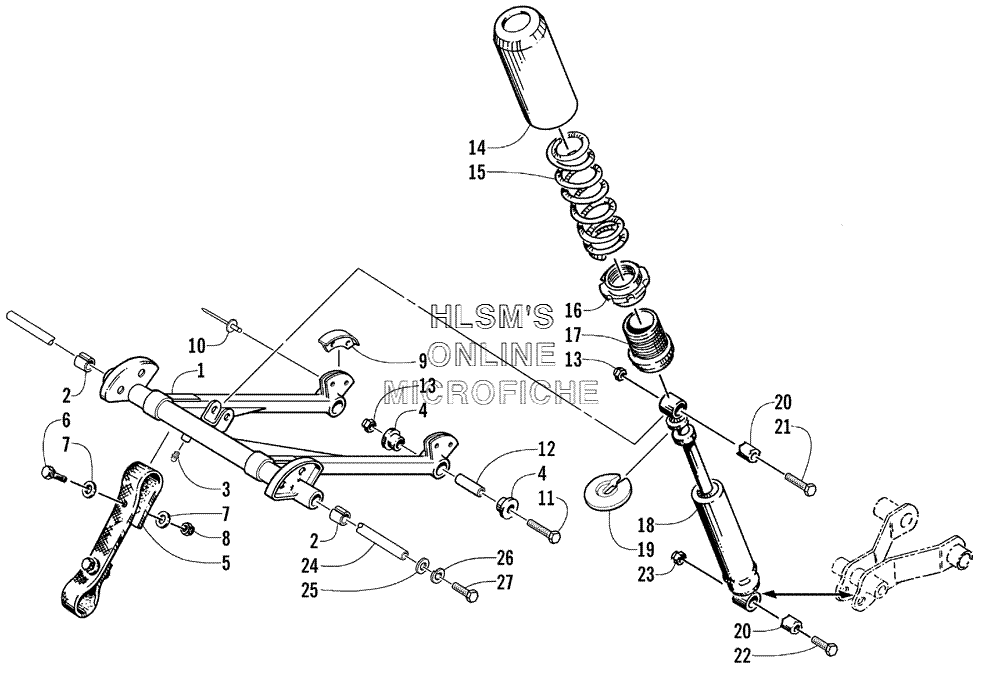

REAR SUSPENSION FRONT ARM ASSY. для Arctic Cat Z 370 - 2002 года выпуска`
-
№АртикулНазвание
-
10704-637 ARM SUSPENSION (FRONT) (INC. 2, 4)ARM SUSPENSION (FRONT) (INC. 2, 4)
-
20603-083 BEARINGBEARING
-
30623-922 FITTING, GREASEFITTING, GREASE
-
40104-386 BUSHINGBUSHING
-
51604-131 STRAP, LIMITERSTRAP, LIMITER
-
68002-042 SCREW, CAPSCREW, CAP
-
70623-184 WASHERWASHER
-
88040-366 NUT, LOCKNUT, LOCK
-
90604-183 BUMPER, TRACK GUIDEBUMPER, TRACK GUIDE
-
108060-710 RIVETRIVET
-
118002-228 SCREW, CAPSCREW, CAP
-
120104-629 SPACER ARM (FRONT)SPACER ARM (FRONT)
-
138040-486 NUT, LOCKNUT, LOCK
-
140604-590 COVER, COMPRESSION SPRINGCOVER, COMPRESSION SPRING
-
151603-171 SPRING, COMPRESSIONSPRING, COMPRESSION
-
160603-259 NUT, RETAINER, SPRINGNUT, RETAINER, SPRING
-
170603-147 SLEEVE, THREADEDSLEEVE, THREADED
-
181604-101 SHOCK ABSORBER ARM (FRONT)SHOCK ABSORBER ARM (FRONT)
-
191603-577 RETAINER, SPRINGRETAINER, SPRING
-
200603-030 AXLE, SERRATEDAXLE, SERRATED
-
218002-227 SCREW, CAPSCREW, CAP
-
228002-225 SCREW, CAPSCREW, CAP
-
238041-486 NUT, LOCKNUT, LOCK
-
240114-163 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
250623-044 WASHERWASHER
-
268051-277 WASHER, LOCKWASHER, LOCK
-
278002-224 SCREW, CAPSCREW, CAP
