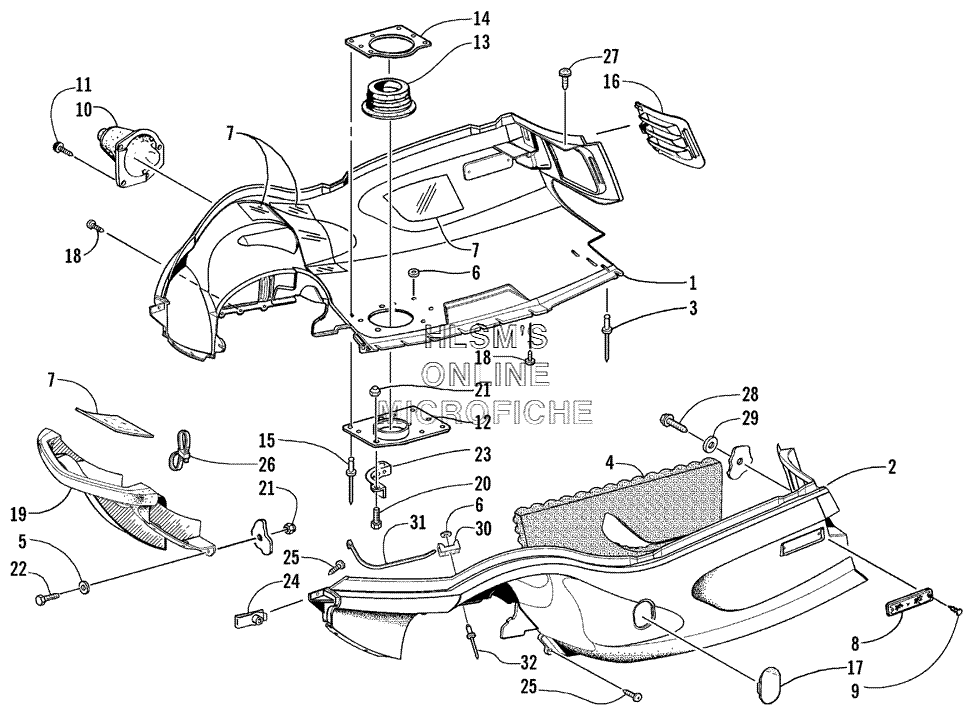

BELLY PAN AND FRONT BUMPER ASSY. для Arctic Cat Z 370 - 2002 года выпуска`
-
№АртикулНазвание
-
11706-110 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
21706-141 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
38061-508 RIVETRIVET
-
40617-315 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
58050-222 WASHERWASHER
-
60123-149 WASHERWASHER
-
70619-206 TAPE, FOILTAPE, FOIL
-
80606-526 REFLECTOR (FRONT) (AMBER)REFLECTOR (FRONT) (AMBER)
-
90623-269 CLIP, RETAININGCLIP, RETAINING
-
100605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
100605-333 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
110623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
120612-618 RING, EXHAUST OUTLET (LOWER)RING, EXHAUST OUTLET (LOWER)
-
131612-027 BOOT, EXHAUSTBOOT, EXHAUST
-
140612-500 RING, EXHAUST OUTLET (UPPER)RING, EXHAUST OUTLET (UPPER)
-
158060-508 RIVETRIVET
-
161606-044 LOUVER, AIR, INTAKE (RIGHT)LOUVER, AIR, INTAKE (RIGHT)
-
161606-045 LOUVER, AIR, INTAKE (LEFT)LOUVER, AIR, INTAKE (LEFT)
-
171606-767 PANEL, CLUTCH ACCESSPANEL, CLUTCH ACCESS
-
180623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
192606-224 BUMPER (FRONT)BUMPER (FRONT)
-
208002-040 SCREW, CAPSCREW, CAP
-
218040-366 NUT, LOCKNUT, LOCK
-
228002-041 SCREW, CAPSCREW, CAP
-
230612-498 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
240623-427 NUT, UNUT, U
-
250623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
260623-285 CABLE TIE, DOUBLE LOOPCABLE TIE, DOUBLE LOOP
-
270623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
280623-647 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
290623-184 WASHERWASHER
-
300623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
310123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
328060-506 RIVETRIVET
