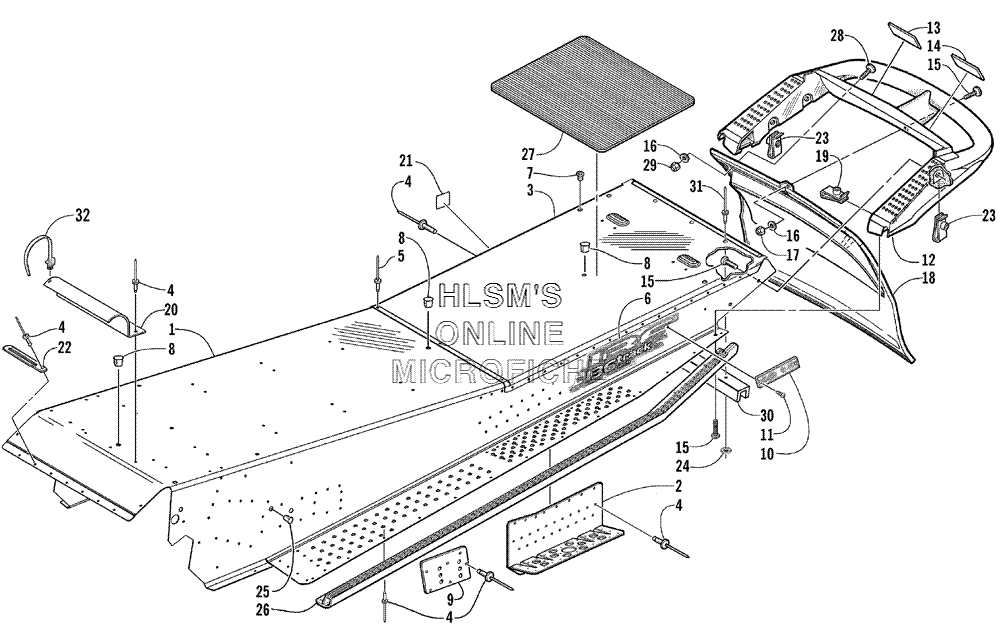

TUNNEL AND REAR BUMPER для Arctic Cat MOUNTAIN CAT 570 - 2002 года выпуска`
-
№АртикулНазвание
-
11718-188 TUNNEL ASSY. (INC. 2, 5)TUNNEL ASSY. (INC. 2, 5)
-
20716-970 BRACKET, SUSPENSION MOUNTING (RIGHT) (REAR)BRACKET, SUSPENSION MOUNTING (RIGHT) (REAR)
-
20716-971 BRACKET, SUSPENSION MOUNTING (LEFT) (REAR)BRACKET, SUSPENSION MOUNTING (LEFT) (REAR)
-
32606-319 PLATE, END TUNNEL (REAR)PLATE, END TUNNEL (REAR)
-
40623-072 RIVETRIVET
-
40623-166 RIVETRIVET
-
40123-418 RIVETRIVET
-
48060-506 RIVETRIVET
-
58060-484 RIVETRIVET
-
64611-050 DECAL, "136 INCH TRACK" TUNNEL (RIGHT)DECAL, "136 INCH TRACK" TUNNEL (RIGHT)
-
64611-051 DECAL, "136 INCH TRACK" TUNNEL (LEFT)DECAL, "136 INCH TRACK" TUNNEL (LEFT)
-
70623-582 INSERTINSERT
-
80623-562 PLUG, HOLEPLUG, HOLE
-
91606-161 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
100606-029 REFLECTOR (REAR) (RED)REFLECTOR (REAR) (RED)
-
110623-269 CLIP, RETAININGCLIP, RETAINING
-
121606-200 BUMPER (REAR)BUMPER (REAR)
-
131611-567 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
141611-566 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
158017-580 SCREW, MACHINESCREW, MACHINE
-
168050-217 WASHERWASHER
-
178040-366 NUT, LOCKNUT, LOCK
-
181606-202 SNOWFLAPSNOWFLAP
-
181606-507 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
190623-427 NUT, UNUT, U
-
200607-598 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
210411-053 DECAL, CEDECAL, CE
-
223002-964 CLAMP, WIRECLAMP, WIRE
-
230623-771 NUT, UNUT, U
-
240123-149 WASHERWASHER
-
250606-983 PLUG, BODYPLUG, BODY
-
262606-506 ROLL, TUNNEL (RIGHT)ROLL, TUNNEL (RIGHT)
-
262606-507 ROLL, TUNNEL (LEFT)ROLL, TUNNEL (LEFT)
-
271606-444 PAD, RUBBERPAD, RUBBER
-
288007-579 SCREW, MACHINESCREW, MACHINE
-
298041-366 NUT, LOCKNUT, LOCK
-
301706-907 BRACE, TUNNELBRACE, TUNNEL
-
318060-410 RIVETRIVET
-
320623-677 CABLE TIE, PUSH MOUNTCABLE TIE, PUSH MOUNT
