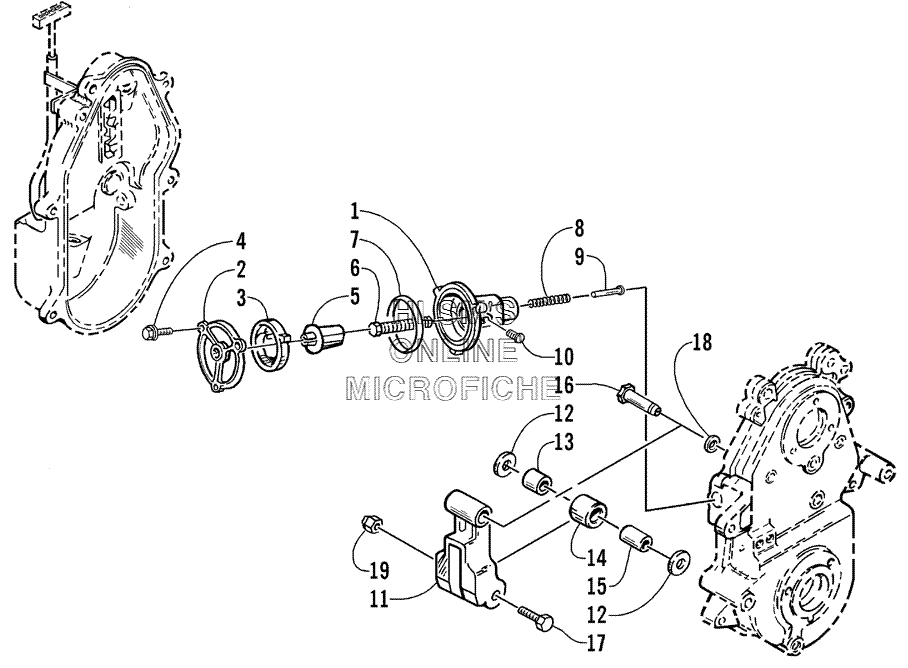

DROPCASE CHAIN TENSION ASSY. (OPTIONAL) для Arctic Cat MOUNTAIN CAT 570 - 2002 года выпуска`
-
№АртикулНазвание
-
10602-746 HOUSING, SCREW, CHAIN ADJUSTERHOUSING, SCREW, CHAIN ADJUSTER
-
20602-645 COVER, ADJUSTER HOUSINGCOVER, ADJUSTER HOUSING
-
30602-803 SPRING, POWER, ADJUSTER SHAFTSPRING, POWER, ADJUSTER SHAFT
-
40623-526 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
50602-870 SHAFT, CHAIN ADJUSTERSHAFT, CHAIN ADJUSTER
-
60602-748 SCREW, CHAIN ADJUSTERSCREW, CHAIN ADJUSTER
-
70602-801 O-RING, COVER, CHAIN ADJUSTERO-RING, COVER, CHAIN ADJUSTER
-
80602-901 SPRING, COMPRESSIONSPRING, COMPRESSION
-
90602-804 RIVET, BUTTON HEADRIVET, BUTTON HEAD
-
100623-541 SCREW, MACHINESCREW, MACHINE
-
110602-675 ARM, CHAIN ROLLERARM, CHAIN ROLLER
-
120623-525 WASHERWASHER
-
130602-383 BEARING, CHAIN TIGHTENERBEARING, CHAIN TIGHTENER
-
140702-129 ROLLER, CHAIN TIGHTENER (INC. 13)ROLLER, CHAIN TIGHTENER (INC. 13)
-
150602-676 SHAFT, CHAIN ROLLERSHAFT, CHAIN ROLLER
-
160602-681 NUT, ROLLER ARMNUT, ROLLER ARM
-
178002-045 SCREW, CAPSCREW, CAP
-
188050-222 WASHERWASHER
-
190623-122 NUT, LOCKNUT, LOCK
