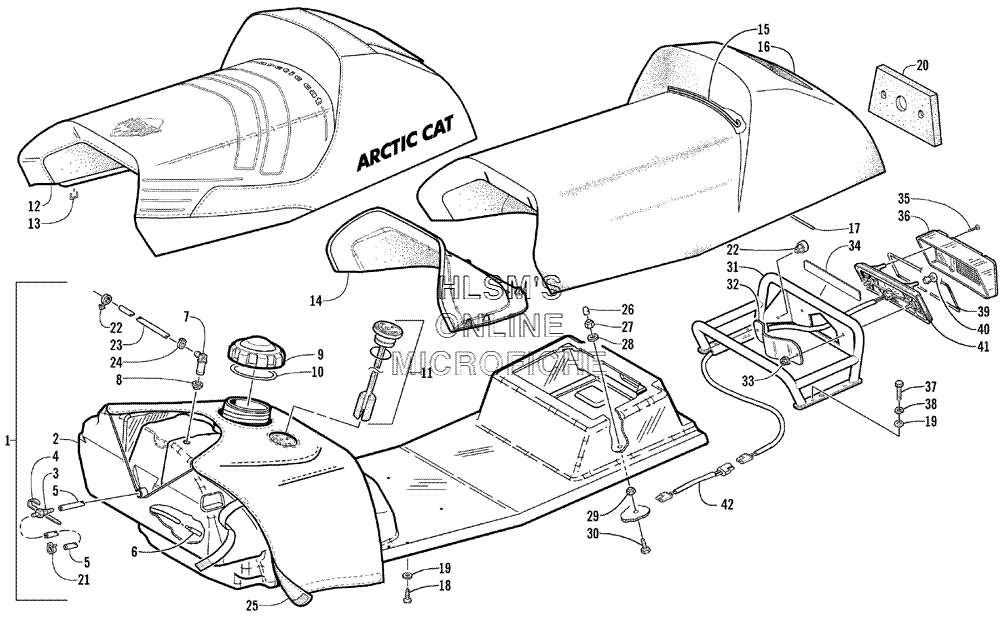

GAS TANK- SEAT- AND TAILLIGHT ASSY. для Arctic Cat MOUNTAIN CAT 1000 - 2002 года выпуска
-
№АртикулНазвание
-
11718-155 COMPLETE SEAT ASSY. (INC. 2, 18 AND TWO NO. 19)COMPLETE SEAT ASSY. (INC. 2, 18 AND TWO NO. 19)
-
20770-572 TANK, GAS/SEAT, BASE (INC. 3, 11)TANK, GAS/SEAT, BASE (INC. 3, 11)
-
31670-173 OUTLET, TANKOUTLET, TANK
-
40670-289 TAPE, TEFLONTAPE, TEFLON
-
50610-017 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
50610-008 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
60510-358 STRAINER, GAS TANKSTRAINER, GAS TANK
-
71670-324 VENT, GAS TANKVENT, GAS TANK
-
81670-325 GROMMET, GAS TANK VENTGROMMET, GAS TANK VENT
-
91670-199 CAP, GAS TANK (INC. 10)CAP, GAS TANK (INC. 10)
-
101670-228 SEAL, GAS TANK CAPSEAL, GAS TANK CAP
-
111670-241 GAUGE, FUEL W/GASKET (PRESS, FIT)GAUGE, FUEL W/GASKET (PRESS, FIT)
-
121706-878 COVER, SEATCOVER, SEAT
-
130624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
141606-126 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
151606-150 WIRE, SEATWIRE, SEAT
-
161706-197 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
170606-057 WIRE, SEATWIRE, SEAT
-
180623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
198050-217 WASHERWASHER
-
200617-098 FOAM, SEAT, BASE/TAILLIGHTFOAM, SEAT, BASE/TAILLIGHT
-
210124-045 CLAMP, HOSECLAMP, HOSE
-
220623-101 CLIP, ROUTING, SNAP, INNERCLIP, ROUTING, SNAP, INNER
-
230610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
230610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
240623-063 CLAMP, HOSECLAMP, HOSE
-
250705-424 WRAP/PAD, GAS TANKWRAP/PAD, GAS TANK
-
260623-404 CAP, PROTECTORCAP, PROTECTOR
-
278040-366 NUT, LOCKNUT, LOCK
-
280623-184 WASHERWASHER
-
298041-366 NUT, LOCKNUT, LOCK
-
308002-042 SCREW, CAPSCREW, CAP
-
311706-385 RACK (PLATINUM)RACK (PLATINUM)
-
321606-429 PLATE, PROTECTIVE, TAILLIGHTPLATE, PROTECTIVE, TAILLIGHT
-
330623-038 NUT W/WASHERNUT W/WASHER
-
343611-924 DECAL, CAUTION, RACKDECAL, CAUTION, RACK
-
350609-093 SCREW, RETAININGSCREW, RETAINING
-
360609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
378002-040 SCREW, CAPSCREW, CAP
-
388051-217 WASHER, LOCKWASHER, LOCK
-
390609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
400109-460 BULBBULB
-
410609-091 TAILLIGHT W/SOCKET ASSY.TAILLIGHT W/SOCKET ASSY.
