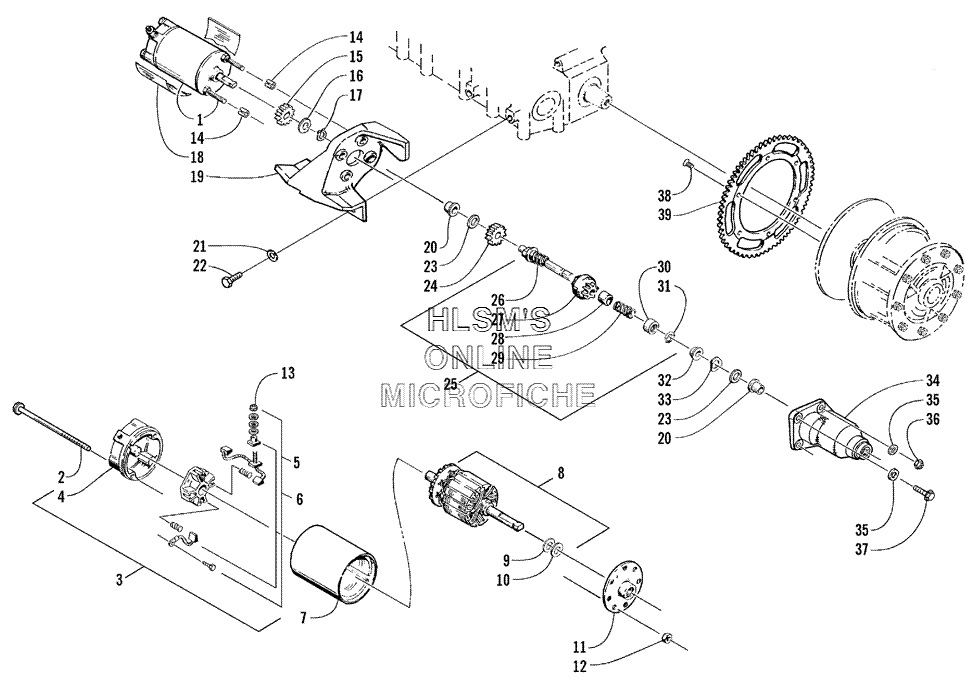

ELECTRIC START - STARTER MOTOR ASSY. (OPTIONAL) для Arctic Cat MOUNTAIN CAT 1000 - 2002 года выпуска`
-
№АртикулНазвание
-
-1639-919 ELECTRIC START OPTIONAL KITELECTRIC START OPTIONAL KIT
-
10645-312 MOTOR, STARTER (INC. 2, 12)MOTOR, STARTER (INC. 2, 12)
-
20645-128 SCREW, CAPSCREW, CAP
-
30645-285 COMMUTATOR CAP W/BRUSHES (INC. 4, 6)COMMUTATOR CAP W/BRUSHES (INC. 4, 6)
-
60645-275 BRUSH AND SPRING KITBRUSH AND SPRING KIT
-
80645-146 ARMATURE ASSY. (INC. 9, 10)ARMATURE ASSY. (INC. 9, 10)
-
90645-131 WASHER, WAVEWASHER, WAVE
-
100645-293 WASHER, THRUSTWASHER, THRUST
-
110645-284 PLATE, END W/BEARINGPLATE, END W/BEARING
-
120645-129 NUTNUT
-
130623-122 NUT, LOCKNUT, LOCK
-
140645-106 SLEEVE, ALIGNMENTSLEEVE, ALIGNMENT
-
150645-289 GEAR, DRIVEGEAR, DRIVE
-
160623-336 WASHER, SPRINGWASHER, SPRING
-
170645-130 RING, SNAPRING, SNAP
-
180716-344 FOILFOIL
-
190745-107 BRACKET, STARTER MOTOR (INC. ONE NO. 20)BRACKET, STARTER MOTOR (INC. ONE NO. 20)
-
200645-108 BUSHING, SHAFTBUSHING, SHAFT
-
218050-242 WASHERWASHER
-
228012-132 SCREW, CAPSCREW, CAP
-
230645-127 WASHER, THRUSTWASHER, THRUST
-
240645-290 GEAR, SECONDARYGEAR, SECONDARY
-
250645-228 DRIVESHAFT, PINION, ASSY. (INC. 26, 31)DRIVESHAFT, PINION, ASSY. (INC. 26, 31)
-
280645-218 COVER, DUSTCOVER, DUST
-
290645-123 SPRINGSPRING
-
300645-217 STOP, PINIONSTOP, PINION
-
310645-125 RING, SNAPRING, SNAP
-
320645-107 SLEEVE, SPACERSLEEVE, SPACER
-
330645-126 WASHER, WAVEWASHER, WAVE
-
340745-083 CAP, END, STARTER MOTOR (INC. ONE NO. 20)CAP, END, STARTER MOTOR (INC. ONE NO. 20)
-
358050-217 WASHERWASHER
-
368040-366 NUT, LOCKNUT, LOCK
-
370623-275 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
380623-441 SCREW, FLAT SOCKET HEADSCREW, FLAT SOCKET HEAD
-
390645-169 GEAR, RINGGEAR, RING
