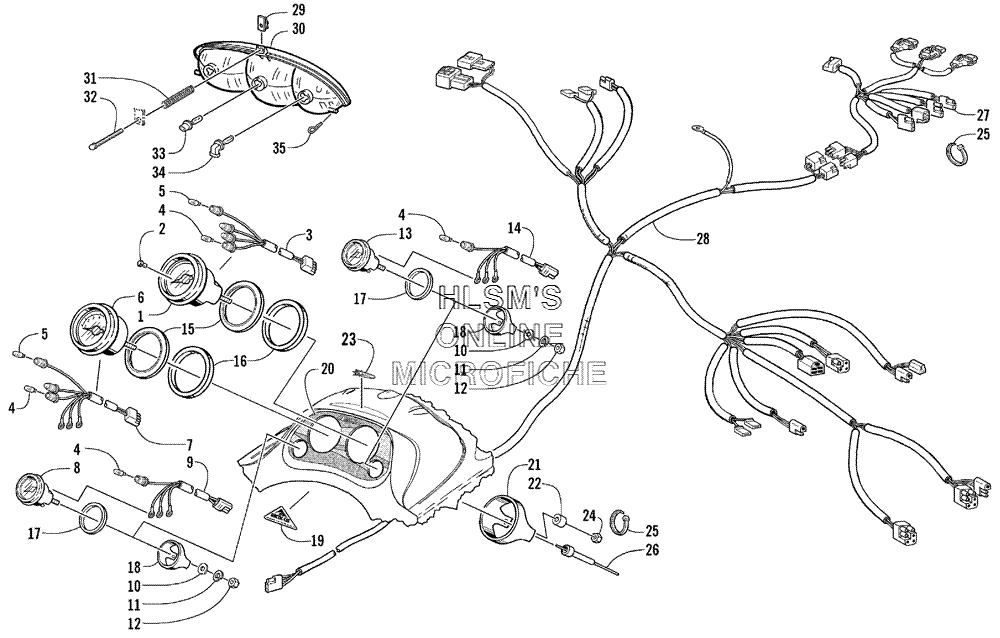

HEADLIGHT- INSTRUMENTS- AND WIRING ASSY. для Arctic Cat 4-STROKE TOURING - 2002 года выпуска
-
№АртикулНазвание
-
10620-265 SPEEDOMETER (INC. 2, 3, THREE NO. 4, AND ONE NO. 5)SPEEDOMETER (INC. 2, 3, THREE NO. 4, AND ONE NO. 5)
-
20620-073 KNOB, TRIPMETERKNOB, TRIPMETER
-
30620-266 HARNESS, BULB, SPEEDOMETER (INC. THREE NO. 4 AND ONE NO. 5)HARNESS, BULB, SPEEDOMETER (INC. THREE NO. 4 AND ONE NO. 5)
-
40620-149 BULB, INNERDICATORBULB, INNERDICATOR
-
50230-020 BULB, INSTRUMENTBULB, INSTRUMENT
-
60620-259 TACHOMETER (INC. TWO NO. 4, ONE NO. 5, AND 7)TACHOMETER (INC. TWO NO. 4, ONE NO. 5, AND 7)
-
70620-262 HARNESS, TACHOMETER (INC. TWO NO. 4 AND ONE NO. 5)HARNESS, TACHOMETER (INC. TWO NO. 4 AND ONE NO. 5)
-
80620-270 GAUGE, FUEL (INC. 9, TWO NO. 10, 12, AND ONE NO. 4)GAUGE, FUEL (INC. 9, TWO NO. 10, 12, AND ONE NO. 4)
-
90620-275 HARNESS, FUEL GAUGE (INC. ONE NO. 4)HARNESS, FUEL GAUGE (INC. ONE NO. 4)
-
108050-122 WASHERWASHER
-
118051-122 WASHER, LOCKWASHER, LOCK
-
120623-839 NUTNUT
-
130620-260 GAUGE, TEMPERATURE (INC. 14, TWO NO. 10, 12, AND ONE NO. 4)GAUGE, TEMPERATURE (INC. 14, TWO NO. 10, 12, AND ONE NO. 4)
-
140620-274 HARNESS, TEMPERATURE GAUGE (INC. ONE NO. 4)HARNESS, TEMPERATURE GAUGE (INC. ONE NO. 4)
-
152606-388 SPACER, GAUGESPACER, GAUGE
-
160620-135 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
170620-139 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
180620-138 RING, RETAINING BRACKETRING, RETAINING BRACKET
-
193611-611 DECAL, "MADE IN U.S.A.", DOMEDDECAL, "MADE IN U.S.A.", DOMED
-
204611-096 DECAL, INSTRUMENT, HOODDECAL, INSTRUMENT, HOOD
-
210620-134 RING, RETAINING BRACKETRING, RETAINING BRACKET
-
221623-041 SPACERSPACER
-
233611-581 DECAL, "ESR", DOMEDDECAL, "ESR", DOMED
-
240623-038 NUT W/WASHERNUT W/WASHER
-
250123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
260620-269 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
270686-779 HARNESS, HOODHARNESS, HOOD
-
280686-778 HARNESS, MAINHARNESS, MAIN
-
290623-757 NUT, UNUT, U
-
300609-250 LENS/REFLECTOR, HEADLIGHTLENS/REFLECTOR, HEADLIGHT
-
310623-466 SPRING, ADJUSTERSPRING, ADJUSTER
-
320623-467 SCREW, THUMBSCREW, THUMB
-
330609-252 BULB, HEADLIGHT, LOW BEAMBULB, HEADLIGHT, LOW BEAM
-
340609-251 BULB, HEADLIGHT, HIGH BEAMBULB, HEADLIGHT, HIGH BEAM
-
350623-847 CLIP, HAIRPINCLIP, HAIRPIN
