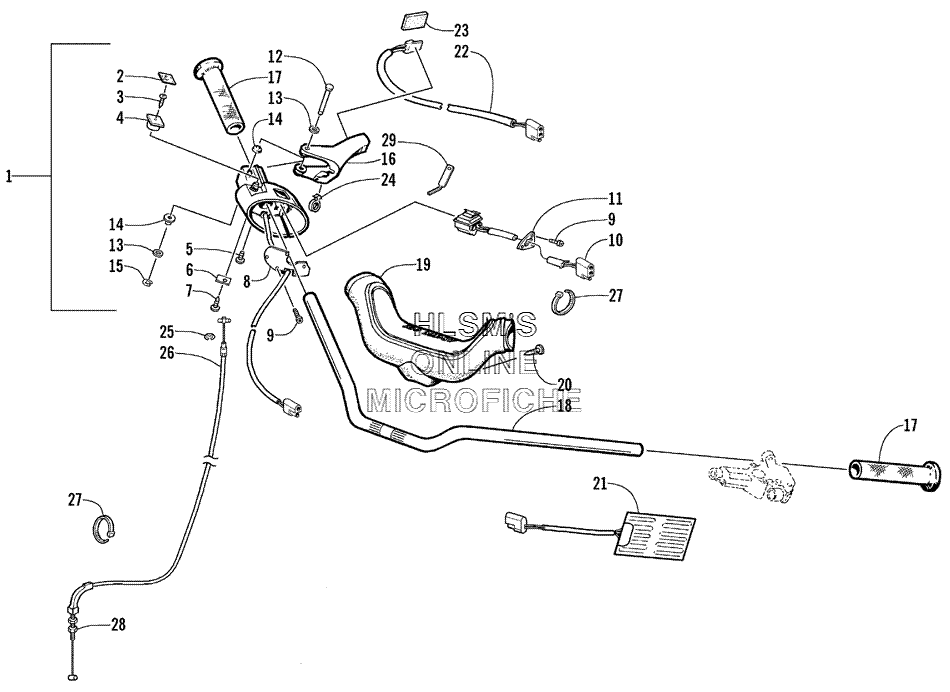

HANDLEBAR AND CONTROLS для Arctic Cat 4-STROKE TOURING - 2002 года выпуска`
-
№АртикулНазвание
-
10609-516 CONTROL, THROTTLE (HIGH/LOW/INC. 2, 11)CONTROL, THROTTLE (HIGH/LOW/INC. 2, 11)
-
20609-121 DECAL, MARK PLATEDECAL, MARK PLATE
-
30623-215 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
40609-120 KNOB, STOP SWITCHKNOB, STOP SWITCH
-
50609-085 SCREW, RETAININGSCREW, RETAINING
-
60609-319 CLAMP, HARNESSCLAMP, HARNESS
-
70609-321 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
80609-316 COVER, SWITCHCOVER, SWITCH
-
90609-312 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
100609-382 SWITCH, THUMBWARMER ASSY. (HIGH/LOW/INC. THREE NO. 9 AND 11)SWITCH, THUMBWARMER ASSY. (HIGH/LOW/INC. THREE NO. 9 AND 11)
-
110609-378 PLATE, COVERPLATE, COVER
-
120609-317 AXLE, LEVER, THROTTLEAXLE, LEVER, THROTTLE
-
130609-036 WASHERWASHER
-
140609-038 SEAL, THROTTLESEAL, THROTTLE
-
150609-040 RING, RETAININGRING, RETAINING
-
160609-515 LEVER, THROTTLELEVER, THROTTLE
-
172606-084 GRIP, HANDLEBARGRIP, HANDLEBAR
-
180705-361 HANDLEBARHANDLEBAR
-
190616-995 PAD, HANDLEBARPAD, HANDLEBAR
-
200623-128 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
210609-558 ELEMENT, HANDWARMERELEMENT, HANDWARMER
-
220609-557 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
230617-248 PAD, INSULATORPAD, INSULATOR
-
240623-262 CLIP, WIRECLIP, WIRE
-
250123-231 RING, RETAININGRING, RETAINING
-
260687-133 CABLE, THROTTLECABLE, THROTTLE
-
270123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
280623-464 NUT, LOCKING, THROTTLE CABLENUT, LOCKING, THROTTLE CABLE
-
291639-963 TOOL REMOVAL, KIT, THROTTLE CABLETOOL REMOVAL, KIT, THROTTLE CABLE
