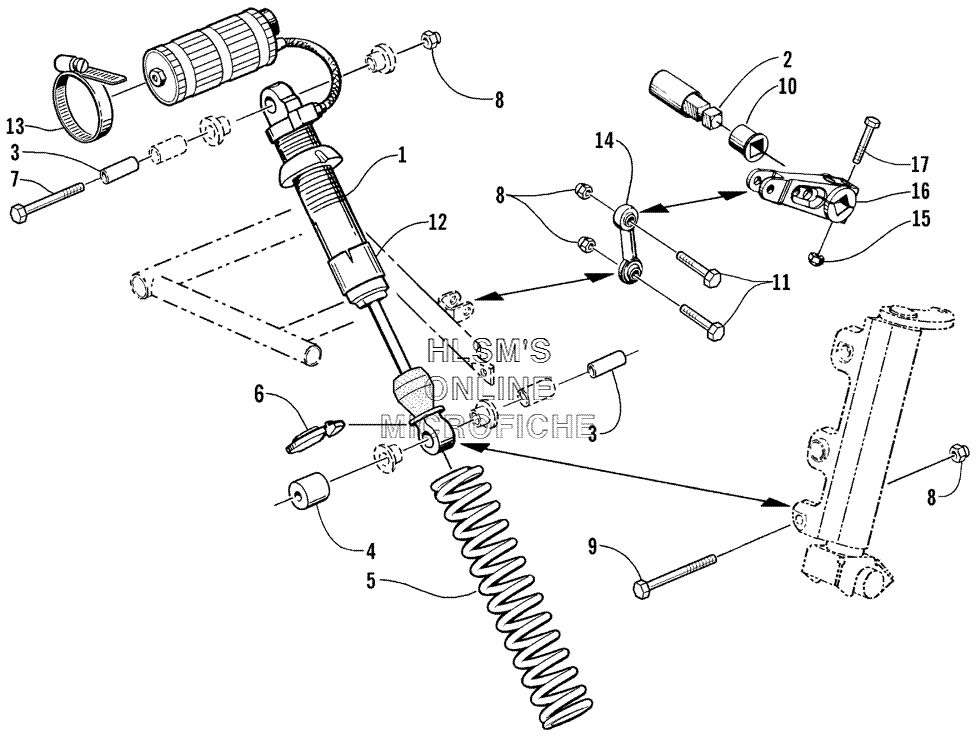

SHOCK ABSORBER AND SWAY BAR ASSY. (LE) для Arctic Cat ZR 800 LE - 2001 года выпуска`
-
№АртикулНазвание
-
10703-824 SHOCK SUSPENSION (FRONT) (RIGHT)SHOCK SUSPENSION (FRONT) (RIGHT)
-
10703-825 SHOCK SUSPENSION (FRONT) (LEFT)SHOCK SUSPENSION (FRONT) (LEFT)
-
20703-202 SWAY BARSWAY BAR
-
31603-023 SLEEVE, SHOCK (POWDER METAL)SLEEVE, SHOCK (POWDER METAL)
-
40603-648 SPACER, SHOCK MOUNTSPACER, SHOCK MOUNT
-
51603-392 SPRING, COMPRESSIONSPRING, COMPRESSION
-
61603-252 RETAINER, SPRINGRETAINER, SPRING
-
78002-226 SCREW, CAPSCREW, CAP
-
88040-486 NUT, LOCKNUT, LOCK
-
98002-232 SCREW, CAPSCREW, CAP
-
100603-151 BEARINGBEARING
-
118002-225 SCREW, CAPSCREW, CAP
-
121603-271 SLEEVE, WEARSLEEVE, WEAR
-
130214-025 CLAMPCLAMP
-
141603-002 LINK, SWAY BARLINK, SWAY BAR
-
158040-426 NUT, LOCKNUT, LOCK
-
160603-558 ARM, SWAY BARARM, SWAY BAR
-
178002-137 SCREW, CAPSCREW, CAP
