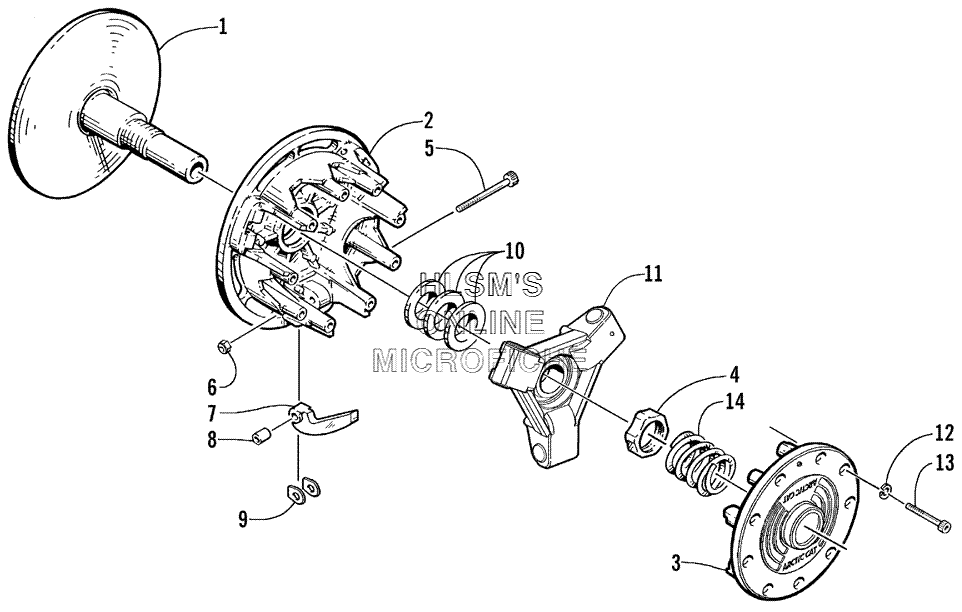

DRIVE CLUTCH для Arctic Cat ZR 800 LE - 2001 года выпуска`
-
№АртикулНазвание
-
-0725-328 CLUTCH, DRIVE ASSY.CLUTCH, DRIVE ASSY.
-
10646-324 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
20746-074 SHEAVE, MOVABLESHEAVE, MOVABLE
-
30746-086 COVERCOVER
-
40646-140 NUTNUT
-
50646-295 PIN, CAM ARMPIN, CAM ARM
-
60623-392 NUT, LOCKNUT, LOCK
-
70746-616 ARM, CAM (INC. 8)ARM, CAM (INC. 8)
-
70746-615 ARM, CAM (INC. 8) (5, 9, 000 FT ALT.)ARM, CAM (INC. 8) (5, 9, 000 FT ALT.)
-
70746-617 ARM, CAM (INC. 8) (OVER 9, 000 FT ALT.)ARM, CAM (INC. 8) (OVER 9, 000 FT ALT.)
-
80646-160 BEARING, CAM ARMBEARING, CAM ARM
-
90646-101 WASHER, CAM ARMWASHER, CAM ARM
-
100646-265 WASHER, SPACERWASHER, SPACER
-
110746-098 SPIDER ASSY.SPIDER ASSY.
-
128051-212 WASHER, LOCKWASHER, LOCK
-
130623-596 SCREW, MACHINESCREW, MACHINE
-
140646-155 SPRING, DRIVE CLUTCH (PURPLE)SPRING, DRIVE CLUTCH (PURPLE)
-
140646-147 SPRING, DRIVE CLUTCH (YELLOW/GREEN) (OVER 5, 000 FT ALT.)SPRING, DRIVE CLUTCH (YELLOW/GREEN) (OVER 5, 000 FT ALT.)
