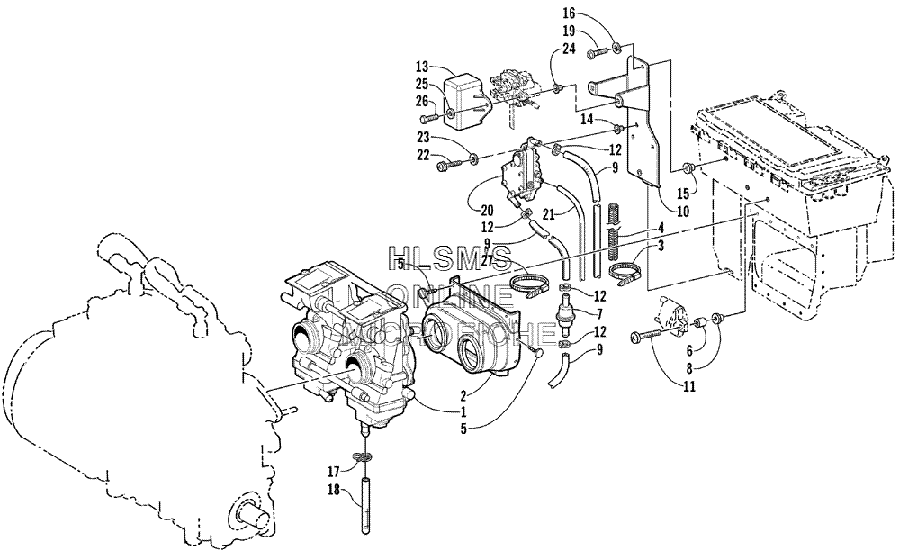

CARBURETOR AND FUEL PUMP ASSY. для Arctic Cat ZR 500 (INTERNATIONAL) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    1670-138 CARBURETOR, TM38, B331
    CARBURETOR, TM38, B331
  • 2
    1670-125 BOOT, CARBURETOR
    BOOT, CARBURETOR
  • 3
    0123-811 CABLE TIE, 4 IN.
    CABLE TIE, 4 IN.
  • 4
    0716-546 CONDUIT, FLEXIBLE
    CONDUIT, FLEXIBLE
  • 5
    0623-165 CLIP, RETAINING
    CLIP, RETAINING
  • 6
    0107-630 SPACER
    SPACER
  • 7
    1670-166 FILTER, FUEL
    FILTER, FUEL
  • 8
    0623-529 INSERT, THREADED
    INSERT, THREADED
  • 9
    0610-015 HOSE, GASLINE (100 FT)
    HOSE, GASLINE (100 FT)
  • 9
    0610-016 HOSE, GASLINE (25 FT)
    HOSE, GASLINE (25 FT)
  • 10
    0770-488 PLATE, MOUNTING (INC. 14 AND 24)
    PLATE, MOUNTING (INC. 14 AND 24)
  • 11
    0623-835 SCREW, MACHINE
    SCREW, MACHINE
  • 12
    0124-045 CLAMP, HOSE
    CLAMP, HOSE
  • 13
    2606-129 COVER, SERVOMOTOR
    COVER, SERVOMOTOR
  • 14
    0623-779 INSERT
    INSERT
  • 15
    0623-627 INSERT
    INSERT
  • 16
    8051-212 WASHER, LOCK
    WASHER, LOCK
  • 17
    0623-652 CLAMP, HOSE
    CLAMP, HOSE
  • 18
    0610-442 HOSE, DRAIN
    HOSE, DRAIN
  • 19
    8007-577 SCREW, MACHINE
    SCREW, MACHINE
  • 20
    1670-230 PUMP, FUEL
    PUMP, FUEL
  • 21
    0610-007 HOSE, IMPULSE (25 FT)
    HOSE, IMPULSE (25 FT)
  • 22
    0623-888 SCREW, MACHINE W/EXTERNAL TOOTH LOCK WASHER
    SCREW, MACHINE W/EXTERNAL TOOTH LOCK WASHER
  • 23
    0623-594 WASHER
    WASHER
  • 24
    0623-582 INSERT, THREADED
    INSERT, THREADED
  • 25
    8050-212 WASHER
    WASHER
  • 26
    8002-044 SCREW, CAP
    SCREW, CAP
  • 27
    0123-788 CABLE TIE, 7 IN.
    CABLE TIE, 7 IN.
