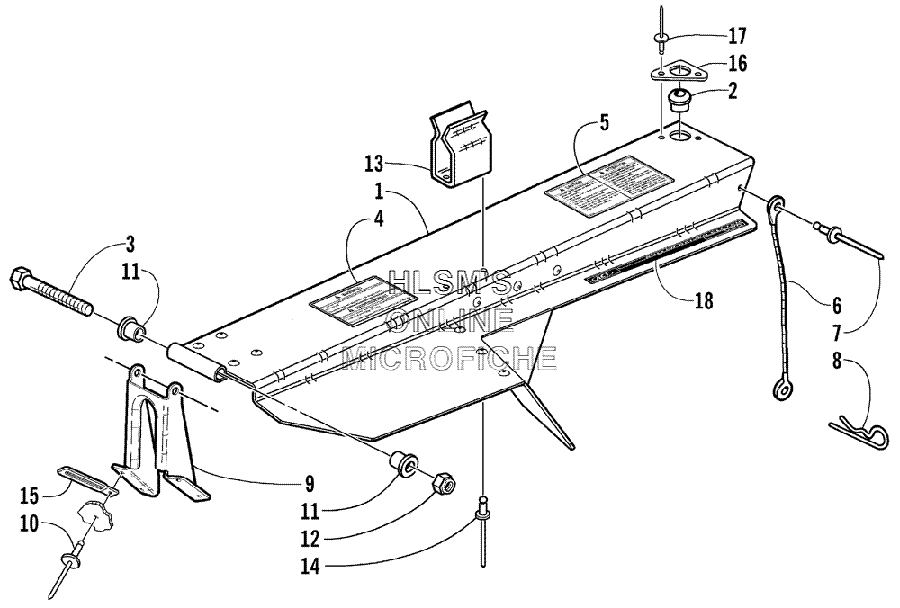

BELT GUARD ASSY. для Arctic Cat ZR 500 (INTERNATIONAL) - 2001 года выпуска`
-
№АртикулНазвание
-
10707-423 BELT GUARD (INC. 2 AND 16, 17)BELT GUARD (INC. 2 AND 16, 17)
-
20607-549 BUSHING, BELT GUARDBUSHING, BELT GUARD
-
38002-050 SCREW, CAPSCREW, CAP
-
41611-565 DECAL, WARNING, GUARDDECAL, WARNING, GUARD
-
51611-582 DECAL, CAUTION, JETTING/STORAGEDECAL, CAUTION, JETTING/STORAGE
-
60607-447 CABLECABLE
-
78060-426 RIVETRIVET
-
80605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
90607-592 BRACKET, MOUNTING, BELT GUARDBRACKET, MOUNTING, BELT GUARD
-
108061-508 RIVETRIVET
-
110607-094 INSERT, HINGEINSERT, HINGE
-
128040-366 NUT, LOCKNUT, LOCK
-
130636-659 HOLDER, DRIVE BELT (INC. 14)HOLDER, DRIVE BELT (INC. 14)
-
148060-704 RIVETRIVET
-
153002-964 CLAMP, WIRECLAMP, WIRE
-
160607-550 PLATE, BUSHING, BELT GUARDPLATE, BUSHING, BELT GUARD
-
178060-504 RIVETRIVET
-
183611-969 DECAL, "ACT, ROLLER DRIVEN CLUTCH"DECAL, "ACT, ROLLER DRIVEN CLUTCH"
Все узлы модели:
- A-ARM ASSY.
- AIR SILENCER ASSY.
- BATTERY- SOLENOID- AND CABLES (OPTIONAL)
- BELLY PAN AND FRONT BUMPER ASSY.
- • BELT GUARD ASSY.
- CARBURETOR - EXTERNAL PARTS
- CARBURETOR - INTERNAL PARTS
- CARBURETOR AND FUEL PUMP ASSY.
- CONSOLE AND SWITCH ASSY.
- COOLING ASSY.
- CRANKCASE ASSY.
- CYLINDER AND HEAD ASSY.
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSY.
- DRIVE/DROPCASE ASSY.
- DRIVE/REVERSE DROPCASE ASSY. (OPTIONAL)
- DRIVEN CLUTCH
- DROPCASE CHAIN TENSION ASSY. (OPTIONAL)
- ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSY.
- FLEX-DRIVE STARTER MOTOR ASSY. (OPTIONAL)
- FRONT FRAME AND FOOTREST ASSY.
- FRONT SUSPENSION SHOCK ABSORBER
- GAS TANK- SEAT- AND TAILLIGHT ASSY.
- HANDLEBAR AND CONTROLS
- HEADLIGHT- INSTRUMENTS- AND WIRING ASSY.
- HOOD AND WINDSHIELD ASSY.
- HYDRAULIC BRAKE CONTROL ASSY.
- IDLER WHEEL ASSY.
- MAGNETO
- OIL PUMP
- OIL TANK ASSY.
- PISTON AND CRANKSHAFT
- REAR SUSPENSION FRONT ARM ASSY.
- REAR SUSPENSION FRONT ARM SHOCK ABSORBER
- REAR SUSPENSION REAR ARM ASSY.
- REAR SUSPENSION REAR ARM SHOCK ABSORBER
- RECOIL STARTER
- REED VALVE ASSY.
- RELATED ITEMS
- REVERSE SHIFT LEVER ASSY. (OPTIONAL)
- SERVOMOTOR ASSY.
- SHOCK ABSORBER AND SWAY BAR ASSY.
- SKI AND SPINDLE ASSY.
