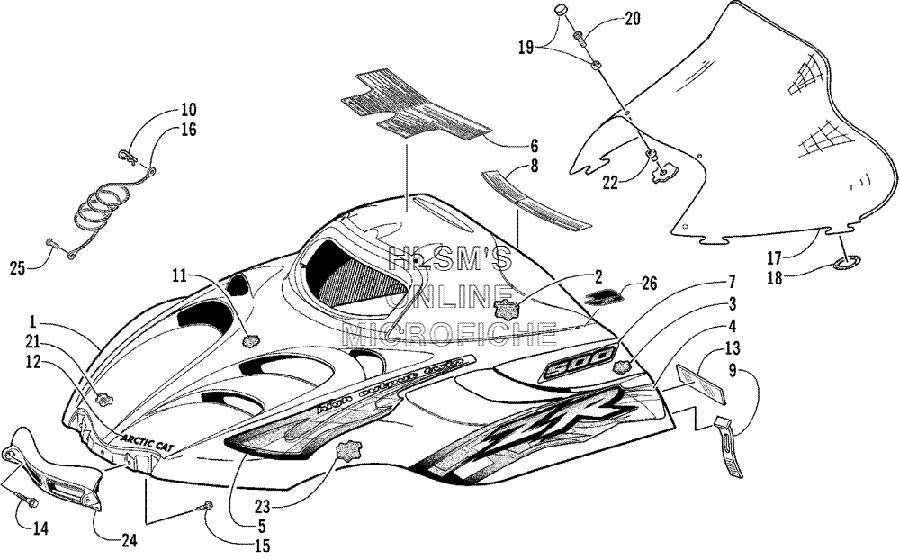

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat ZR 500 EFI (ESR) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    0718-812 HOOD W/O DECALS
    HOOD W/O DECALS
  • 1
    0718-899 HOOD W/DECALS
    HOOD W/DECALS
  • 2
    0617-324 FOAM, HOOD (UPPER/MIDDLE/RIGHT)
    FOAM, HOOD (UPPER/MIDDLE/RIGHT)
  • 2
    0617-325 FOAM, HOOD (UPPER/MIDDLE/LEFT)
    FOAM, HOOD (UPPER/MIDDLE/LEFT)
  • 3
    0617-322 FOAM, HOOD (UPPER/RIGHT)
    FOAM, HOOD (UPPER/RIGHT)
  • 3
    0617-323 FOAM, HOOD (UPPER/LEFT)
    FOAM, HOOD (UPPER/LEFT)
  • 4
    3611-784 DECAL, HOOD (LOWER/RIGHT)
    DECAL, HOOD (LOWER/RIGHT)
  • 4
    3611-785 DECAL, HOOD (LOWER/LEFT)
    DECAL, HOOD (LOWER/LEFT)
  • 5
    3611-782 DECAL, HOOD (UPPER/RIGHT)
    DECAL, HOOD (UPPER/RIGHT)
  • 5
    3611-783 DECAL, HOOD (UPPER/LEFT)
    DECAL, HOOD (UPPER/LEFT)
  • 6
    3611-485 DECAL, WARNING, ENGINE AND BRAKE
    DECAL, WARNING, ENGINE AND BRAKE
  • 7
    3611-826 DECAL, "500", HOOD
    DECAL, "500", HOOD
  • 8
    3611-970 DECAL, CAUTION, ENGINE/BATTERY/FUEL
    DECAL, CAUTION, ENGINE/BATTERY/FUEL
  • 9
    1606-067 STRAP, HOLD, DOWN
    STRAP, HOLD, DOWN
  • 10
    0623-805 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 11
    0617-328 FOAM, HOOD (MIDDLE)
    FOAM, HOOD (MIDDLE)
  • 12
    3611-187 DECAL, "ARCTIC CAT", HOOD
    DECAL, "ARCTIC CAT", HOOD
  • 13
    3611-509 DECAL, WARNING, SEATING CAPACITY
    DECAL, WARNING, SEATING CAPACITY
  • 14
    0623-690 SCREW, MACHINE
    SCREW, MACHINE
  • 15
    0623-797 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 16
    2606-247 CABLE, HOOD
    CABLE, HOOD
  • 17
    1606-696 WINDSHIELD
    WINDSHIELD
  • 18
    0616-032 O-RING
    O-RING
  • 19
    0124-054 SNAP CAP W/WASHER
    SNAP CAP W/WASHER
  • 20
    0623-902 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    1606-938 FOIL, HOOD (RIGHT)
    FOIL, HOOD (RIGHT)
  • 21
    1606-939 FOIL, HOOD (LEFT)
    FOIL, HOOD (LEFT)
  • 22
    0623-845 NUT, EXPANSION
    NUT, EXPANSION
  • 23
    0617-326 FOAM, HOOD (REAR) (RIGHT)
    FOAM, HOOD (REAR) (RIGHT)
  • 23
    0617-327 FOAM, HOOD (REAR) (LEFT)
    FOAM, HOOD (REAR) (LEFT)
  • 24
    1606-941 HINGE, HOOD
    HINGE, HOOD
  • 25
    0623-057 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 26
    4611-334 DECAL, "ACT", HOOD (RIGHT)
    DECAL, "ACT", HOOD (RIGHT)
  • 26
    4611-335 DECAL, "ACT", HOOD (LEFT)
    DECAL, "ACT", HOOD (LEFT)
