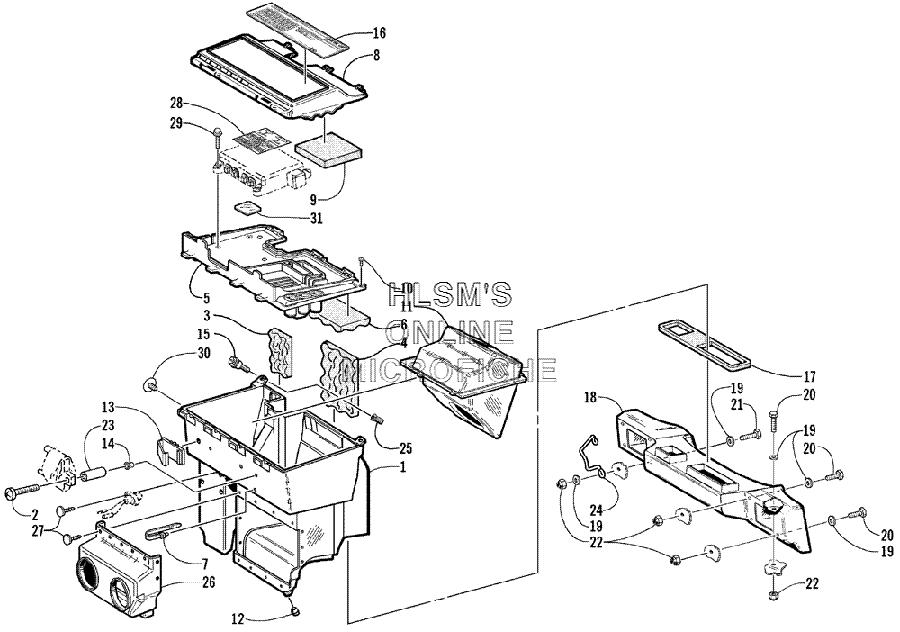

AIR SILENCER ASSEMBLY для Arctic Cat ZR 500 EFI (ESR) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-517 SILENCER, AIR (INC. 14)
    SILENCER, AIR (INC. 14)
  • 2
    0623-835 SCREW, MACHINE
    SCREW, MACHINE
  • 3
    0617-252 FOAM, AIR SILENCER, BACK MAGNETO
    FOAM, AIR SILENCER, BACK MAGNETO
  • 4
    0617-253 FOAM, AIR SILENCER, BACK PTO
    FOAM, AIR SILENCER, BACK PTO
  • 5
    1670-197 COVER, AIR SILENCER
    COVER, AIR SILENCER
  • 6
    0617-393 FOAM, AIR SILENCER, COVER
    FOAM, AIR SILENCER, COVER
  • 7
    0623-677 CABLE TIE, PUSH MOUNT
    CABLE TIE, PUSH MOUNT
  • 8
    1670-049 COVER, TOOL TRAY
    COVER, TOOL TRAY
  • 9
    0617-294 FOAM, TOOL TRAY
    FOAM, TOOL TRAY
  • 10
    0623-882 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 11
    0670-879 RESONATOR, Q, WAVE
    RESONATOR, Q, WAVE
  • 12
    1606-038 BUMPER, AIR SILENCER
    BUMPER, AIR SILENCER
  • 13
    0623-792 CLIP, PUSH MOUNT
    CLIP, PUSH MOUNT
  • 14
    0623-529 INSERT
    INSERT
  • 15
    0623-780 SCREW, HEX SHOULDER
    SCREW, HEX SHOULDER
  • 16
    4611-324 DECAL, CLUTCHING CHART
    DECAL, CLUTCHING CHART
  • 17
    0617-245 SEAL, AIR SILENCER/PLENUM
    SEAL, AIR SILENCER/PLENUM
  • 18
    1670-077 PLENUM, AIR SILENCER
    PLENUM, AIR SILENCER
  • 19
    8050-222 WASHER
    WASHER
  • 20
    8002-040 SCREW, CAP
    SCREW, CAP
  • 21
    8002-042 SCREW, CAP
    SCREW, CAP
  • 22
    8040-366 NUT, LOCK
    NUT, LOCK
  • 23
    0107-630 SPACER
    SPACER
  • 24
    0645-269 BRACKET, GUARD, HARNESS/ROPE
    BRACKET, GUARD, HARNESS/ROPE
  • 25
    0623-779 INSERT
    INSERT
  • 26
    1670-063 BOOT, AIR SILENCER
    BOOT, AIR SILENCER
  • 27
    0623-165 CLIP, RETAINING
    CLIP, RETAINING
  • 28
    3611-403 DECAL, FUEL DESIGNATION
    DECAL, FUEL DESIGNATION
  • 29
    0623-785 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 30
    0623-544 PLUG, RETAINING
    PLUG, RETAINING
  • 31
    2606-007 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
