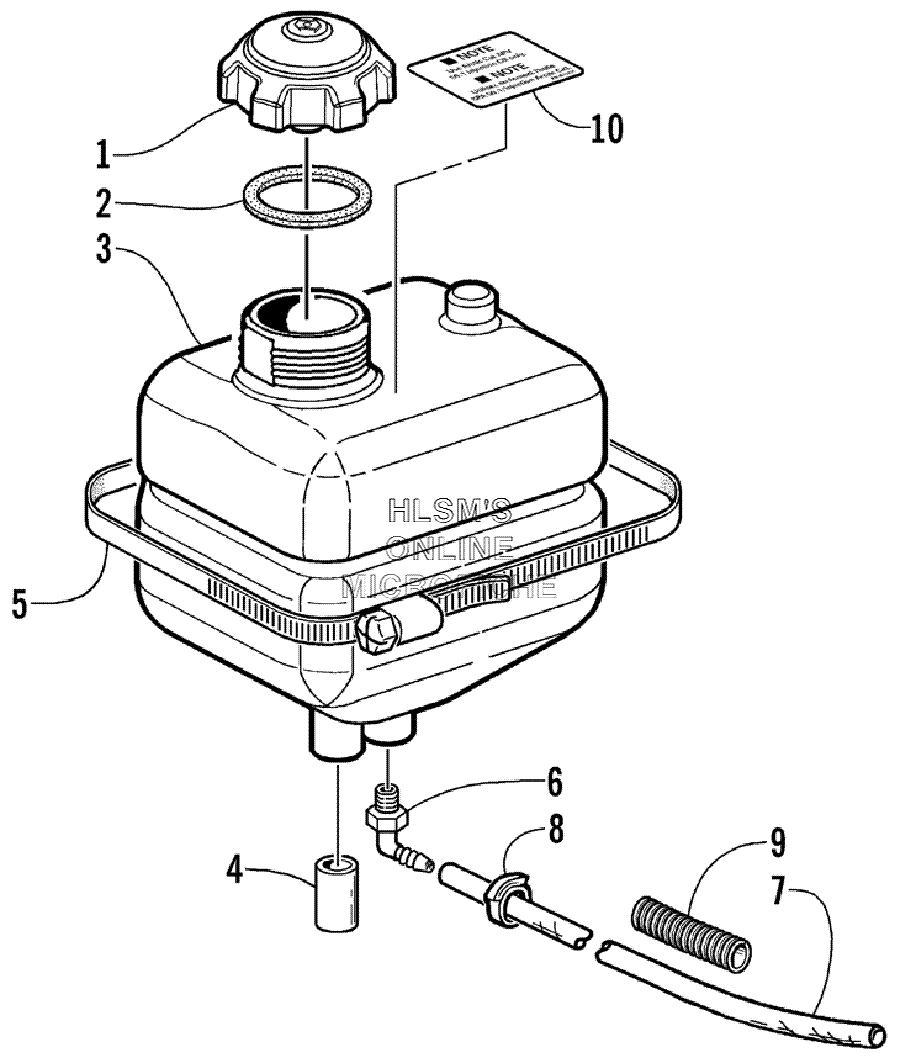

OIL TANK ASSY. для Arctic Cat ZR 440 SNO PRO (CROSS COUNTRY - USA) - 2001 года выпуска
-
№АртикулНазвание
-
10670-871 CAP, OIL TANK (INC. 2)CAP, OIL TANK (INC. 2)
-
20109-733 SEAL, CAP, OIL TANKSEAL, CAP, OIL TANK
-
30670-917 TANK, OILTANK, OIL
-
40619-519 SUPPORT, OIL TANKSUPPORT, OIL TANK
-
50623-743 CLAMP, OIL TANKCLAMP, OIL TANK
-
60670-924 FITTING, ELBOW, 90°FITTING, ELBOW, 90°
-
70610-015 HOSE, OIL/DRAIN (100 FT)HOSE, OIL/DRAIN (100 FT)
-
70610-016 HOSE, OIL/DRAIN (25 FT)HOSE, OIL/DRAIN (25 FT)
-
80124-045 CLAMP, HOSECLAMP, HOSE
-
90716-546 LOOM, PROTECTIVELOOM, PROTECTIVE
-
104611-224 DECAL, OIL TANKDECAL, OIL TANK
