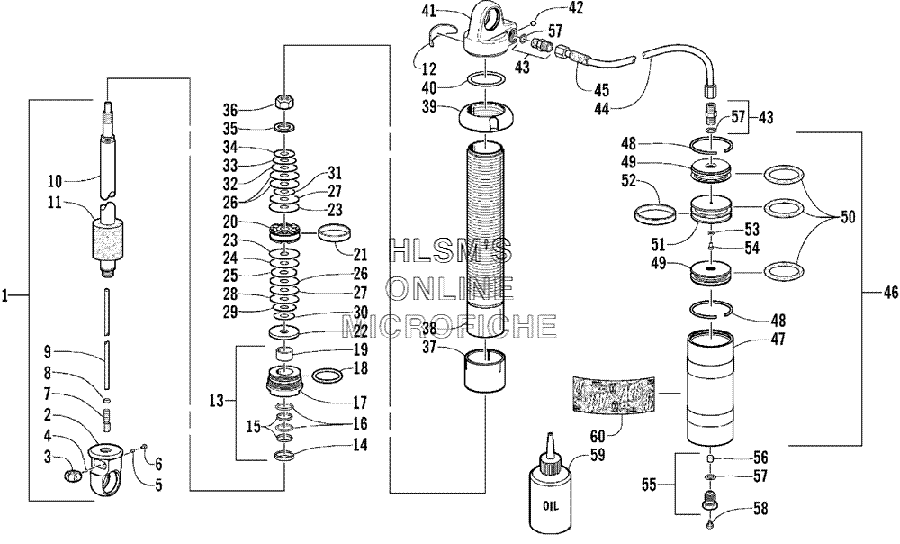

FRONT SUSPENSION SHOCK ABSORBER (CROSS COUNTRY) для Arctic Cat ZR 440 SNO PRO (CROSS COUNTRY - USA) - 2001 года выпуска

  • №
    Артикул
    Название
  • -
    0703-838 COMPLETE SHOCK ABSORBER (RIGHT)
    COMPLETE SHOCK ABSORBER (RIGHT)
  • -
    0703-839 COMPLETE SHOCK ABSORBER (LEFT)
    COMPLETE SHOCK ABSORBER (LEFT)
  • -
    2639-125 REBUILD KIT
    REBUILD KIT
  • 1
    0703-918 ROD, SHOCK (CHROME) (INC. 2, 10)
    ROD, SHOCK (CHROME) (INC. 2, 10)
  • 2
    1603-532 EYELET, SHOCK
    EYELET, SHOCK
  • 3
    1604-868 DIAL, ADJUSTER, REBOUND
    DIAL, ADJUSTER, REBOUND
  • 4
    1604-872 BALL
    BALL
  • 5
    1604-873 PLUG SILCONE
    PLUG SILCONE
  • 6
    1604-871 SCREW, ADJUSTER DIAL
    SCREW, ADJUSTER DIAL
  • 7
    1604-870 ADJUSTER, REBOUND
    ADJUSTER, REBOUND
  • 8
    1604-869 O-RING, ADJUSTER, REBOUND
    O-RING, ADJUSTER, REBOUND
  • 9
    1603-535 ROD, ADJUSTER, REBOUND
    ROD, ADJUSTER, REBOUND
  • 10
    1603-534 ROD, SHOCK (CHROME)
    ROD, SHOCK (CHROME)
  • 11
    1603-533 BUMPER, JOUNCE
    BUMPER, JOUNCE
  • 12
    3611-007 DECAL, WARNING, SHOCK
    DECAL, WARNING, SHOCK
  • 13
    0704-664 COVER, SLIDING, ASSY. (INC. 14, 19)
    COVER, SLIDING, ASSY. (INC. 14, 19)
  • 14
    1604-882 SEAL, SCRAPER
    SEAL, SCRAPER
  • 15
    1604-884 O-RING, SEAL, STEP
    O-RING, SEAL, STEP
  • 16
    1604-883 SEAL, STEP
    SEAL, STEP
  • 17
    1604-991 COVER, SLIDING, SEAL HEAD
    COVER, SLIDING, SEAL HEAD
  • 18
    1604-881 O-RING, COVER, SLIDING
    O-RING, COVER, SLIDING
  • 19
    1604-885 BUSHING
    BUSHING
  • 20
    1604-934 PISTON, 35 MM
    PISTON, 35 MM
  • 21
    1604-888 RING, SLIDE, 35 MM
    RING, SLIDE, 35 MM
  • 22
    1603-595 WASHER, TOP OUT
    WASHER, TOP OUT
  • 23
    3603-058 VALVE, SHOCK 33 MM X 0.20 MM
    VALVE, SHOCK 33 MM X 0.20 MM
  • 24
    3603-045 VALVE, SHOCK 28 MM X 0.15 MM
    VALVE, SHOCK 28 MM X 0.15 MM
  • 25
    3603-052 VALVE, SHOCK 22 MM X 0.20 MM
    VALVE, SHOCK 22 MM X 0.20 MM
  • 26
    3603-057 VALVE, SHOCK 31 MM X 0.20 MM
    VALVE, SHOCK 31 MM X 0.20 MM
  • 27
    3603-047 VALVE, SHOCK 31 MM X 0.15 MM
    VALVE, SHOCK 31 MM X 0.15 MM
  • 28
    3603-055 VALVE, SHOCK 28 MM X 0.20 MM
    VALVE, SHOCK 28 MM X 0.20 MM
  • 29
    3603-054 VALVE, SHOCK 26 MM X 0.20 MM
    VALVE, SHOCK 26 MM X 0.20 MM
  • 30
    3603-060 VALVE, SHOCK 18 MM X 0.25 MM
    VALVE, SHOCK 18 MM X 0.25 MM
  • 31
    3603-042 VALVE, SHOCK 22 MM X 0.15 MM
    VALVE, SHOCK 22 MM X 0.15 MM
  • 32
    3603-075 VALVE, SHOCK 28 MM X 0.30 MM
    VALVE, SHOCK 28 MM X 0.30 MM
  • 33
    3603-074 VALVE, SHOCK 26 MM X 0.30 MM
    VALVE, SHOCK 26 MM X 0.30 MM
  • 34
    3603-073 VALVE, SHOCK 24 MM X 0.30 MM
    VALVE, SHOCK 24 MM X 0.30 MM
  • 35
    1604-968 WASHER, BACKUP
    WASHER, BACKUP
  • 36
    1604-961 NUT, LOCK
    NUT, LOCK
  • 37
    1603-271 SLEEVE, WEAR
    SLEEVE, WEAR
  • 38
    1603-537 BODY, SHOCK
    BODY, SHOCK
  • 39
    0603-960 NUT, ADJUSTING, SPRING
    NUT, ADJUSTING, SPRING
  • 40
    1604-892 O-RING, END CAP
    O-RING, END CAP
  • 41
    1603-540 END CAP (0703, 838)
    END CAP (0703, 838)
  • 41
    1603-541 END CAP (0703, 839)
    END CAP (0703, 839)
  • 42
    1604-894 BALL
    BALL
  • 43
    1603-542 FITTING, SHOCK (INC. ONE NO. 57)
    FITTING, SHOCK (INC. ONE NO. 57)
  • 44
    1603-543 HOSE, SHOCK
    HOSE, SHOCK
  • 45
    1604-928 WRAP, HEAT SHRINK
    WRAP, HEAT SHRINK
  • 46
    0704-654 RESERVOIR ASSY. (INC. 47, 54)
    RESERVOIR ASSY. (INC. 47, 54)
  • 47
    1603-545 BODY, RESERVOIR
    BODY, RESERVOIR
  • 48
    1603-547 RING, RETAINING
    RING, RETAINING
  • 49
    1603-548 COVER, RESERVOIR
    COVER, RESERVOIR
  • 50
    1603-549 O-RING
    O-RING
  • 51
    1603-551 PISTON, RESERVOIR
    PISTON, RESERVOIR
  • 52
    1603-550 RING, SLIDE
    RING, SLIDE
  • 53
    1603-552 SEAL, SELF (CENTERING)
    SEAL, SELF (CENTERING)
  • 54
    1603-553 SCREW, BLEED
    SCREW, BLEED
  • 55
    0704-383 VALVE, PRESSURE, ASSY. (INC. 56 AND ONE NO. 57)
    VALVE, PRESSURE, ASSY. (INC. 56 AND ONE NO. 57)
  • 57
    1604-284 O-RING
    O-RING
  • 58
    0624-433 SCREW, MACHINE
    SCREW, MACHINE
  • 59
    1639-245 OIL, GAS SHOCK, 6 QT CASE
    OIL, GAS SHOCK, 6 QT CASE
  • 60
    4611-261 DECAL, "ACT", SHOCK
    DECAL, "ACT", SHOCK
