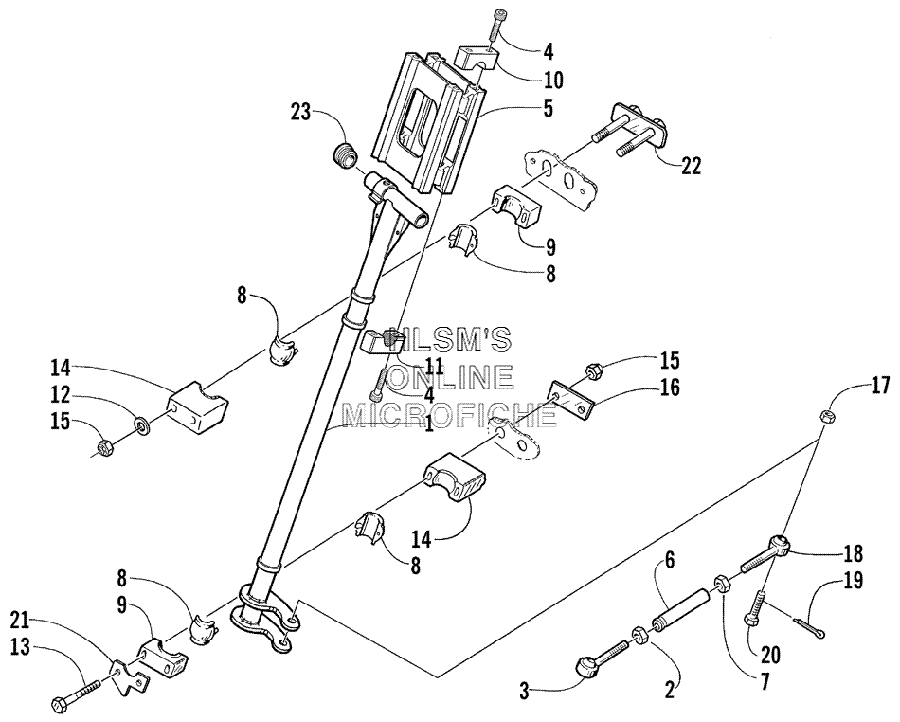

STEERING POST ASSY. для Arctic Cat ZR 440 SNO PRO (CROSS COUNTRY - INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
10705-343 POST, STEERINGPOST, STEERING
-
20623-294 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
30605-504 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
-
40623-872 SCREW, CAPSCREW, CAP
-
50605-513 RISER, HANDLEBAR, 4.44 IN. (CROSS COUNTRY)RISER, HANDLEBAR, 4.44 IN. (CROSS COUNTRY)
-
60605-296 TUBE, TIE RODTUBE, TIE ROD
-
70123-917 NUT, HEX (LEFT)NUT, HEX (LEFT)
-
80605-378 BEARING, HALFBEARING, HALF
-
90705-257 CAP, BEARING HOUSINGCAP, BEARING HOUSING
-
100705-355 CAP, ADJUSTING BLOCK (UPPER)CAP, ADJUSTING BLOCK (UPPER)
-
110605-495 CAP, ADJUSTING BLOCK (LOWER)CAP, ADJUSTING BLOCK (LOWER)
-
128050-247 WASHERWASHER
-
130623-224 SCREW, CAPSCREW, CAP
-
140705-206 HOUSING, BEARINGHOUSING, BEARING
-
158040-426 NUT, LOCKNUT, LOCK
-
160605-385 PLATE, BACKINGPLATE, BACKING
-
170623-026 NUT, LOCKNUT, LOCK
-
180605-505 BALL JOINT, TIE ROD (LEFT)BALL JOINT, TIE ROD (LEFT)
-
190623-175 PIN, COTTERPIN, COTTER
-
200623-436 SCREW, CAPSCREW, CAP
-
210605-372 STOP, STEERING POSTSTOP, STEERING POST
-
220605-427 PLATE, BACKINGPLATE, BACKING
-
231606-079 CLOSURE, TUBECLOSURE, TUBE
