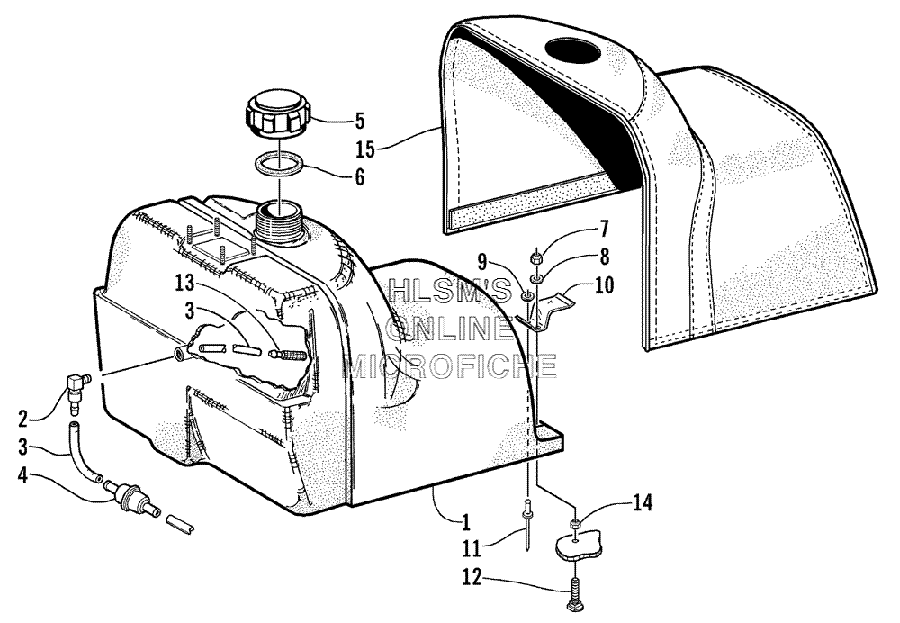

GAS TANK AND COVER для Arctic Cat ZR 440 SNO PRO (CROSS COUNTRY - INTERNATIONAL) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-401 TANK, GAS (INC. 3 AND 13)
    TANK, GAS (INC. 3 AND 13)
  • 2
    0670-762 FITTING, ELBOW
    FITTING, ELBOW
  • 3
    0610-017 HOSE, GASLINE (100 FT)
    HOSE, GASLINE (100 FT)
  • 3
    0610-008 HOSE, GASLINE (25 FT)
    HOSE, GASLINE (25 FT)
  • 4
    0510-335 FILTER, INNER, LINE FUEL
    FILTER, INNER, LINE FUEL
  • 5
    0670-871 CAP, GAS TANK (INC. 6)
    CAP, GAS TANK (INC. 6)
  • 6
    0109-733 SEAL, GAS CAP
    SEAL, GAS CAP
  • 7
    8040-366 NUT, LOCK
    NUT, LOCK
  • 8
    8050-212 WASHER
    WASHER
  • 9
    0623-759 WASHER
    WASHER
  • 10
    1606-435 BRACKET, SEAT, HOLD, DOWN
    BRACKET, SEAT, HOLD, DOWN
  • 11
    8060-848 RIVET
    RIVET
  • 12
    0623-740 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 13
    0510-358 STRAINER, GAS TANK
    STRAINER, GAS TANK
  • 14
    8041-366 NUT, LOCK
    NUT, LOCK
  • 15
    0716-862 COVER, GAS TANK
    COVER, GAS TANK
