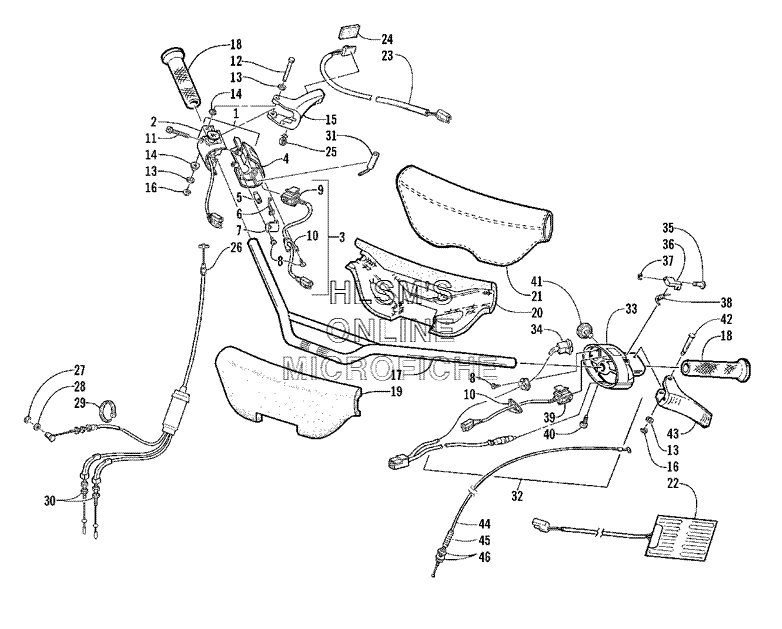

HANDLEBAR AND CONTROLS для Arctic Cat Z 440 - 2001 года выпуска
-
№АртикулНазвание
-
10609-483 CONTROL, THROTTLE (INC 2-11)CONTROL, THROTTLE (INC 2-11)
-
20609-493 CONTROL, THROTTLE - STOP SWITCH HALF (INC TWO NO 8)CONTROL, THROTTLE - STOP SWITCH HALF (INC TWO NO 8)
-
30609-499 CONTROL, THROTTLE - THUMBWARMER HALF (INC 3-10)CONTROL, THROTTLE - THUMBWARMER HALF (INC 3-10)
-
40609-494 CONTROL, THROTTLE - THUMBWARMER W/O COMPONENTSCONTROL, THROTTLE - THUMBWARMER W/O COMPONENTS
-
50609-497 PLUG, RUBBERPLUG, RUBBER
-
60609-498 CLIP, RETAINING - THROTTLE CABLECLIP, RETAINING - THROTTLE CABLE
-
70609-496 PLATE, COVERPLATE, COVER
-
80609-312 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
90609-384 SWITCH, THUMBWARMER ASSEMBLY (INC THREE NO 8 AND ONE NO 10)SWITCH, THUMBWARMER ASSEMBLY (INC THREE NO 8 AND ONE NO 10)
-
100609-378 PLATE, COVERPLATE, COVER
-
110609-492 SCREW, MACHINESCREW, MACHINE
-
120609-317 AXLE, LEVER - THROTTLEAXLE, LEVER - THROTTLE
-
130609-036 WASHERWASHER
-
140609-501 WASHER, SHOULDER - THROTTLEWASHER, SHOULDER - THROTTLE
-
150609-363 LEVER, THROTTLELEVER, THROTTLE
-
160609-040 RING, RETAININGRING, RETAINING
-
170705-360 HANDLEBARHANDLEBAR
-
182606-084 GRIP, HANDLEBARGRIP, HANDLEBAR
-
190605-354 PAD, HANDLEBAR - FRONTPAD, HANDLEBAR - FRONT
-
200605-353 PAD, HANDLEBAR - REARPAD, HANDLEBAR - REAR
-
210705-285 WRAP, HANDLEBARWRAP, HANDLEBAR
-
220609-374 ELEMENT, HANDWARMERELEMENT, HANDWARMER
-
230609-372 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
240617-248 PAD, INSULATORPAD, INSULATOR
-
250623-262 CLIP, WIRECLIP, WIRE
-
260687-059 CABLE, THROTTLECABLE, THROTTLE
-
270124-057 E-RINGE-RING
-
280124-056 WASHERWASHER
-
290123-788 CABLE TIE - 7 IN.CABLE TIE - 7 IN.
-
300623-464 NUT, LOCKING - THROTTLE CABLENUT, LOCKING - THROTTLE CABLE
-
311639-963 TOOL, REMOVAL - KIT - THROTTLE CABLETOOL, REMOVAL - KIT - THROTTLE CABLE
-
320609-393 SWITCH, BRAKE - ASSEMBLY (INC SEVEN NO 7 ONE NO 10 AND 33-41)SWITCH, BRAKE - ASSEMBLY (INC SEVEN NO 7 ONE NO 10 AND 33-41)
-
330609-478 HOUSING, BRAKE SWITCHHOUSING, BRAKE SWITCH
-
340609-452 SWITCH, DIMMER - BRAKESWITCH, DIMMER - BRAKE
-
350609-050 PIN, ACTUATORPIN, ACTUATOR
-
360609-314 ACTUATOR, BRAKE - PARKINGACTUATOR, BRAKE - PARKING
-
370609-051 RING, RETAININGRING, RETAINING
-
380609-313 SPRING, ACTUATORSPRING, ACTUATOR
-
390609-385 SWITCH, HANDWARMER ASSEMBLY (INC THREE NO 8 AND ONE NO 10)SWITCH, HANDWARMER ASSEMBLY (INC THREE NO 8 AND ONE NO 10)
-
400609-085 SCREW, MACHINESCREW, MACHINE
-
410609-474 KNOB, DIMMER SWITCHKNOB, DIMMER SWITCH
-
420609-315 AXLE, LEVER - BRAKEAXLE, LEVER - BRAKE
-
430609-266 LEVER, BRAKELEVER, BRAKE
-
440687-089 CABLE, BRAKECABLE, BRAKE
-
450109-194 SPRING, BRAKE CABLESPRING, BRAKE CABLE
-
460123-406 NUT, FLANGENUT, FLANGE
