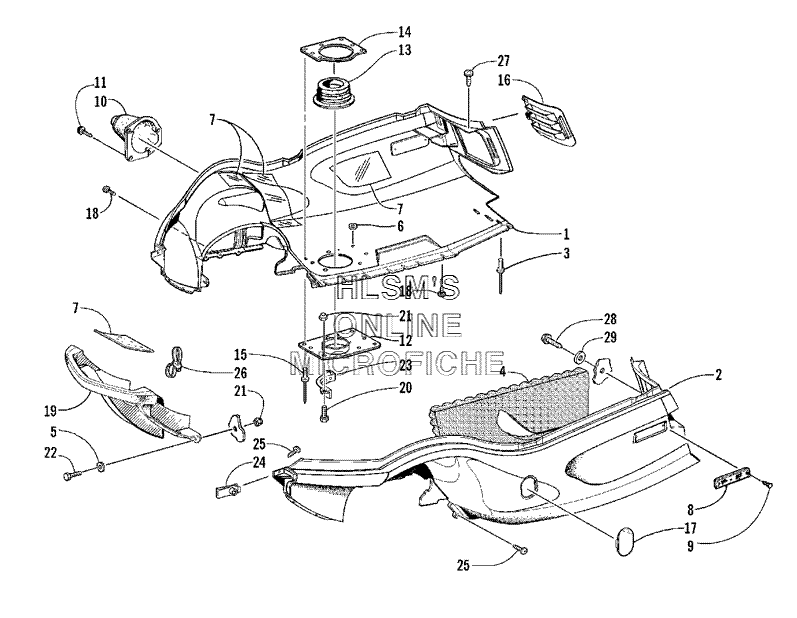

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat Z 440 - 2001 года выпуска`
-
№АртикулНазвание
-
11706-110 BELLY PAN - RIGHTBELLY PAN - RIGHT
-
21706-141 BELLY PAN - LEFTBELLY PAN - LEFT
-
38061-508 RIVETRIVET
-
40617-315 FOAM, BELLY PAN - LEFTFOAM, BELLY PAN - LEFT
-
58050-222 WASHERWASHER
-
60123-149 WASHERWASHER
-
70619-206 TAPE, FOILTAPE, FOIL
-
80606-526 REFLECTOR, FRONT - YELLOWREFLECTOR, FRONT - YELLOW
-
90623-269 CLIP, RETAININGCLIP, RETAINING
-
100605-332 BOOT, STEERING - RIGHTBOOT, STEERING - RIGHT
-
100605-333 BOOT, STEERING - LEFTBOOT, STEERING - LEFT
-
110623-564 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
120612-618 RING, EXHAUST OUTLET - LOWERRING, EXHAUST OUTLET - LOWER
-
131612-027 BOOT, EXHAUSTBOOT, EXHAUST
-
140612-500 RING, EXHAUST OUTLET - UPPERRING, EXHAUST OUTLET - UPPER
-
158060-508 RIVETRIVET
-
161606-044 LOUVER, AIR-INTAKE - RIGHTLOUVER, AIR-INTAKE - RIGHT
-
161606-045 LOUVER, AIR-INTAKE - LEFTLOUVER, AIR-INTAKE - LEFT
-
171606-767 PANEL, CLUTCH ACCESSPANEL, CLUTCH ACCESS
-
180623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
192606-224 BUMPER, FRONTBUMPER, FRONT
-
208002-040 SCREW, CAPSCREW, CAP
-
218040-366 NUT, LOCKNUT, LOCK
-
228002-041 SCREW, CAPSCREW, CAP
-
230612-498 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
240623-427 NUT, UNUT, U
-
250623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
260623-285 CABLE TIE - DOUBLE LOOPCABLE TIE - DOUBLE LOOP
-
270623-378 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
280623-647 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
290623-184 WASHERWASHER
