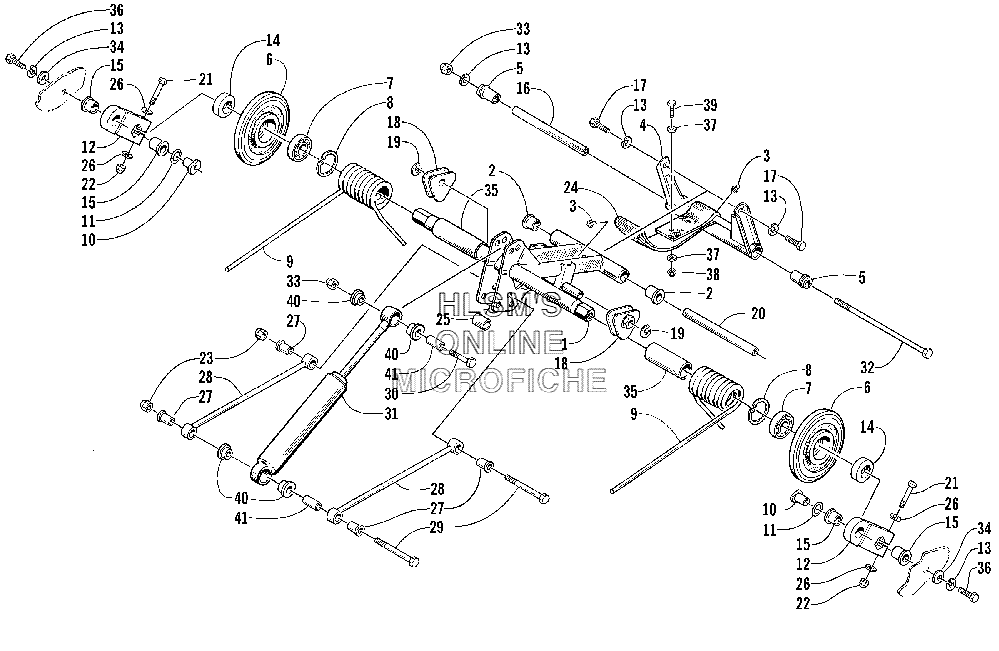

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat PANTHER 550 (USA) - 2001 года выпуска
-
№АртикулНазвание
-
10704-119 ARM, IDLER (INC 2 AND 3)ARM, IDLER (INC 2 AND 3)
-
21604-100 BUSHING, FLAREDBUSHING, FLARED
-
39916-963 FITTING, GREASEFITTING, GREASE
-
40704-459 ARM, REAR (INC 3)ARM, REAR (INC 3)
-
51604-307 AXLE, SERRATEDAXLE, SERRATED
-
60604-374 WHEEL, IDLER (INC 7-8)WHEEL, IDLER (INC 7-8)
-
70107-598 BEARINGBEARING
-
80123-798 RING, RETAININGRING, RETAINING
-
91604-604 SPRING, SUSPENSION - RIGHTSPRING, SUSPENSION - RIGHT
-
91604-605 SPRING, SUSPENSION - LEFTSPRING, SUSPENSION - LEFT
-
101604-181 AXLE, POWDER METALAXLE, POWDER METAL
-
111604-187 WASHER, PIVOT IDLER ARMWASHER, PIVOT IDLER ARM
-
120704-014 ARM, PIVOT IDLER (INC 15)ARM, PIVOT IDLER (INC 15)
-
138051-277 WASHER, LOCKWASHER, LOCK
-
141604-507 SPACER, PIVOT IDLER ARMSPACER, PIVOT IDLER ARM
-
151604-202 BUSHING, FLAREDBUSHING, FLARED
-
160604-194 TUBE, AXLETUBE, AXLE
-
178012-223 SCREW, CAPSCREW, CAP
-
181604-204 BLOCK, SPRING ADJUSTER - RIGHTBLOCK, SPRING ADJUSTER - RIGHT
-
181604-205 BLOCK, SPRING ADJUSTER - LEFTBLOCK, SPRING ADJUSTER - LEFT
-
190623-138 RING, RETAINERRING, RETAINER
-
201604-208 AXLE, ALUMINUMAXLE, ALUMINUM
-
218002-138 SCREW, CAPSCREW, CAP
-
228040-426 NUT, LOCKNUT, LOCK
-
238041-486 NUT, LOCKNUT, LOCK
-
241604-298 STRAP, LIMITERSTRAP, LIMITER
-
250604-298 SPACER, SHOCK LINKSPACER, SHOCK LINK
-
268050-242 WASHERWASHER
-
271604-498 AXLE, LINK - FLANGEDAXLE, LINK - FLANGED
-
280704-334 LINK, INNER CARRIAGELINK, INNER CARRIAGE
-
298002-233 SCREW, CAPSCREW, CAP
-
308002-227 SCREW, CAPSCREW, CAP
-
311604-460 SHOCK ABSORBER - REAR ARM (INC 40-41)SHOCK ABSORBER - REAR ARM (INC 40-41)
-
320623-105 SCREW, CAPSCREW, CAP
-
338040-486 NUT, LOCKNUT, LOCK
-
340623-044 WASHERWASHER
-
350114-254 SLEEVE, SPRINGSLEEVE, SPRING
-
368002-224 SCREW, CAPSCREW, CAP
-
370623-184 WASHERWASHER
-
388040-366 NUT, LOCKNUT, LOCK
-
398002-042 SCREW, CAPSCREW, CAP
-
400604-321 BUSHING, SHOCKBUSHING, SHOCK
-
411604-185 SLEEVE, SHOCKSLEEVE, SHOCK
