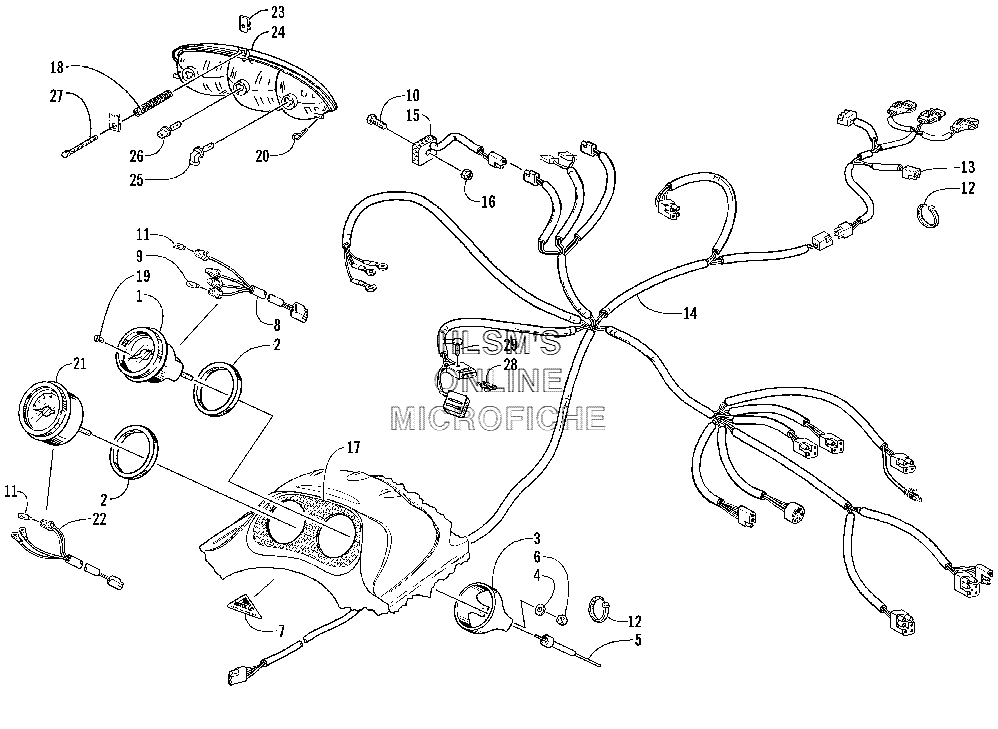

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat PANTHER 550 (USA) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    0620-238 SPEEDOMETER (INC 8, 11 AND 19)
    SPEEDOMETER (INC 8, 11 AND 19)
  • 2
    0620-135 RING, RUBBER CUSHION
    RING, RUBBER CUSHION
  • 3
    0620-134 RING, RETAINING BRACKET
    RING, RETAINING BRACKET
  • 4
    8050-212 WASHER
    WASHER
  • 5
    0620-113 CABLE, SPEEDOMETER
    CABLE, SPEEDOMETER
  • 6
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 7
    3611-611 DECAL, ''MADE IN U.S.A.'' - DOMED
    DECAL, ''MADE IN U.S.A.'' - DOMED
  • 8
    0620-151 HARNESS, BULB - SPEEDOMETER
    HARNESS, BULB - SPEEDOMETER
  • 9
    0620-149 BULB, INDICATOR
    BULB, INDICATOR
  • 10
    8002-045 SCREW, CAP
    SCREW, CAP
  • 11
    0230-020 BULB, INSTRUMENT
    BULB, INSTRUMENT
  • 12
    0123-788 CABLE TIE - 7 IN.
    CABLE TIE - 7 IN.
  • 13
    0686-515 HARNESS, HOOD
    HARNESS, HOOD
  • 14
    0686-670 HARNESS, MAIN
    HARNESS, MAIN
  • 15
    0630-105 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 16
    8040-366 NUT, LOCK
    NUT, LOCK
  • 17
    3611-490 DECAL, INSTRUMENT - HOOD
    DECAL, INSTRUMENT - HOOD
  • 18
    0623-466 SPRING, ADJUSTER
    SPRING, ADJUSTER
  • 19
    0620-073 KNOB, TRIPMETER
    KNOB, TRIPMETER
  • 20
    0623-847 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 21
    0620-236 TACHOMETER
    TACHOMETER
  • 22
    0620-215 HARNESS, TACHOMETER
    HARNESS, TACHOMETER
  • 23
    0623-757 NUT, U
    NUT, U
  • 24
    0609-250 LENS/REFLECTOR - HEADLIGHT
    LENS/REFLECTOR - HEADLIGHT
  • 25
    0609-251 BULB, HEADLIGHT - HIGH BEAM
    BULB, HEADLIGHT - HIGH BEAM
  • 26
    0609-252 BULB, HEADLIGHT - LOW BEAM
    BULB, HEADLIGHT - LOW BEAM
  • 27
    0623-467 SCREW, THUMB
    SCREW, THUMB
  • 28
    0630-100 FUSE, 7.5 AMP
    FUSE, 7.5 AMP
  • 29
    0623-589 CLIP, RETAINING
    CLIP, RETAINING
