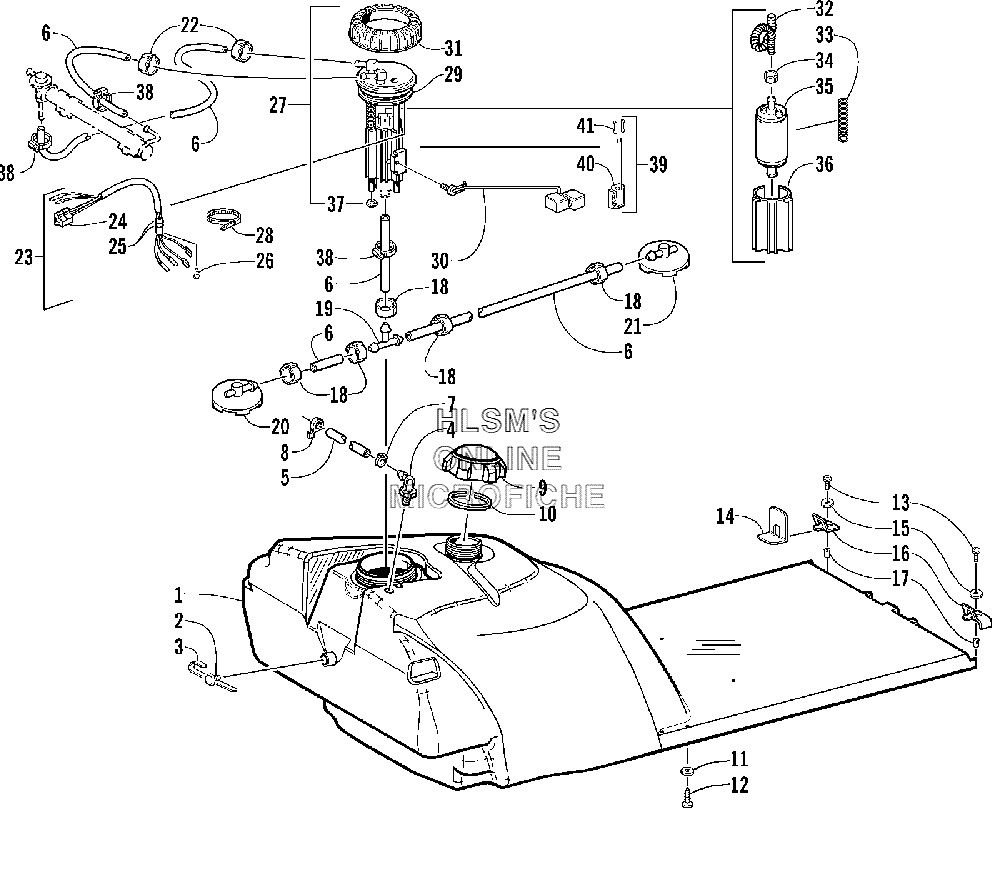

GAS TANK AND FUEL PUMP ASSEMBLY для Arctic Cat PANTERA 580 EFI (USA) - 2001 года выпуска
-
№АртикулНазвание
-
10770-520 TANK, GAS/SEAT-BASE (INC 2-4)TANK, GAS/SEAT-BASE (INC 2-4)
-
20670-243 PLUG, GAS TANKPLUG, GAS TANK
-
30670-289 TAPE, TEFLONTAPE, TEFLON
-
40670-572 VENT, GAS TANKVENT, GAS TANK
-
50610-010 HOSE, VENT - 25 FTHOSE, VENT - 25 FT
-
60610-011 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
70623-063 CLAMP, HOSECLAMP, HOSE
-
80623-101 CLIP, ROUTING - SNAP-INCLIP, ROUTING - SNAP-IN
-
90670-341 CAP, GAS TANK (INC 10)CAP, GAS TANK (INC 10)
-
100109-733 SEAL, GAS CAPSEAL, GAS CAP
-
118050-217 WASHERWASHER
-
120623-309 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
138017-580 SCREW, MACHINESCREW, MACHINE
-
142606-268 GUARD, SEAT - RIGHTGUARD, SEAT - RIGHT
-
142606-269 GUARD, SEAT - LEFTGUARD, SEAT - LEFT
-
158050-222 WASHERWASHER
-
162606-156 BRACKET, HOLD-DOWN - RECEIVER - RIGHTBRACKET, HOLD-DOWN - RECEIVER - RIGHT
-
162606-157 BRACKET, HOLD-DOWN - RECEIVER - LEFTBRACKET, HOLD-DOWN - RECEIVER - LEFT
-
170623-582 INSERTINSERT
-
180610-415 CLAMP, HOSECLAMP, HOSE
-
190670-235 T-FITTINGT-FITTING
-
201670-140 PICKUP, FUELPICKUP, FUEL
-
211670-088 PICKUP, FUELPICKUP, FUEL
-
220610-419 CLAMP, HOSECLAMP, HOSE
-
231670-242 HARNESS, FUEL PUMP (INC 24-25)HARNESS, FUEL PUMP (INC 24-25)
-
240670-380 CONNECTOR, HARNESSCONNECTOR, HARNESS
-
250670-381 O-RINGO-RING
-
261670-155 SCREW, MACHINE - HARNESSSCREW, MACHINE - HARNESS
-
271670-160 PUMP, FUEL - ASSEMBLY (INC 23-26, 29-34 AND 36-37)PUMP, FUEL - ASSEMBLY (INC 23-26, 29-34 AND 36-37)
-
280123-788 CABLE TIE - 7 IN.CABLE TIE - 7 IN.
-
291670-118 SEAL, FUEL PUMP HOUSINGSEAL, FUEL PUMP HOUSING
-
300670-460 ARM, FLOATARM, FLOAT
-
311670-119 NUT, RETAINING - FUEL PUMPNUT, RETAINING - FUEL PUMP
-
321670-154 HOSE, FUEL PUMP - TOPHOSE, FUEL PUMP - TOP
-
331670-156 SPRING, FUEL PUMP ASSEMBLYSPRING, FUEL PUMP ASSEMBLY
-
341670-159 CLAMP, HOSECLAMP, HOSE
-
353005-268 PUMP, FUELPUMP, FUEL
-
361670-238 HOUSING, FUEL PUMPHOUSING, FUEL PUMP
-
371670-157 RING, RETAININGRING, RETAINING
-
380623-373 CLAMP, HOSECLAMP, HOSE
-
392639-386 KIT, FUEL SENSOR (INC. 40-41)KIT, FUEL SENSOR (INC. 40-41)
-
400670-459 ELEMENT, FUEL SENSORELEMENT, FUEL SENSOR
-
410681-017 CONNECTOR, SPLICECONNECTOR, SPLICE
