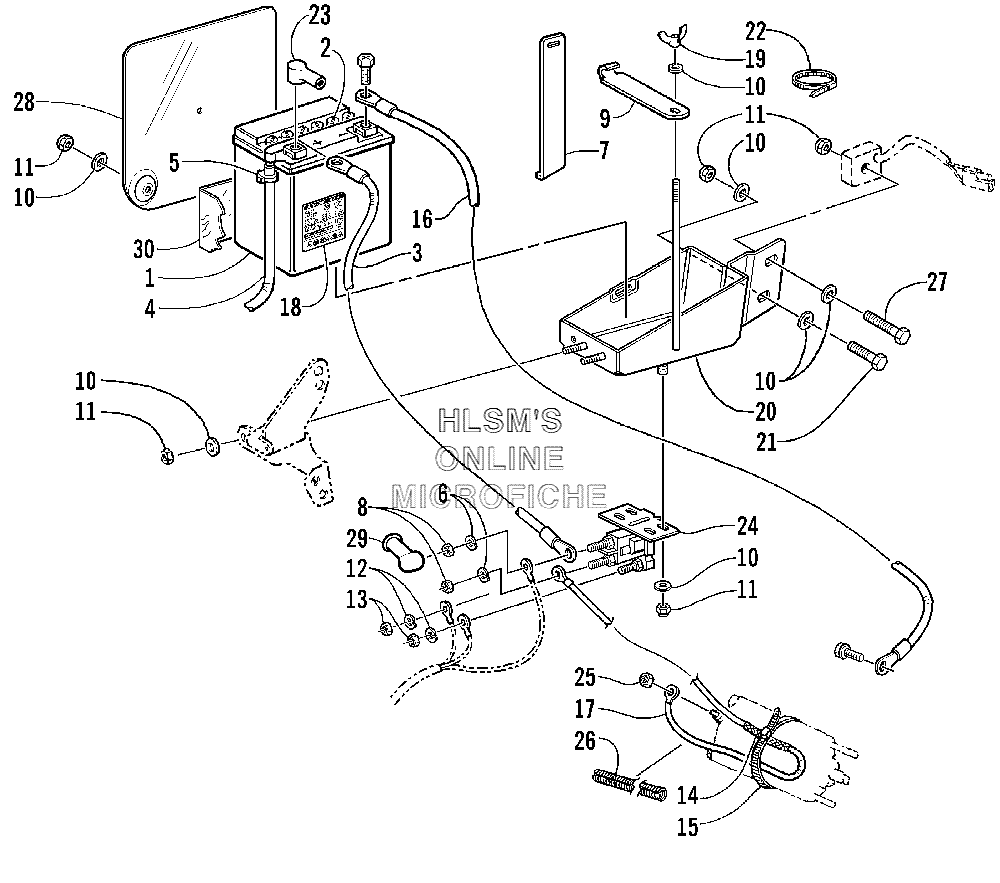

BATTERY- SOLENOID- AND CABLES для Arctic Cat PANTERA 580 EFI (USA) - 2001 года выпуска`
-
№АртикулНазвание
-
10745-047 BATTERY (INC 2 AND 4-5)BATTERY (INC 2 AND 4-5)
-
20645-045 CAP, BATTERYCAP, BATTERY
-
30645-161 CABLE, BATTERY/SOLENOIDCABLE, BATTERY/SOLENOID
-
40645-263 HOSE, BATTERY VENTHOSE, BATTERY VENT
-
50645-152 CLAMP, HOSECLAMP, HOSE
-
68051-242 WASHER, LOCKWASHER, LOCK
-
70645-245 STRAP, BATTERYSTRAP, BATTERY
-
88043-452 NUTNUT
-
90645-243 STRAP, BATTERYSTRAP, BATTERY
-
108050-217 WASHERWASHER
-
118040-366 NUT, LOCKNUT, LOCK
-
128051-152 WASHER, LOCKWASHER, LOCK
-
138042-272 NUTNUT
-
140645-181 TUBE, HEAT PROTECTIONTUBE, HEAT PROTECTION
-
150623-144 CABLE TIE - 17.5 IN.CABLE TIE - 17.5 IN.
-
160645-318 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
170645-115 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
-
180645-151 DECAL, WARNING - BATTERYDECAL, WARNING - BATTERY
-
190623-325 NUT, WINGNUT, WING
-
200745-144 TRAY, BATTERYTRAY, BATTERY
-
218002-040 SCREW, CAPSCREW, CAP
-
220123-788 CABLE TIE - 7 IN.CABLE TIE - 7 IN.
-
230645-019 BOOT, TERMINAL/BATTERYBOOT, TERMINAL/BATTERY
-
240645-196 SOLENOIDSOLENOID
-
250623-122 NUT, LOCKNUT, LOCK
-
260716-391 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
278002-045 SCREW, CAPSCREW, CAP
-
280745-153 SHIELD, HEATSHIELD, HEAT
-
290645-327 BOOT, TERMINALBOOT, TERMINAL
-
300645-082 WRAP, HEAT - BATTERYWRAP, HEAT - BATTERY
