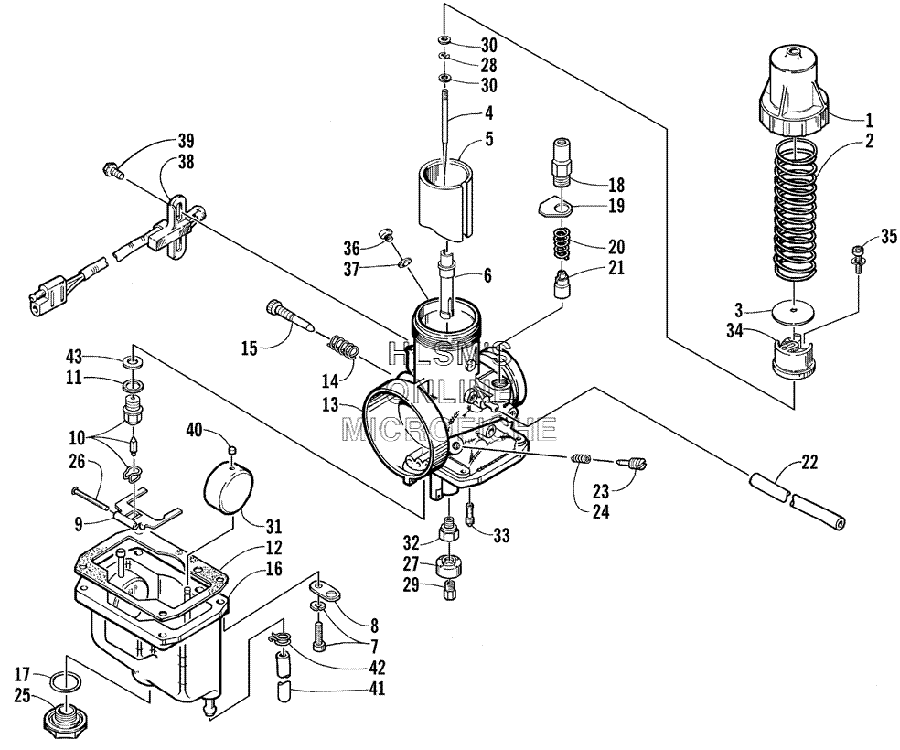

CARBURETOR VM36-19 для Arctic Cat ZRT 600 (Black) - 2000 года выпуска`
-
№АртикулНазвание
-
-0770-380 CARBURETOR VM36, 191 ASSY.CARBURETOR VM36, 191 ASSY.
-
16505-582 TOP, MIXING CHAMBERTOP, MIXING CHAMBER
-
26505-644 SPRING, PISTON VALVESPRING, PISTON VALVE
-
36505-588 PLATE, RETAINING, MAGNETPLATE, RETAINING, MAGNET
-
46505-236 JET NEEDLE 6DH8, 3JET NEEDLE 6DH8, 3
-
56505-877 PISTON VALVE CA 2.0PISTON VALVE CA 2.0
-
66505-595 NEEDLE JET P, 2 (480)NEEDLE JET P, 2 (480)
-
66505-824 NEEDLE JET 0, 8 (480) (5, 000, 9, 000 FT ALT.)NEEDLE JET 0, 8 (480) (5, 000, 9, 000 FT ALT.)
-
66505-931 NEEDLE JET 0, 6 (480) (OVER 9, 000 FT ALT.)NEEDLE JET 0, 6 (480) (OVER 9, 000 FT ALT.)
-
76505-195 SCREW W/SPRING WASHERSCREW W/SPRING WASHER
-
86505-094 PLATE, HOSEPLATE, HOSE
-
96505-638 ARM, FLOATARM, FLOAT
-
106505-171 NEEDLE VALVE ASSY. 1.5NEEDLE VALVE ASSY. 1.5
-
116505-102 WASHER, VALVE SEATWASHER, VALVE SEAT
-
126505-197 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
146505-021 SPRING, THROTTLE STOPSPRING, THROTTLE STOP
-
156505-101 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
166505-646 CHAMBER, FLOATCHAMBER, FLOAT
-
176505-622 WASHERWASHER
-
186505-188 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
196505-193 WASHERWASHER
-
206505-033 SPRING, STARTER PLUNGERSPRING, STARTER PLUNGER
-
216505-035 PLUNGER, STARTERPLUNGER, STARTER
-
226505-280 TUBE, AIR VENTTUBE, AIR VENT
-
236505-019 SCREW, PILOT AIRSCREW, PILOT AIR
-
246505-020 SPRING, PILOT AIR SCREWSPRING, PILOT AIR SCREW
-
256505-634 PLUG, DRAINPLUG, DRAIN
-
266505-153 PIN, FLOAT ARMPIN, FLOAT ARM
-
276505-620 RING, BAFFLERING, BAFFLE
-
286505-610 E, CLIPE, CLIP
-
296505-072 MAIN JET 370**MAIN JET 370**
-
306505-437 WASHER, E, CLIPWASHER, E, CLIP
-
316505-049 FLOATFLOAT
-
326505-199 GUIDE, SCREWGUIDE, SCREW
-
336505-047 PILOT JET 40PILOT JET 40
-
336505-278 PILOT JET 45 (OVER 5, 000 FT ALT.)PILOT JET 45 (OVER 5, 000 FT ALT.)
-
340770-045 BLOCK, MAGNETBLOCK, MAGNET
-
356505-559 SCREW W/WASHERSCREW W/WASHER
-
366505-583 SCREWSCREW
-
376505-399 WASHERWASHER
-
380630-076 SWITCH, MAGNETIC, CARBURETORSWITCH, MAGNETIC, CARBURETOR
-
390623-137 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
406505-010 CAPCAP
-
410610-279 HOSE, DRAINHOSE, DRAIN
-
420623-652 CLAMP, HOSECLAMP, HOSE
-
436505-612 WASHERWASHER
