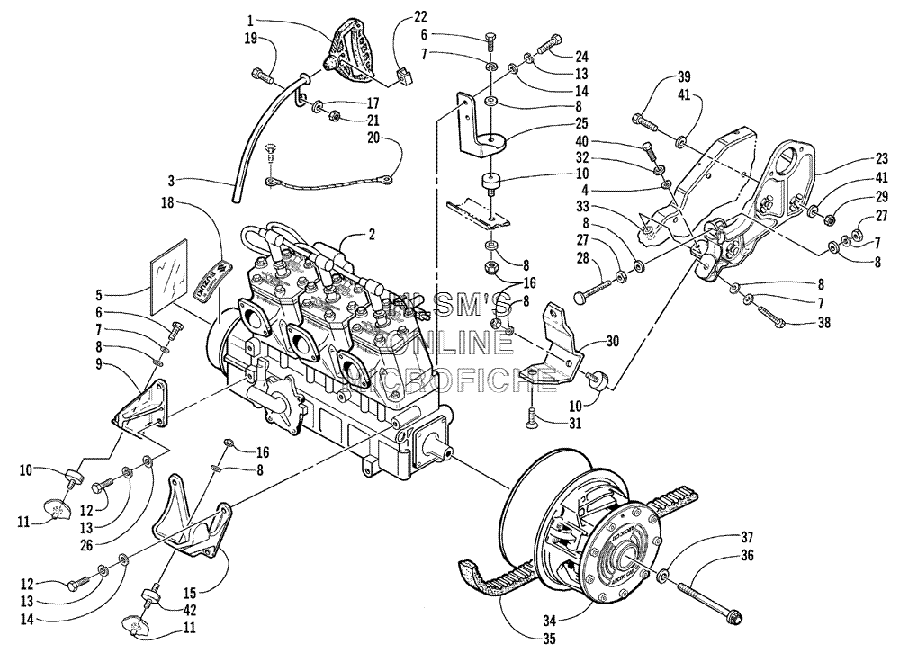

ENGINE AND RELATED PARTS для Arctic Cat ZRT 600 (Black) - 2000 года выпуска`
-
№АртикулНазвание
-
10636-363 HANDLE, RECOILHANDLE, RECOIL
-
20662-258 ENGINE, AA60L6ENGINE, AA60L6
-
30708-088 GUIDE, RECOIL ROPEGUIDE, RECOIL ROPE
-
48050-222 WASHERWASHER
-
50619-206 FOILFOIL
-
68002-222 SCREW, CAPSCREW, CAP
-
78051-277 WASHER, LOCKWASHER, LOCK
-
88050-277 WASHER, FLATWASHER, FLAT
-
90708-010 BRACKET, ENGINE MOUNT (FRONT/RIGHT)BRACKET, ENGINE MOUNT (FRONT/RIGHT)
-
100608-251 MOUNT, ENGINEMOUNT, ENGINE
-
110623-699 INSERT, THREADEDINSERT, THREADED
-
128002-132 SCREW, CAPSCREW, CAP
-
138051-242 WASHER, LOCKWASHER, LOCK
-
148050-247 WASHERWASHER
-
150708-011 BRACKET, ENGINE MOUNT (LEFT/FRONT)BRACKET, ENGINE MOUNT (LEFT/FRONT)
-
168040-486 NUT, LOCKNUT, LOCK
-
178050-217 WASHERWASHER
-
181611-588 DECAL, "POWERED BY", ENGINEDECAL, "POWERED BY", ENGINE
-
198002-045 SCREW, CAPSCREW, CAP
-
200686-099 WIRE, ENGINE GROUNDWIRE, ENGINE GROUND
-
218040-366 NUT, LOCKNUT, LOCK
-
220606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
230708-092 BRACKET, ENGINE MOUNTING/ BEARING SUPPORTBRACKET, ENGINE MOUNTING/ BEARING SUPPORT
-
248012-131 SCREW, CAPSCREW, CAP
-
250708-020 BRACKET, ENGINE MOUNT (RIGHT/REAR)BRACKET, ENGINE MOUNT (RIGHT/REAR)
-
268050-252 WASHERWASHER
-
278042-486 NUTNUT
-
280608-197 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
290623-026 NUT, LOCKNUT, LOCK
-
300708-021 BRACKET, ENGINE MOUNT (LEFT/REAR)BRACKET, ENGINE MOUNT (LEFT/REAR)
-
310623-095 SCREW, MACHINESCREW, MACHINE
-
328051-217 WASHER, LOCKWASHER, LOCK
-
330623-627 INSERTINSERT
-
340725-303 CLUTCH, DRIVECLUTCH, DRIVE
-
350627-020 BELT, DRIVEBELT, DRIVE
-
360623-804 BOLT, CLUTCHBOLT, CLUTCH
-
370623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
388002-226 SCREW, CAPSCREW, CAP
-
390623-628 SCREW, CAPSCREW, CAP
-
408002-040 SCREW, CAPSCREW, CAP
-
410623-044 WASHERWASHER
-
420608-250 MOUNT, ENGINE, DOUBLE MALEMOUNT, ENGINE, DOUBLE MALE
