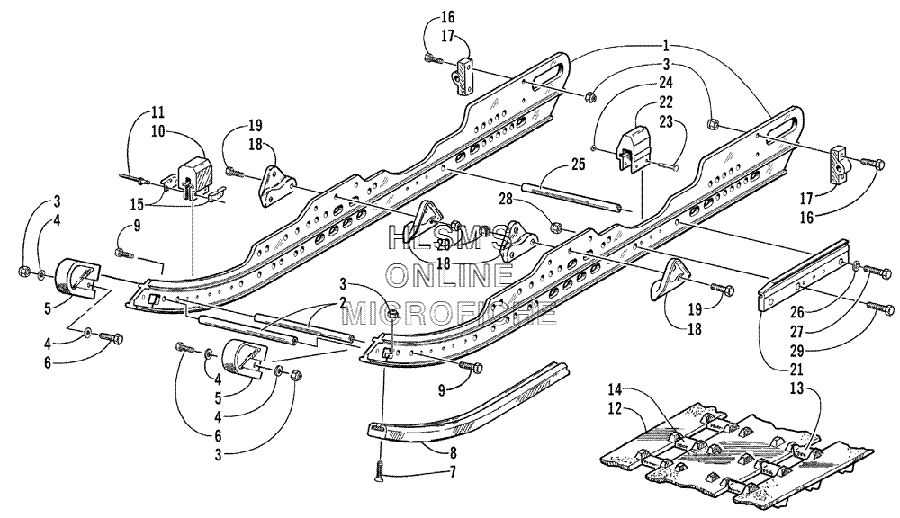

SLIDE RAIL AND TRACK ASSY. для Arctic Cat ZR 700 - LE (Reverse) - 2000 года выпуска`
-
№АртикулНазвание
-
-7994-572 COMPLETE SKID FRAME ASSY.COMPLETE SKID FRAME ASSY.
-
11604-598 RAIL, FORMEDRAIL, FORMED
-
20604-426 SUPPORT, RAILSUPPORT, RAIL
-
38040-366 NUT, LOCKNUT, LOCK
-
48050-217 WASHERWASHER
-
51604-137 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
68002-044 SCREW, CAPSCREW, CAP
-
70123-869 SCREW, MACHINESCREW, MACHINE
-
80604-640 WEARSTRIP, SLIDE RAIL (BLACK)WEARSTRIP, SLIDE RAIL (BLACK)
-
98012-134 SCREW, CAPSCREW, CAP
-
100604-918 PAD, SHOCKPAD, SHOCK
-
118060-633 RIVET, SOLIDRIVET, SOLID
-
121602-004 TRACK ASSY. (INC. 13, 14)TRACK ASSY. (INC. 13, 14)
-
130602-541 . CLIP, GUIDE. CLIP, GUIDE
-
140602-488 . CLIP, WEAR. CLIP, WEAR
-
150604-967 BRACKET, RETAININGBRACKET, RETAINING
-
168002-042 SCREW, CAPSCREW, CAP
-
170704-352 ADJUSTER, TRACKADJUSTER, TRACK
-
180604-913 BRACKET, MOUNTING ARM (FRONT)BRACKET, MOUNTING ARM (FRONT)
-
198002-131 SCREW, CAPSCREW, CAP
-
208040-426 NUT, LOCKNUT, LOCK
-
211604-488 BRACE, RAIL (RIGHT)BRACE, RAIL (RIGHT)
-
211604-489 BRACE, RAIL (LEFT)BRACE, RAIL (LEFT)
-
221604-487 PAD, SHOCK, RUBBERPAD, SHOCK, RUBBER
-
230623-772 RIVET, SOLIDRIVET, SOLID
-
240623-773 NUT, PUSHNUT, PUSH
-
250604-930 AXLEAXLE
-
268051-277 WASHER, LOCKWASHER, LOCK
-
278002-225 SCREW, CAPSCREW, CAP
-
288040-486 NUT, LOCKNUT, LOCK
-
298002-223 SCREW, CAPSCREW, CAP
