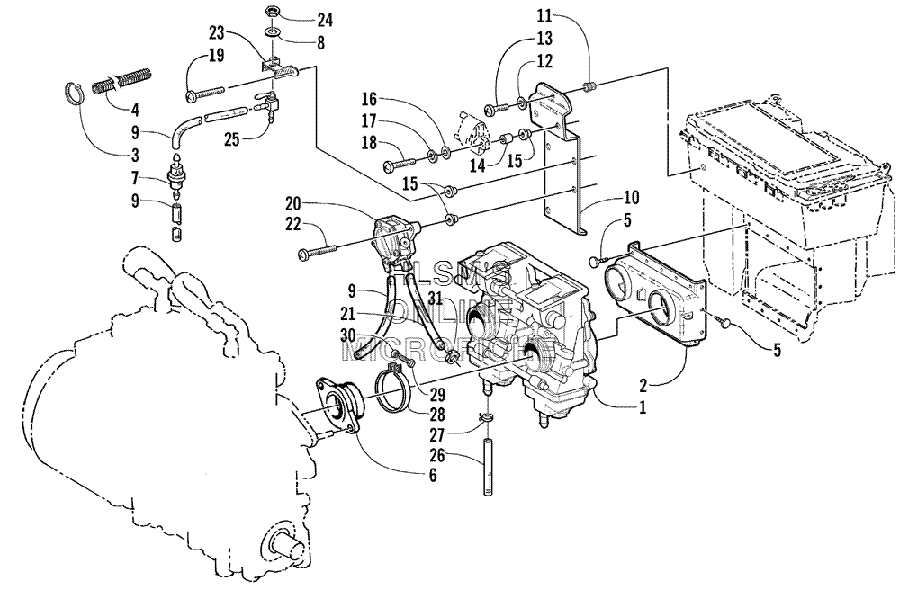

CARBURETOR AND FUEL PUMP ASSY. для Arctic Cat ZR 700 - LE (Reverse) - 2000 года выпуска`
-
№АртикулНазвание
-
11670-099 CARBURETOR, TM40, B73CARBURETOR, TM40, B73
-
20670-988 BOOT, CARBURETORBOOT, CARBURETOR
-
30123-811 TIE, CABLE, 4 IN.TIE, CABLE, 4 IN.
-
40716-546 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
50623-165 CLIP, RETAININGCLIP, RETAINING
-
60670-992 FLANGE, CARBURETORFLANGE, CARBURETOR
-
70510-335 FILTER, FUELFILTER, FUEL
-
80623-288 WASHERWASHER
-
90610-017 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
90610-008 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
100770-310 PLATE, MOUNTINGPLATE, MOUNTING
-
110623-627 INSERT, THREADEDINSERT, THREADED
-
128051-212 WASHER, LOCKWASHER, LOCK
-
138017-577 SCREW, MACHINESCREW, MACHINE
-
140107-630 SPACER, FUEL PUMPSPACER, FUEL PUMP
-
150623-779 INSERTINSERT
-
168050-157 WASHERWASHER
-
178051-152 WASHER, LOCKWASHER, LOCK
-
180623-082 SCREW, MACHINESCREW, MACHINE
-
190623-836 SCREW, MACHINESCREW, MACHINE
-
201670-064 PUMP, FUELPUMP, FUEL
-
210610-007 HOSE, IMPULSE (25 FT)HOSE, IMPULSE (25 FT)
-
220623-833 SCREW, MACHINESCREW, MACHINE
-
230670-837 BRACKET, MOUNTING, FUEL SHUT, OFF VALVEBRACKET, MOUNTING, FUEL SHUT, OFF VALVE
-
240623-287 NUTNUT
-
250670-144 VALVE, FUEL SHUT, OFF (INC. 8 AND 24)VALVE, FUEL SHUT, OFF (INC. 8 AND 24)
-
260610-279 HOSE, DRAINHOSE, DRAIN
-
270623-652 CLAMP, HOSECLAMP, HOSE
-
280670-199 CLAMP, CARBURETOR FLANGE (INC. 29, 30)CLAMP, CARBURETOR FLANGE (INC. 29, 30)
-
296505-819 . SCREW. SCREW
-
300670-209 . SPACER. SPACER
-
310124-045 CLAMP, HOSECLAMP, HOSE
