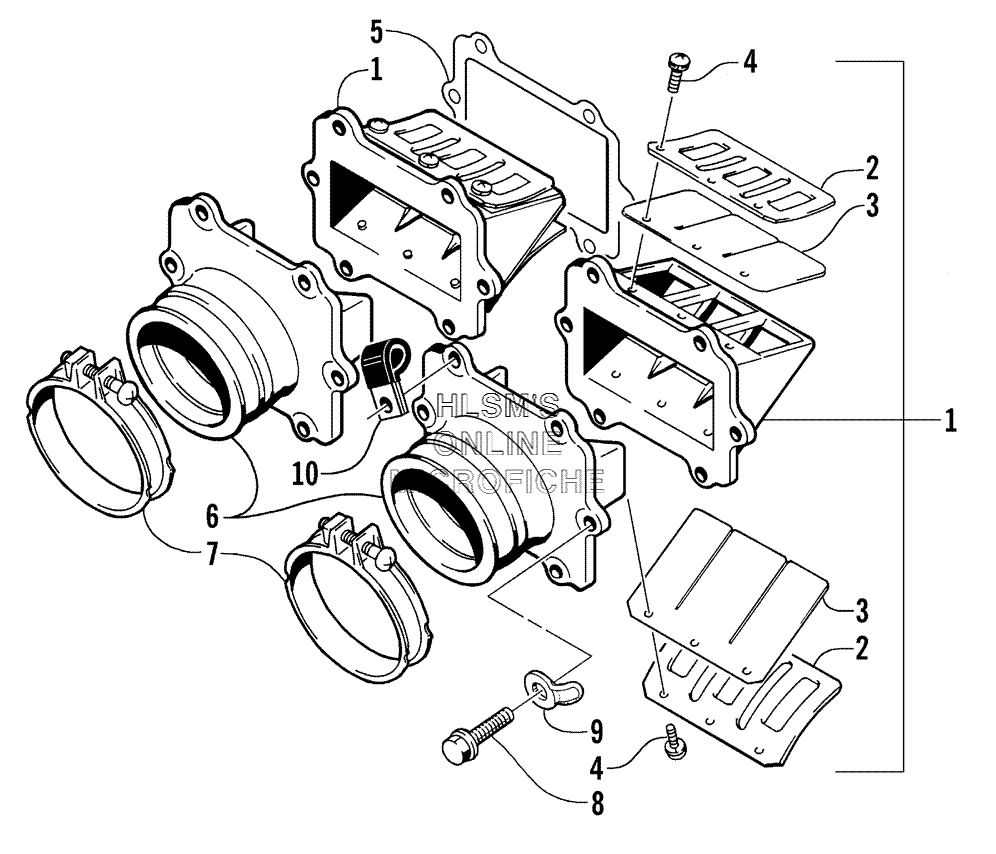

REED VALVE ASSY. для Arctic Cat ZR 600 - 2000 года выпуска
-
№АртикулНазвание
-
13005-124 VALVE, REED, ASSY. (INC. 2, 4)VALVE, REED, ASSY. (INC. 2, 4)
-
23004-176 . STOPPER, REED VALVE. STOPPER, REED VALVE
-
33004-177 . VALVE, REED. VALVE, REED
-
43004-506 . SCREW, REED VALVE. SCREW, REED VALVE
-
53008-076 GASKET, REED VALVEGASKET, REED VALVE
-
63005-415 PIPE, INTAKE ASSY.PIPE, INTAKE ASSY.
-
73004-463 CLAMPCLAMP
-
83004-376 BOLTBOLT
-
91606-599 TAB, CARBURETOR BOOT STRAPTAB, CARBURETOR BOOT STRAP
-
103008-040 CLAMPCLAMP
