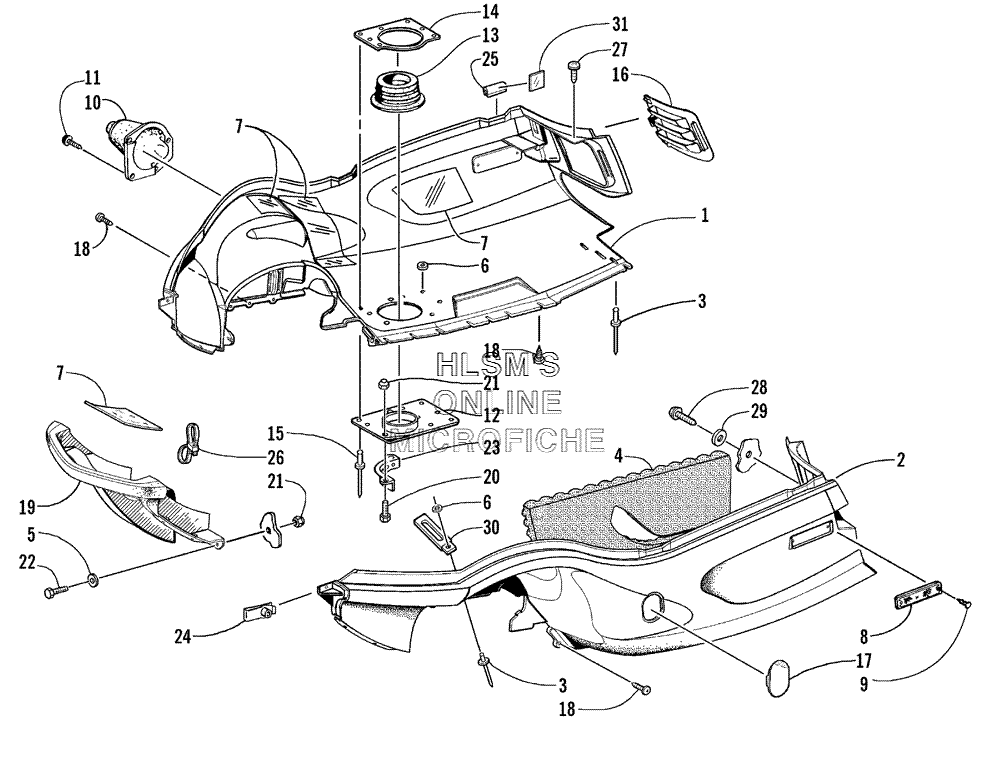

BELLY PAN AND FRONT BUMPER ASSY. для Arctic Cat ZR 600 - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    1706-822 BELLY PAN (RIGHT)
    BELLY PAN (RIGHT)
  • 2
    1706-823 BELLY PAN (LEFT)
    BELLY PAN (LEFT)
  • 3
    8061-508 RIVET
    RIVET
  • 4
    0617-315 FOAM, BELLY PAN (LEFT)
    FOAM, BELLY PAN (LEFT)
  • 5
    8050-222 WASHER
    WASHER
  • 6
    0123-149 WASHER
    WASHER
  • 7
    0619-206 TAPE, FOIL
    TAPE, FOIL
  • 8
    0606-526 REFLECTOR (FRONT) (YELLOW)
    REFLECTOR (FRONT) (YELLOW)
  • 9
    0623-269 CLIP, RETAINING
    CLIP, RETAINING
  • 10
    0605-332 BOOT, STEERING (RIGHT)
    BOOT, STEERING (RIGHT)
  • 10
    0605-333 BOOT, STEERING (LEFT)
    BOOT, STEERING (LEFT)
  • 11
    0623-564 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 12
    0612-760 RING, EXHAUST OUTLET (LOWER)
    RING, EXHAUST OUTLET (LOWER)
  • 13
    0612-747 BOOT, EXHAUST
    BOOT, EXHAUST
  • 14
    0612-761 RING, EXHAUST OUTLET (UPPER)
    RING, EXHAUST OUTLET (UPPER)
  • 15
    8060-508 RIVET
    RIVET
  • 16
    1606-044 LOUVER, AIR, INTAKE (RIGHT)
    LOUVER, AIR, INTAKE (RIGHT)
  • 16
    1606-045 LOUVER, AIR, INTAKE (LEFT)
    LOUVER, AIR, INTAKE (LEFT)
  • 17
    1606-767 PANEL, CLUTCH ACCESS
    PANEL, CLUTCH ACCESS
  • 18
    0623-797 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 19
    1606-949 BUMPER (FRONT)
    BUMPER (FRONT)
  • 20
    8002-040 SCREW, CAP
    SCREW, CAP
  • 21
    8040-366 NUT, LOCK
    NUT, LOCK
  • 22
    8002-041 SCREW, CAP
    SCREW, CAP
  • 23
    0612-498 DEFLECTOR, EXHAUST
    DEFLECTOR, EXHAUST
  • 24
    0623-427 NUT, U
    NUT, U
  • 25
    0619-611 GUIDE, BELLY PAN
    GUIDE, BELLY PAN
  • 26
    0623-285 CABLE TIE, DOUBLE LOOP
    CABLE TIE, DOUBLE LOOP
  • 27
    0623-378 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 28
    0623-647 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 29
    0623-184 WASHER
    WASHER
  • 30
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
  • 31
    2606-007 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
