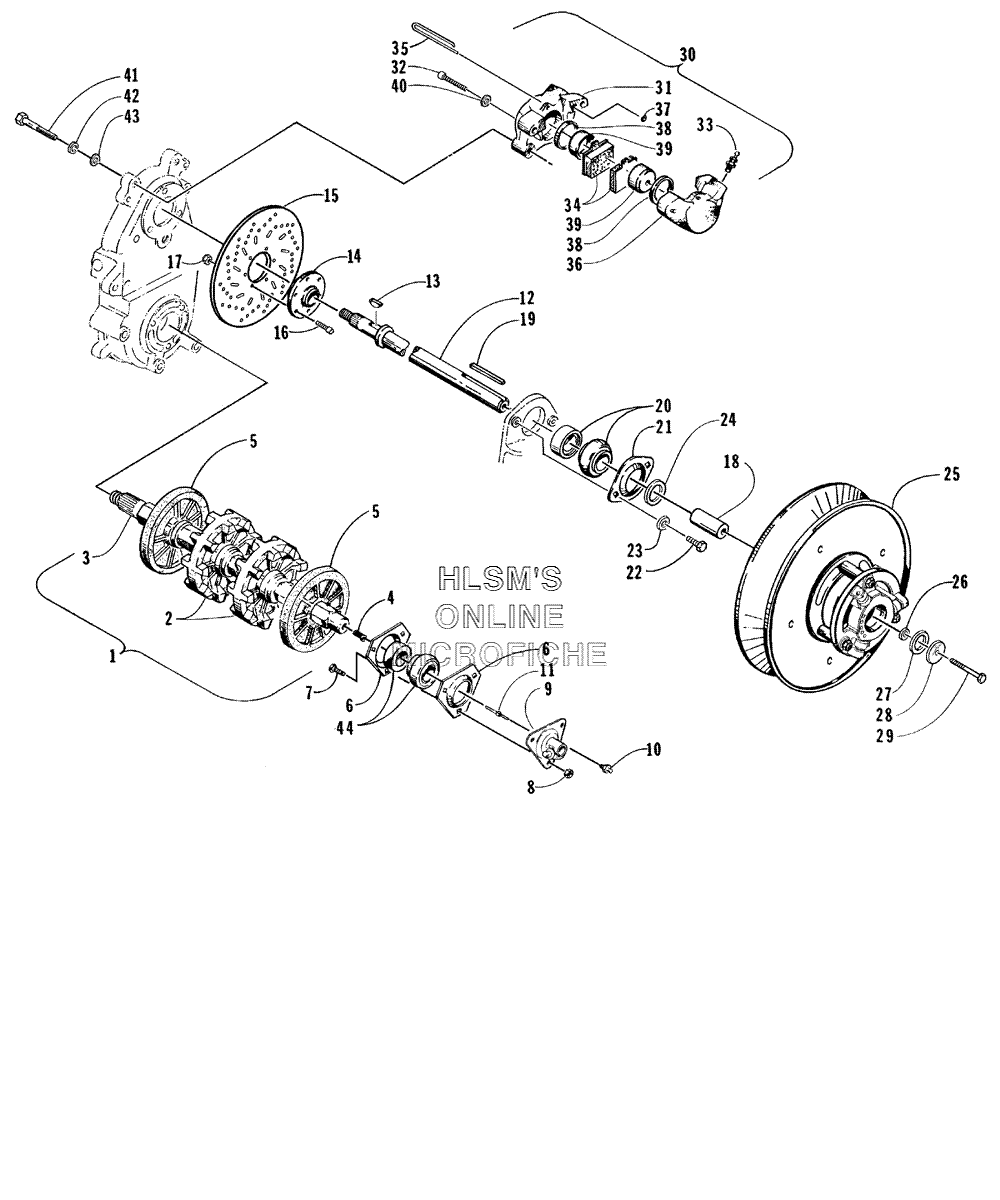

DRIVE TRAIN SHAFTS AND BRAKE ASSY. для Arctic Cat ZR 2K - 2000 года выпуска`
-
№АртикулНазвание
-
10728-040 TRACK DRIVE ASSY. (INC. 2, 5)TRACK DRIVE ASSY. (INC. 2, 5)
-
20602-960 SPROCKET, DRIVE, INNERSPROCKET, DRIVE, INNER
-
30602-961 DRIVESHAFTDRIVESHAFT
-
40120-247 BUSHING, DRIVEBUSHING, DRIVE
-
50602-993 SPROCKET, DRIVE, OUTERSPROCKET, DRIVE, OUTER
-
60602-198 PLATE, FLANGEPLATE, FLANGE
-
78011-132 BOLT, CARRIAGEBOLT, CARRIAGE
-
88040-426 NUT, LOCKNUT, LOCK
-
90720-005 ADAPTER, DRIVE (INC. 10)ADAPTER, DRIVE (INC. 10)
-
100104-062 FITTING, GREASEFITTING, GREASE
-
110602-154 CABLE, ADAPTERCABLE, ADAPTER
-
120702-266 SHAFT, DRIVENSHAFT, DRIVEN
-
130602-598 KEYKEY
-
140602-952 HUB, BRAKEHUB, BRAKE
-
150602-951 DISC, BRAKEDISC, BRAKE
-
160623-433 SCREW, CAP, SOCKETSCREW, CAP, SOCKET
-
170123-430 NUT, LOCKNUT, LOCK
-
180648-066 STUB, SHAFTSTUB, SHAFT
-
190101-076 KEYKEY
-
200107-123 BEARING, 1 IN. (W/LOCK COLLAR)BEARING, 1 IN. (W/LOCK COLLAR)
-
210602-892 PLATE, FLANGEPLATE, FLANGE
-
228002-130 SCREW, CAPSCREW, CAP
-
238051-242 WASHER, LOCKWASHER, LOCK
-
240623-118 WASHERWASHER
-
240623-119 WASHERWASHER
-
250726-100 CLUTCH, DRIVENCLUTCH, DRIVEN
-
260123-053 WASHERWASHER
-
270123-694 WASHERWASHER
-
280123-019 WASHERWASHER
-
298002-142 SCREW, CAPSCREW, CAP
-
300602-829 CALIPER, BRAKE ASSY. (INC. 31, 40)CALIPER, BRAKE ASSY. (INC. 31, 40)
-
328005-679 SCREW, CAPSCREW, CAP
-
330602-707 BLEEDER, FITTINGBLEEDER, FITTING
-
340702-229 PAD SET, BRAKE (INC. 35)PAD SET, BRAKE (INC. 35)
-
350602-706 PIN, RETAININGPIN, RETAINING
-
370602-729 O-RING, HOUSINGO-RING, HOUSING
-
380602-583 O-RINGO-RING
-
390602-708 PISTONPISTON
-
408050-272 WASHERWASHER
-
418002-316 SCREW, CAPSCREW, CAP
-
428051-307 WASHER, LOCKWASHER, LOCK
-
438050-307 WASHERWASHER
-
440107-074 BEARING, 1 IN. (W/LOCK COLLAR)BEARING, 1 IN. (W/LOCK COLLAR)
