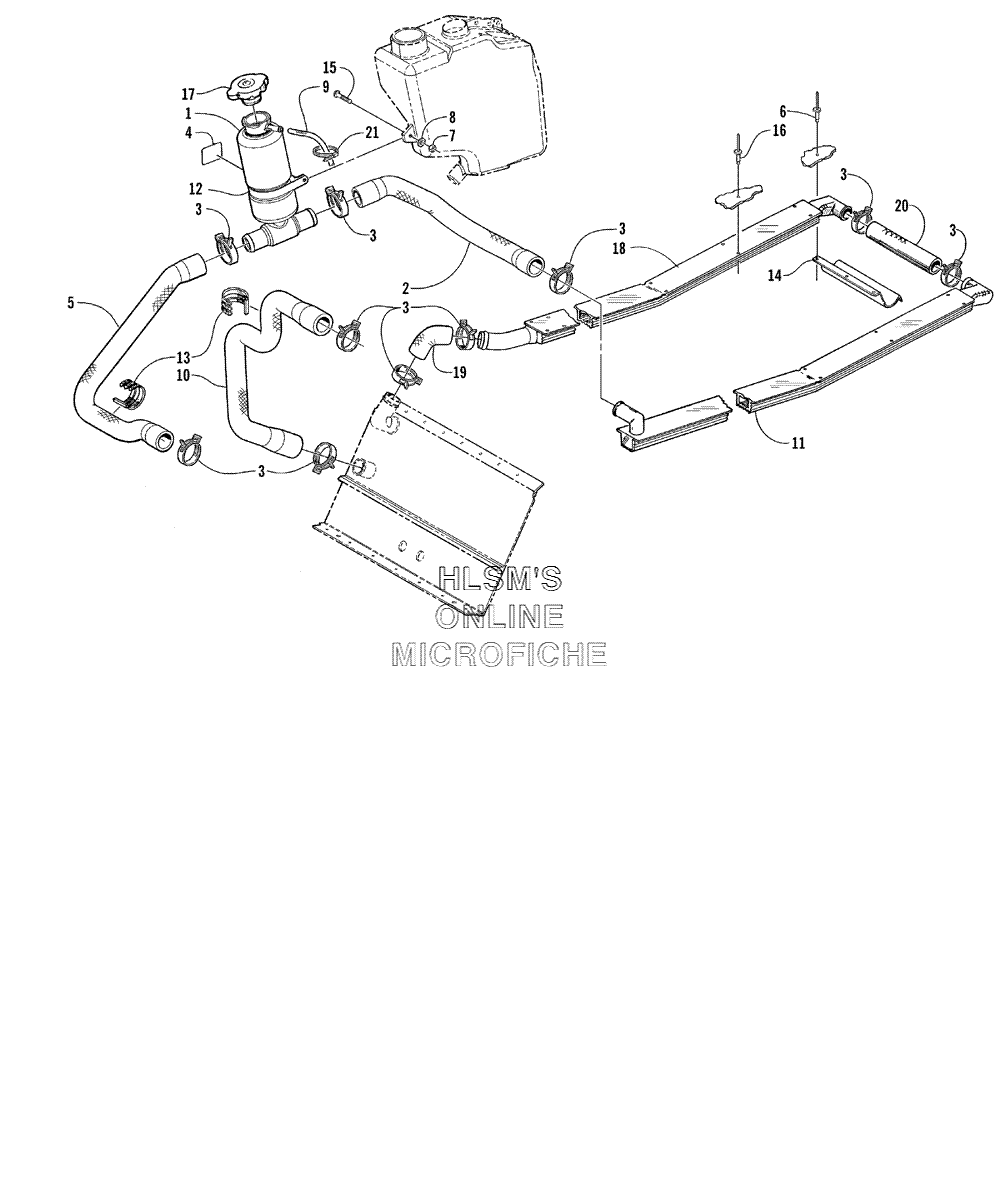

COOLING ASSY. для Arctic Cat ZR 2K - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    1606-396 TANK, COOLANT
    TANK, COOLANT
  • 2
    0610-379 HOSE, COOLANT TANK/LEFT EXCHANGER
    HOSE, COOLANT TANK/LEFT EXCHANGER
  • 3
    0623-736 CLAMP, HOSE
    CLAMP, HOSE
  • 4
    2611-758 DECAL, FILL LEVEL, COOLANT TANK
    DECAL, FILL LEVEL, COOLANT TANK
  • 5
    0610-384 HOSE, ENGINE/COOLANT PUMP
    HOSE, ENGINE/COOLANT PUMP
  • 6
    8060-504 RIVET
    RIVET
  • 7
    8040-366 NUT
    NUT
  • 8
    8050-217 WASHER
    WASHER
  • 9
    0610-015 HOSE (100 FT)
    HOSE (100 FT)
  • 9
    0610-016 HOSE (25 FT)
    HOSE (25 FT)
  • 10
    0610-336 HOSE, COOLANT, ENGINE/FRONT EXCHANGER
    HOSE, COOLANT, ENGINE/FRONT EXCHANGER
  • 11
    0716-921 HEAT EXCHANGER TUBE (LEFT)
    HEAT EXCHANGER TUBE (LEFT)
  • 12
    0623-761 CLAMP
    CLAMP
  • 13
    0623-540 TIE, CABLE, TRIPLE
    TIE, CABLE, TRIPLE
  • 14
    0616-810 GUARD, COOLANT HOSE
    GUARD, COOLANT HOSE
  • 15
    8017-580 SCREW, CAP
    SCREW, CAP
  • 16
    8060-706 RIVET
    RIVET
  • 17
    0606-268 CAP, FILLER NECK
    CAP, FILLER NECK
  • 18
    0716-920 HEAT EXCHANGER TUBE (RIGHT)
    HEAT EXCHANGER TUBE (RIGHT)
  • 19
    0610-244 HOSE, COOLANT (FRONT) EXCHANGER/RIGHT EXCHANGER
    HOSE, COOLANT (FRONT) EXCHANGER/RIGHT EXCHANGER
  • 20
    0610-215 HOSE, COOLANT (REAR)
    HOSE, COOLANT (REAR)
  • 21
    0123-788 TIE, CABLE
    TIE, CABLE
