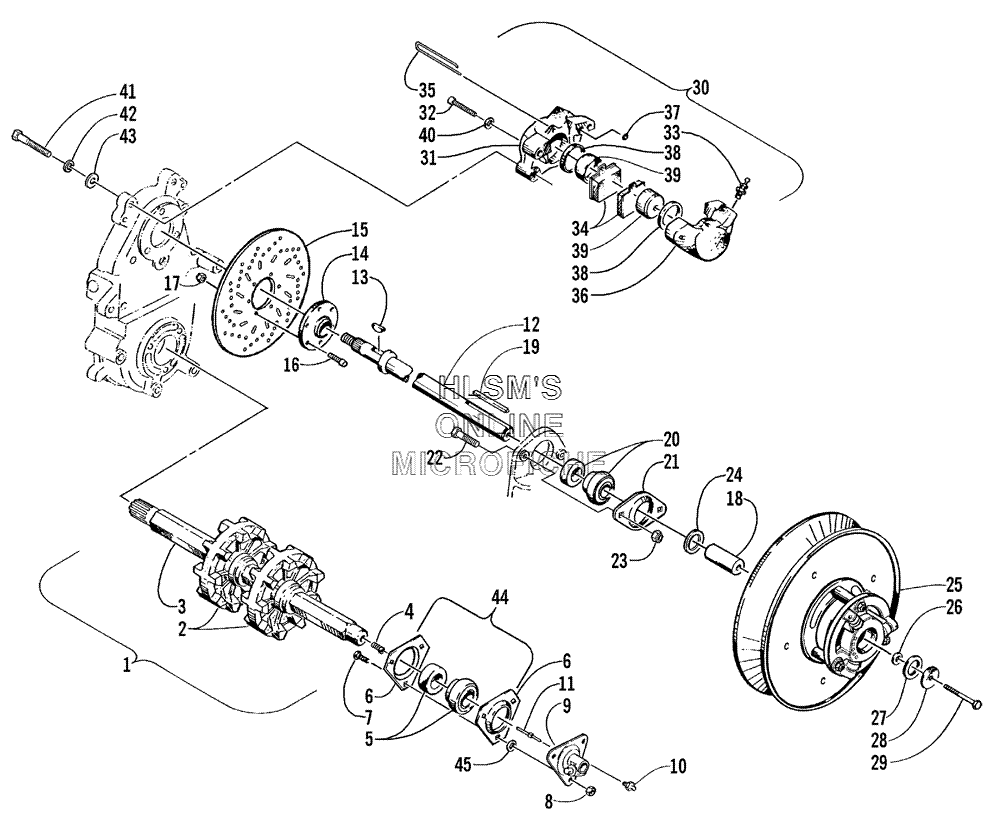

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat ZL 600 - 2000 года выпуска`
-
№АртикулНазвание
-
10728-042 TRACK DRIVE ASSEMBLY (INC. 2, 4)TRACK DRIVE ASSEMBLY (INC. 2, 4)
-
20602-992 . SPROCKET, DRIVE. SPROCKET, DRIVE
-
30602-487 . DRIVESHAFT. DRIVESHAFT
-
40120-247 . BUSHING, DRIVE. BUSHING, DRIVE
-
50107-074 BEARING, 1 IN. W/LOCK COLLARBEARING, 1 IN. W/LOCK COLLAR
-
60602-198 PLATE, FLANGEPLATE, FLANGE
-
78011-132 BOLT, CARRIAGEBOLT, CARRIAGE
-
88040-426 NUT, LOCKNUT, LOCK
-
90720-005 ADAPTER, DRIVE (INC. 10)ADAPTER, DRIVE (INC. 10)
-
100104-062 . FITTING, GREASE. FITTING, GREASE
-
110602-154 CABLE, ADAPTERCABLE, ADAPTER
-
120702-266 SHAFT, DRIVENSHAFT, DRIVEN
-
130602-598 KEYKEY
-
140602-952 HUB, BRAKEHUB, BRAKE
-
150602-951 DISC, BRAKEDISC, BRAKE
-
160623-433 SCREW, CAP, SOCKET HEADSCREW, CAP, SOCKET HEAD
-
170123-430 NUT, LOCKNUT, LOCK
-
180648-066 SHAFT, STUBSHAFT, STUB
-
190101-076 KEYKEY
-
200107-123 BEARING, 1 IN. W/LOCK COLLARBEARING, 1 IN. W/LOCK COLLAR
-
210602-892 FLANGE, BEARINGFLANGE, BEARING
-
228002-130 SCREW, CAPSCREW, CAP
-
238041-426 NUT, LOCKNUT, LOCK
-
240623-118 WASHERWASHER
-
240623-119 WASHERWASHER
-
250726-100 CLUTCH, DRIVENCLUTCH, DRIVEN
-
260123-053 WASHERWASHER
-
270123-578 WASHERWASHER
-
280123-019 WASHERWASHER
-
298002-142 SCREW, CAPSCREW, CAP
-
300602-829 CALIPER, BRAKE ASSEMBLY (INC. 31, 40)CALIPER, BRAKE ASSEMBLY (INC. 31, 40)
-
328005-679 . SCREW, CAP. SCREW, CAP
-
330602-707 . SCREW, BLEED, ASSEMBLY. SCREW, BLEED, ASSEMBLY
-
340702-229 . PAD, BRAKE, SET (INC. 35). PAD, BRAKE, SET (INC. 35)
-
350602-706 PIN, RETAININGPIN, RETAINING
-
370602-729 . O-RING, HOUSING. O-RING, HOUSING
-
380602-583 . O-RING. O-RING
-
390602-708 . PISTON. PISTON
-
408050-272 . WASHER. WASHER
-
418002-316 SCREW, CAPSCREW, CAP
-
428051-307 WASHER, LOCKWASHER, LOCK
-
438050-307 WASHERWASHER
-
440702-363 PLATE, FLANGE, BEARING ASSEMBLY (INC. 5, 7 AND 45)PLATE, FLANGE, BEARING ASSEMBLY (INC. 5, 7 AND 45)
-
450623-810 . RING, SOLDER. RING, SOLDER
