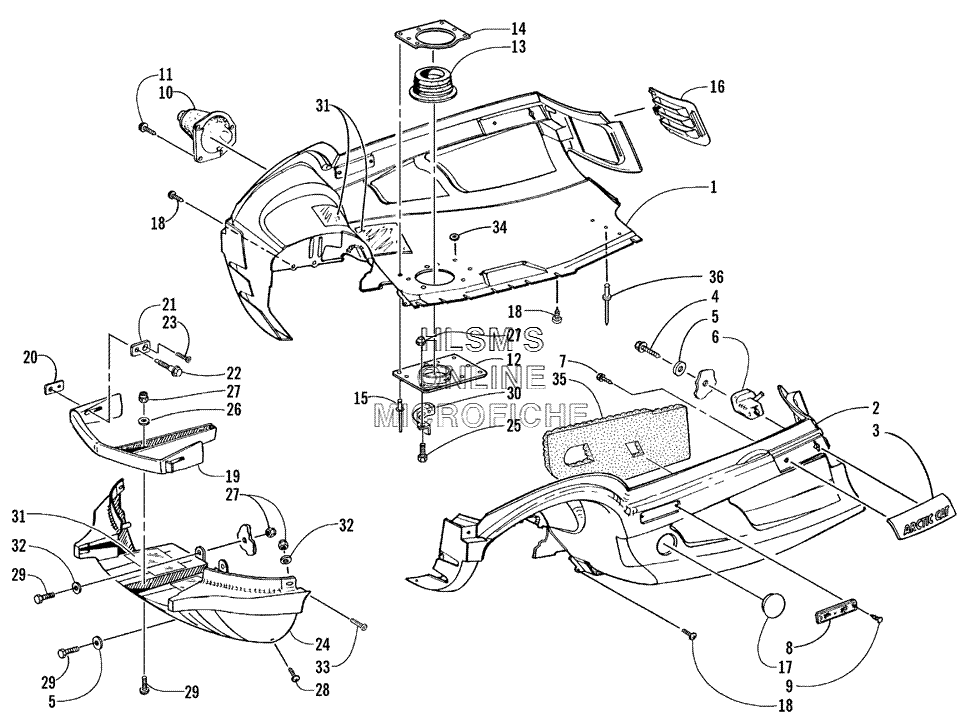

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat ZL 600 - 2000 года выпуска`
-
№АртикулНазвание
-
10716-728 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
20716-729 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
31606-064 BUMPER, BELLY PAN (RIGHT)BUMPER, BELLY PAN (RIGHT)
-
31606-065 BUMPER, BELLY PAN (LEFT)BUMPER, BELLY PAN (LEFT)
-
40623-703 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
50623-184 WASHERWASHER
-
61606-108 SUPPORT, BELLY PAN (RIGHT)SUPPORT, BELLY PAN (RIGHT)
-
61606-109 SUPPORT, BELLY PAN (LEFT)SUPPORT, BELLY PAN (LEFT)
-
70623-301 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
80606-526 REFLECTOR (FRONT) (YELLOW)REFLECTOR (FRONT) (YELLOW)
-
90623-269 CLIP, RETAININGCLIP, RETAINING
-
100605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
100605-333 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
110623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
120612-760 RING, EXHAUST OUTLET (LOWER)RING, EXHAUST OUTLET (LOWER)
-
130612-747 BOOT, EXHAUSTBOOT, EXHAUST
-
140612-761 RING, EXHAUST OUTLET (UPPER)RING, EXHAUST OUTLET (UPPER)
-
158060-508 RIVETRIVET
-
161606-044 LOUVER, AIR, INTAKE (RIGHT)LOUVER, AIR, INTAKE (RIGHT)
-
161606-045 LOUVER, AIR, INTAKE (LEFT)LOUVER, AIR, INTAKE (LEFT)
-
170623-600 PLUG, BELLY PANPLUG, BELLY PAN
-
180623-700 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
191606-144 BUMPER (FRONT)BUMPER (FRONT)
-
201606-623 PLATE, BACKING, HOOD HINGEPLATE, BACKING, HOOD HINGE
-
210607-524 PLATE, BACKING, HOOD HINGEPLATE, BACKING, HOOD HINGE
-
220623-690 SCREW, HOOD HINGESCREW, HOOD HINGE
-
230623-689 SCREW, MACHINESCREW, MACHINE
-
241606-050 NOSEPIECENOSEPIECE
-
258002-040 SCREW, CAPSCREW, CAP
-
268050-212 WASHERWASHER
-
278040-366 NUT, LOCKNUT, LOCK
-
280623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
298002-041 SCREW, CAPSCREW, CAP
-
300612-498 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
310619-206 TAPE, FOILTAPE, FOIL
-
328050-222 WASHERWASHER
-
338017-580 SCREW, MACHINESCREW, MACHINE
-
340123-149 WASHERWASHER
-
350617-303 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
368061-508 RIVETRIVET
