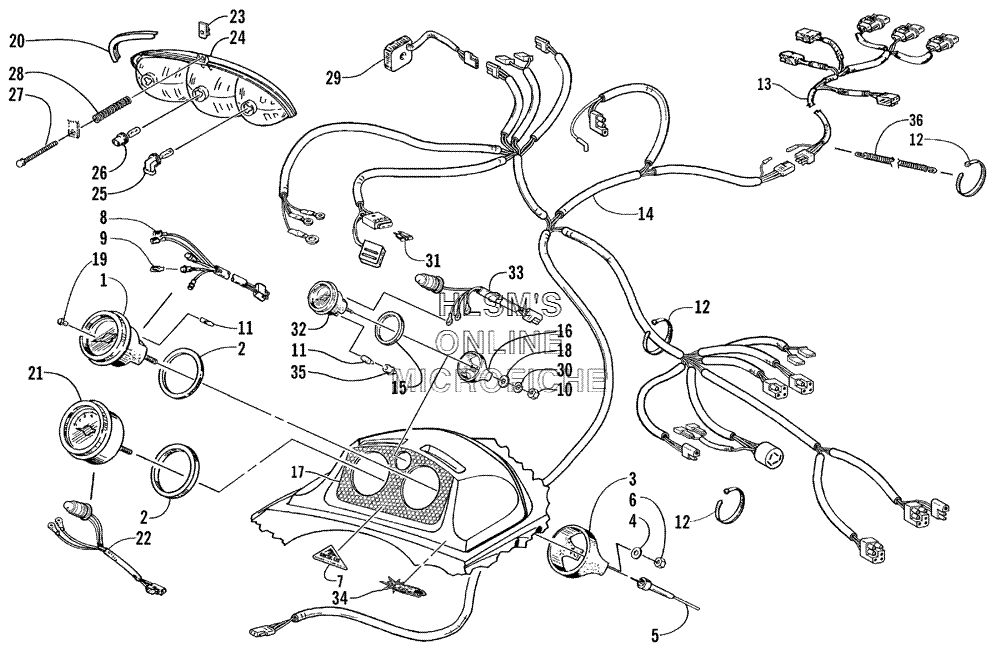

HEADLIGHT- INSTRUMENTS- AND WIRING ASSY. для Arctic Cat ZL 580 EFI ESR - 2000 года выпуска`
-
№АртикулНазвание
-
10620-238 SPEEDOMETER (INC. 8, 11, AND 19)SPEEDOMETER (INC. 8, 11, AND 19)
-
10620-239 SPEEDOMETER (INC. 8, 11, AND 19) (INTERNATIONAL)SPEEDOMETER (INC. 8, 11, AND 19) (INTERNATIONAL)
-
20620-135 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
30620-134 RING, RETAINING BRACKETRING, RETAINING BRACKET
-
48050-212 WASHERWASHER
-
50620-113 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
60623-038 NUT W/WASHERNUT W/WASHER
-
73611-611 DECAL, "MADE IN U.S.A."DECAL, "MADE IN U.S.A."
-
80620-151 HARNESS, BULB, SPEEDOMETERHARNESS, BULB, SPEEDOMETER
-
90620-149 BULB, INNERDICATORBULB, INNERDICATOR
-
100623-839 NUTNUT
-
110230-020 BULB, INSTRUMENTBULB, INSTRUMENT
-
120123-788 TIE, CABLETIE, CABLE
-
130686-588 HARNESS, HOODHARNESS, HOOD
-
140686-579 HARNESS, MAINHARNESS, MAIN
-
150620-139 RING, CUSHIONRING, CUSHION
-
160620-138 BACKCLAMPBACKCLAMP
-
173611-547 DECAL, INSTRUMENT, HOODDECAL, INSTRUMENT, HOOD
-
188050-122 WASHERWASHER
-
190620-073 KNOB, TRIPMETERKNOB, TRIPMETER
-
200617-264 SEAL, HEADLIGHTSEAL, HEADLIGHT
-
210620-237 TACHOMETER (INC. 22)TACHOMETER (INC. 22)
-
220620-215 . HARNESS, TACHOMETER. HARNESS, TACHOMETER
-
230623-757 NUT, UNUT, U
-
240609-250 LENS/REFLECTOR, HEADLIGHTLENS/REFLECTOR, HEADLIGHT
-
250609-251 BULB, HEADLIGHT, HIGH BEAMBULB, HEADLIGHT, HIGH BEAM
-
260609-252 BULB, HEADLIGHT, LOW BEAMBULB, HEADLIGHT, LOW BEAM
-
270623-467 SCREW, THUMBSCREW, THUMB
-
280623-360 SPRING, ADJUSTERSPRING, ADJUSTER
-
290630-105 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
308051-122 WASHER, LOCKWASHER, LOCK
-
310630-100 FUSE, 7 1/2 AMPFUSE, 7 1/2 AMP
-
320620-240 FUEL GAUGE (INC. 11, 33, AND 35)FUEL GAUGE (INC. 11, 33, AND 35)
-
330620-218 . HARNESS. HARNESS
-
343611-581 DECAL, "ESR"DECAL, "ESR"
-
350620-106 SOCKET, INSTRUMENT BULBSOCKET, INSTRUMENT BULB
-
360623-199 SPRING, EXTENSIONSPRING, EXTENSION
