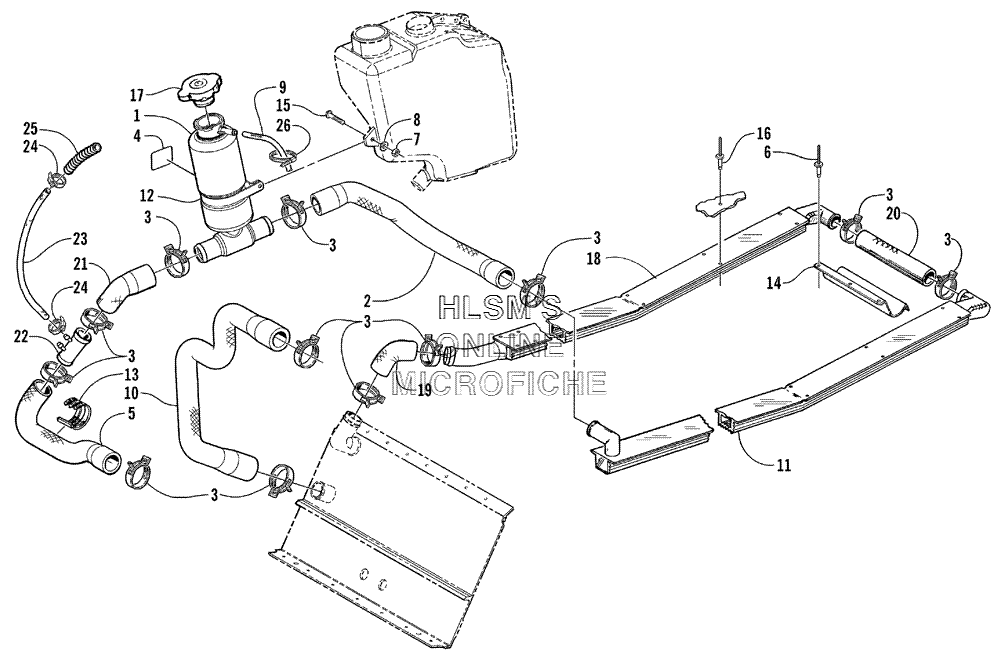

COOLING ASSY. для Arctic Cat ZL 580 EFI ESR - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    1606-396 TANK, COOLANT
    TANK, COOLANT
  • 2
    0610-379 HOSE, COOLANT TANK/ LEFT HEAT EXCHANGER
    HOSE, COOLANT TANK/ LEFT HEAT EXCHANGER
  • 3
    0623-736 CLAMP, HOSE
    CLAMP, HOSE
  • 4
    2611-758 DECAL, FILL LEVEL, COOLANT TANK
    DECAL, FILL LEVEL, COOLANT TANK
  • 5
    0610-381 HOSE, COOLANT, ENGINE/T, FITTING
    HOSE, COOLANT, ENGINE/T, FITTING
  • 6
    8060-504 RIVET
    RIVET
  • 7
    8040-366 NUT, LOCK
    NUT, LOCK
  • 8
    8050-217 WASHER
    WASHER
  • 9
    0610-010 HOSE (25 FT)
    HOSE (25 FT)
  • 10
    0610-336 HOSE, COOLANT, THERMOSTAT/ FRONT HEAT EXCHANGER
    HOSE, COOLANT, THERMOSTAT/ FRONT HEAT EXCHANGER
  • 11
    0716-921 HEAT EXCHANGER TUBE (LEFT)
    HEAT EXCHANGER TUBE (LEFT)
  • 12
    0623-761 CLAMP, COOLANT TANK
    CLAMP, COOLANT TANK
  • 13
    0623-540 TIE, CABLE, TRIPLE
    TIE, CABLE, TRIPLE
  • 14
    0616-810 GUARD, COOLANT HOSE
    GUARD, COOLANT HOSE
  • 15
    8017-580 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    8060-706 RIVET
    RIVET
  • 17
    0606-268 CAP, FILLER NECK
    CAP, FILLER NECK
  • 18
    0716-920 HEAT EXCHANGER TUBE (RIGHT)
    HEAT EXCHANGER TUBE (RIGHT)
  • 19
    0610-244 HOSE, COOLANT HEAT EXCHANGER (FRONT/RIGHT HEAT EXCHANGER)
    HOSE, COOLANT HEAT EXCHANGER (FRONT/RIGHT HEAT EXCHANGER)
  • 20
    0610-215 HOSE, COOLANT (REAR)
    HOSE, COOLANT (REAR)
  • 21
    0610-192 HOSE, COOLANT, TANK/T, FITTING
    HOSE, COOLANT, TANK/T, FITTING
  • 22
    0616-065 DOUBLE T, FITTING
    DOUBLE T, FITTING
  • 23
    0610-076 HOSE, WATER (10 FT)
    HOSE, WATER (10 FT)
  • 24
    0623-373 CLAMP, HOSE
    CLAMP, HOSE
  • 25
    0716-391 CONDUIT, FLEXIBLE
    CONDUIT, FLEXIBLE
  • 26
    0123-788 TIE, CABLE, 7 IN.
    TIE, CABLE, 7 IN.
