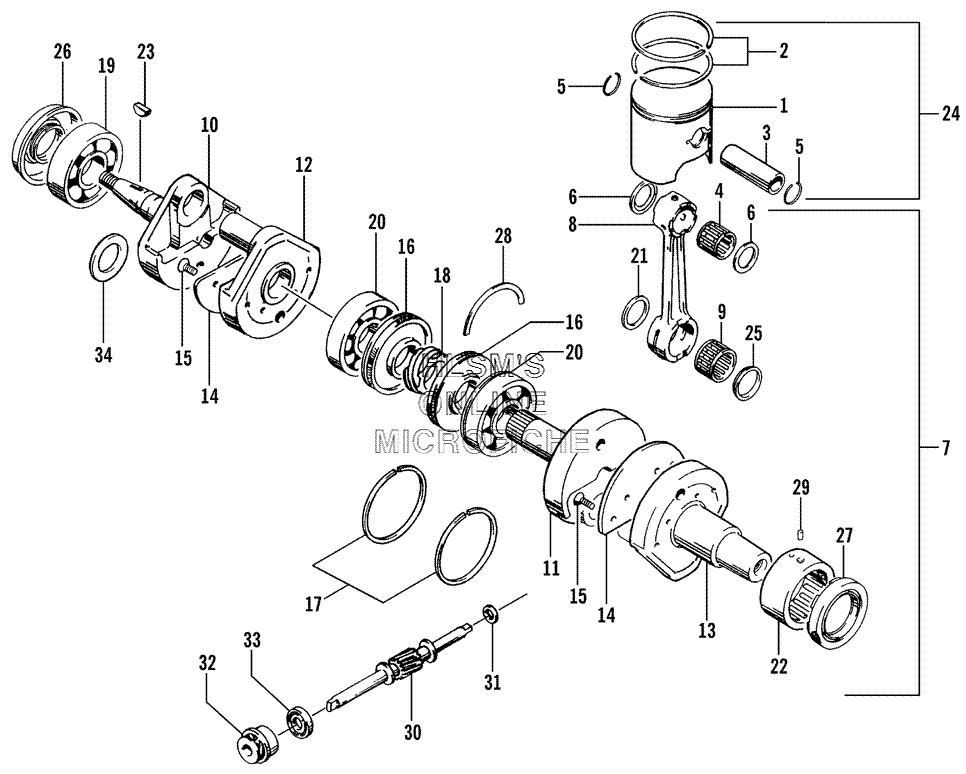

PISTON AND CRANKSHAFT для Arctic Cat ZL 500 (International) - 2000 года выпуска
-
№АртикулНазвание
-
13005-250 PISTONPISTON
-
23005-123 RING SETRING SET
-
33005-111 PIN, PISTONPIN, PISTON
-
43003-433 BEARING, PISTON PINBEARING, PISTON PIN
-
53003-439 CIRCLIP, PISTON PINCIRCLIP, PISTON PIN
-
63005-209 WASHER, PISTON PIN BEARINGWASHER, PISTON PIN BEARING
-
73005-414 CRANKSHAFT ASSEMBLY (INC. 8, 22)CRANKSHAFT ASSEMBLY (INC. 8, 22)
-
83005-112 . ROD, CONNECTING. ROD, CONNECTING
-
93008-423 . BEARING. BEARING
-
103005-416 . CRANKSHAFT (RIGHT). CRANKSHAFT (RIGHT)
-
113005-421 . CRANKSHAFT (CENTER). CRANKSHAFT (CENTER)
-
123005-215 . WHEEL, CRANKSHAFT. WHEEL, CRANKSHAFT
-
133005-217 . CRANKSHAFT (LEFT). CRANKSHAFT (LEFT)
-
143004-961 . BALANCER, CRANKSHAFT. BALANCER, CRANKSHAFT
-
153004-372 . SCREW, MACHINE. SCREW, MACHINE
-
163004-799 . RACE (MIDDLE) SEAL. RACE (MIDDLE) SEAL
-
173004-800 . RING. RING
-
183005-362 . GEAR, OIL PUMP DRIVE. GEAR, OIL PUMP DRIVE
-
193005-412 . BEARING. BEARING
-
203003-164 . BEARING, CRANKSHAFT. BEARING, CRANKSHAFT
-
213003-782 . WASHER. WASHER
-
223003-805 . BEARING, CRANK (LEFT). BEARING, CRANK (LEFT)
-
233004-540 KEYKEY
-
243005-173 PISTON ASSEMBLY (INC. 1, 2, AND 5)PISTON ASSEMBLY (INC. 1, 2, AND 5)
-
253003-933 WASHER, CRANK PINWASHER, CRANK PIN
-
263005-188 SEAL, OIL (RIGHT)SEAL, OIL (RIGHT)
-
273003-759 SEAL, OIL (LEFT)SEAL, OIL (LEFT)
-
283003-216 C, RING, CRANKSHAFTC, RING, CRANKSHAFT
-
293003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
303005-319 GEAR, OIL PUMP DRIVENGEAR, OIL PUMP DRIVEN
-
313005-049 SHIM, OIL PUMP SHAFTSHIM, OIL PUMP SHAFT
-
323402-360 SEAL, MECHANICAL WATER PUMPSEAL, MECHANICAL WATER PUMP
-
333004-760 SEAL, WATER/OIL PUMPSEAL, WATER/OIL PUMP
-
343008-501 WASHERWASHER
