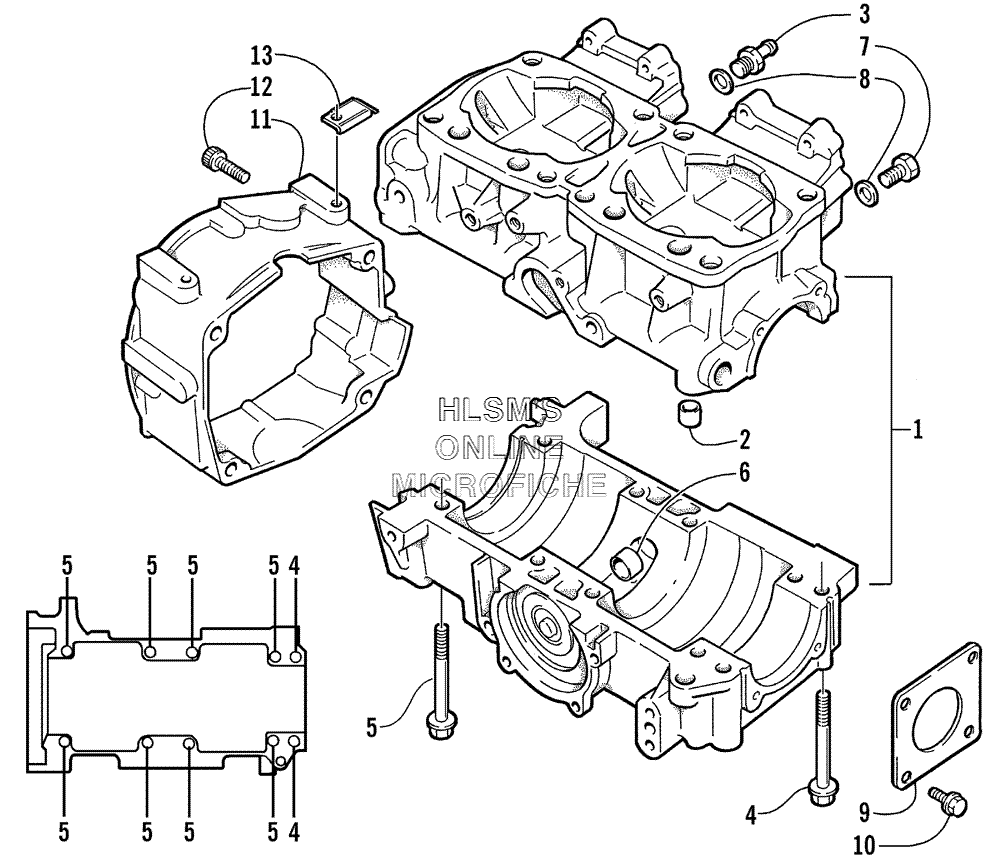

CRANKCASE ASSEMBLY для Arctic Cat ZL 500 (International) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    3005-413 CRANKCASE ASSEMBLY (INC. 5, 6 AND 9)
    CRANKCASE ASSEMBLY (INC. 5, 6 AND 9)
  • 2
    3005-206 PIN, DOWEL
    PIN, DOWEL
  • 3
    3002-040 UNION, HOSE
    UNION, HOSE
  • 4
    3005-410 SCREW, CAP
    SCREW, CAP
  • 5
    3005-411 BOLT
    BOLT
  • 6
    3003-647 BUSHING, OIL PUMP SHAFT
    BUSHING, OIL PUMP SHAFT
  • 7
    3002-028 PLUG, CRANKCASE
    PLUG, CRANKCASE
  • 8
    3002-276 GASKET
    GASKET
  • 9
    3004-775 PLATE, OIL SEAL
    PLATE, OIL SEAL
  • 10
    3004-377 BOLT, OIL SEAL PLATE
    BOLT, OIL SEAL PLATE
  • 11
    3005-109 CASE, MAGNETO
    CASE, MAGNETO
  • 12
    3004-502 BOLT, MAGNETO CASE
    BOLT, MAGNETO CASE
  • 13
    0608-117 BRACKET, GROUND WIRE
    BRACKET, GROUND WIRE
